SAXSdb — 5kbv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glutamate receptor 2

Rattus norvegicus

UniProt P19491

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	{[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRIA2_RAT
Isoform	P19491-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–817； UniProt 25–847 Author chain B； PDBConstruct 1–817； UniProt 25–847 Author chain C； PDBConstruct 1–817； UniProt 25–847 Author chain D； PDBConstruct 1–817； UniProt 25–847

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5kbv
Deposition date deposition_date	2016-06-03
Structure title title	Cryo-EM structure of GluA2 bound to antagonist ZK200775 at 6.8 Angstrom resolution
Keywords keywords	Cryo-EM, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5kbv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5kbv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

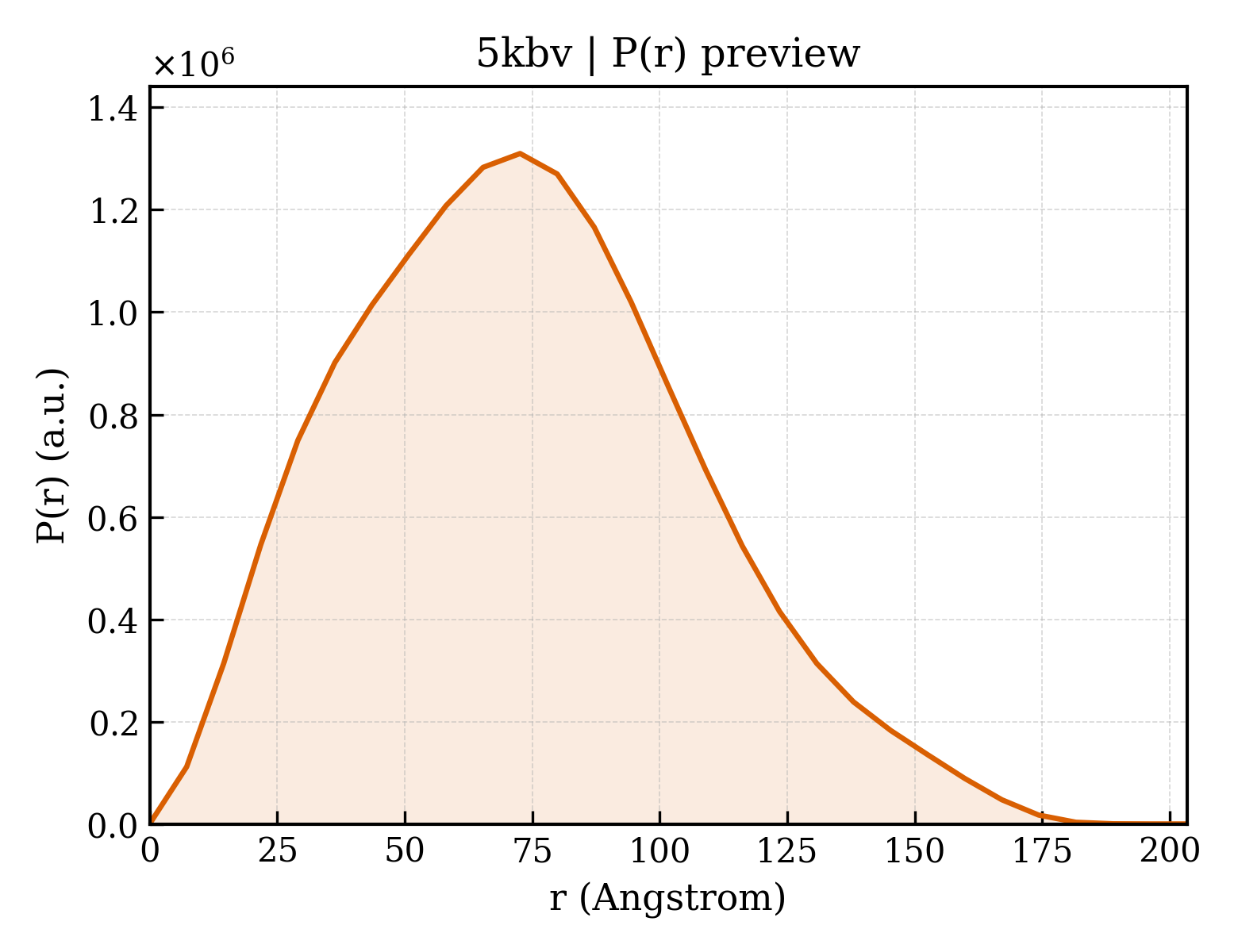

5kbv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	57.04 Å
Rg (electron density)	57.47 Å
Total Rg	57.38 Å
Atom count	22637
Residues	3119
Excluded volume	401980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5kbv__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Glutamate receptor 2
Molecular weight formula_weight	92252.3 kDa
Mutation mutation	N241E, V382L,G384E, N385D, V758L
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	22637

NSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGAEVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVLTEDDTSGLEQKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLGTPVNLAVLKLSEQGLLDKLKNKWWYDKGECGAKDSGSKEKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKGLVPR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	{[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid
Molecular weight formula_weight	409.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	6.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	33152

Cryo-EM structure of GluA2 bound to antagonist ZK200775 at 6.8 Angstrom resolution
