9qg1
Natively purified Rubrerythrin 16-mer from the anaerobic extremophile P. furiosus

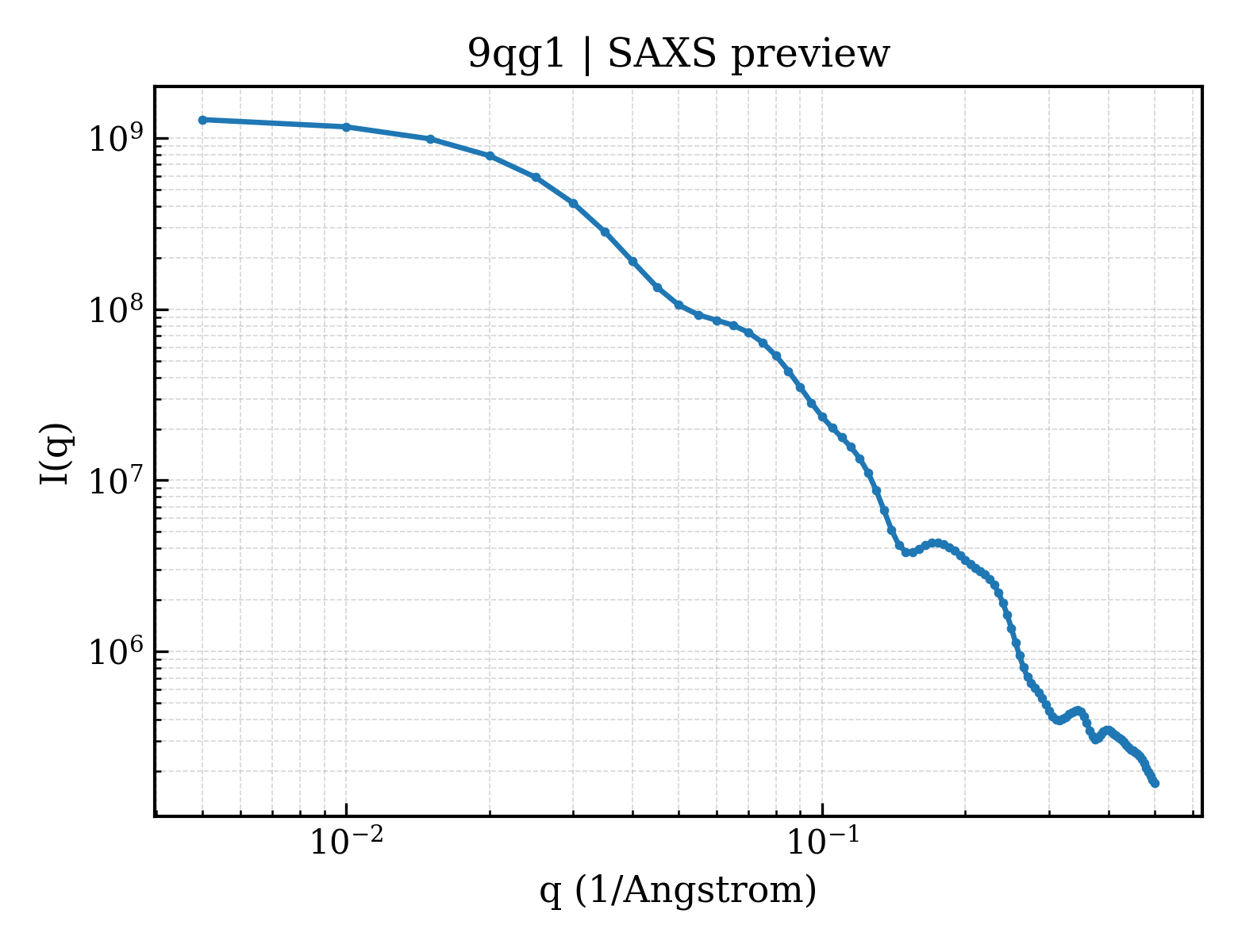

SAXS Profile

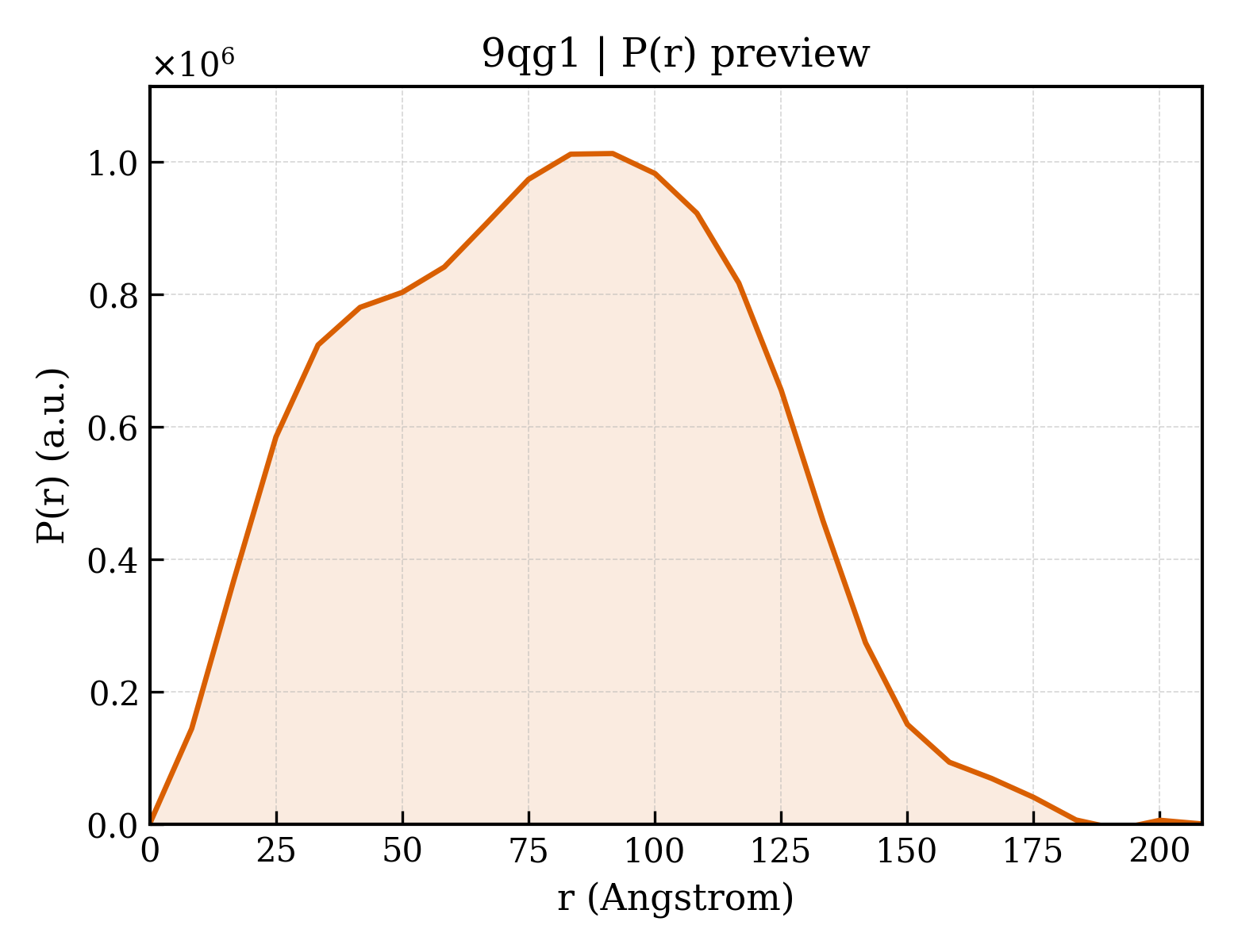

P(r) Distribution
1. Structure Basics
| entry_id | 9qg1 |
| deposition_date | 2025-03-13 |
| last_revision | 2025-07-16 |
| title | Natively purified Rubrerythrin 16-mer from the anaerobic extremophile P. furiosus |
| keywords | Metalloprotein, oxidotic stress response, ferritin-like, rubredoxin domain., OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 62.21 Å |
| rg_electron | 62.13 Å |
| i0 | 1320900000.00 |
| molecular_weight | 314340.0 kDa |
| excluded_volume | 395750 ų |
| envelope_volume | 621420 ų |
| shell_volume | 83127 ų |
| envelope_diameter | 195.1 Å |
| shell_rg | 65.22 Å |
| envelope_rg | 59.21 Å |
| shape_rg | 62.14 Å |
| total_rg | 62.17 Å |
| total_atoms | 21968 |
| n_residues | 2736 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 208.5 Å |
| rg_real | 62.10 Å |
| rg_real_error | 1.85 Å |
| i0_real | 1.3210e+09 |
| i0_real_error | 2.8450e+07 |
| rg_reciprocal | 62.25 Å |
| i0_reciprocal | 1321000000.0000 |
| total_estimate | 0.8097 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 91.7 Å |
| skewness | 0.081 |
| kurtosis | -0.695 |
| angular_range | — – 0.1250 Å−1 |
| current_alpha | 0.0008 |
| highest_alpha | 43850000.0000 |
| n_real_points | 26 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
