9qh7

NorQ in complex with NorD VWA domain steep staircase subset 1 from Paracoccus denitrificans

Method: ELECTRON MICROSCOPY D_max: 115.7 Å Quality: GOOD

SAXS Profile

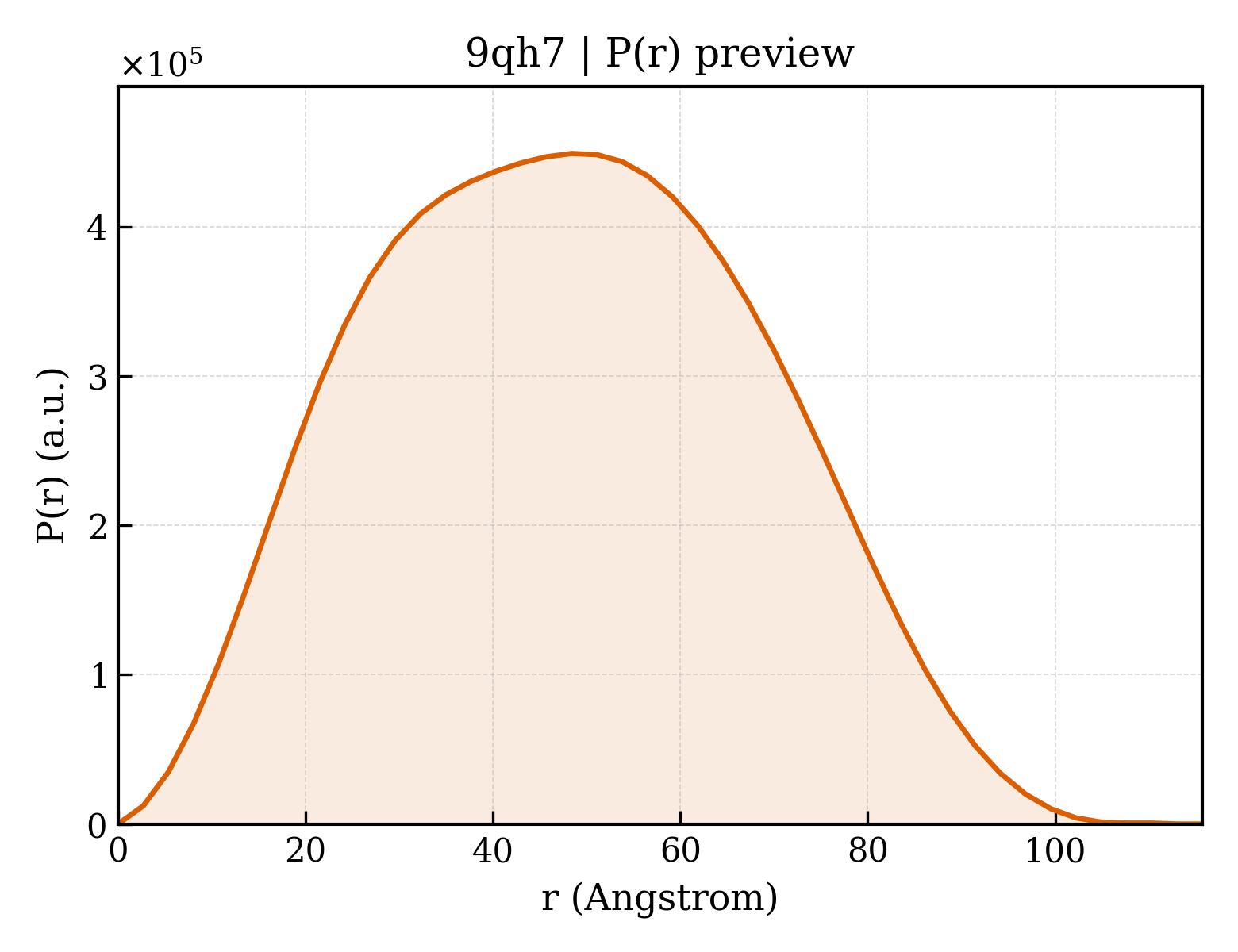

P(r) Distribution

▼

1. Structure Basics

entry_id	9qh7
deposition_date	2025-03-14
title	NorQ in complex with NorD VWA domain steep staircase subset 1 from Paracoccus denitrificans
keywords	AAA+ Protein, MoxR, VWA domain, Nitric Oxide Reductase, CHAPERONE; CHAPERONE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.91 Å
rg_electron	36.23 Å
i0	331080000.00
molecular_weight	144740.0 kDa
excluded_volume	180170 Å³
envelope_volume	240420 Å³
shell_volume	53997 Å³
envelope_diameter	117.7 Å
shell_rg	44.13 Å
envelope_rg	35.29 Å
shape_rg	36.24 Å
total_rg	36.70 Å
total_atoms	10180
n_residues	1408
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	115.7 Å
rg_real	36.75 Å
rg_real_error	0.82 Å
i0_real	3.3110e+08
i0_real_error	5.4910e+06
rg_reciprocal	36.85 Å
i0_reciprocal	331100000.0000
total_estimate	0.8343
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	48.4 Å
skewness	0.106
kurtosis	-0.698
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	146600000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Protein NorQ
formula_weight	29450.7 kDa
mutation	E109Q
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	10180

MNAHVKTQGNGAVDAPFYLPQGDEVAVFEAAAANDLPVLLKGPTGCGKTRFVAHMAARLGRPLYTVACHDDLSAADLIGRYLLKGGETVWTDGPLTRAVREGAICYLDQVVEARKDVTVVLHPLTDDRRILPIDRTGEEIEAAPGFMLVASYNPGYQNILKTLKPSTRQRFVAMEFDFPEPAREVEIVARESGLDRDRTLGLVRLAGKIRGLKGQDLEEGVSTRLVVYAASLTRRGMNLDRAIEAAMIEPLTDDAEVKRGLRDLAAAIFG

Source

organism	Paracoccus denitrificans
ncbi_taxonomy_id	266
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	5

Entity 3 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	3

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.90 Å
resolution_method	—
num_particles	264861
