SAXSdb — 9qix

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

A0A2W6Z6R8

Brevundimonas sp.

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	1,2-ETHANEDIOL × 17 DI(HYDROXYETHYL)ETHER × 1 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 CHLORIDE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A2W6Z6R8_9CAUL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–139； UniProt 1–132 Author chain B； PDBConstruct 8–139； UniProt 1–132

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qix
Deposition date deposition_date	2025-03-17
Structure title title	Protein with novel 3_1 knotted solenoid fold
Keywords keywords	3_1 Knot, Novel Fold, Solenoid, Brevundimonas sp., UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qix__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qix__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

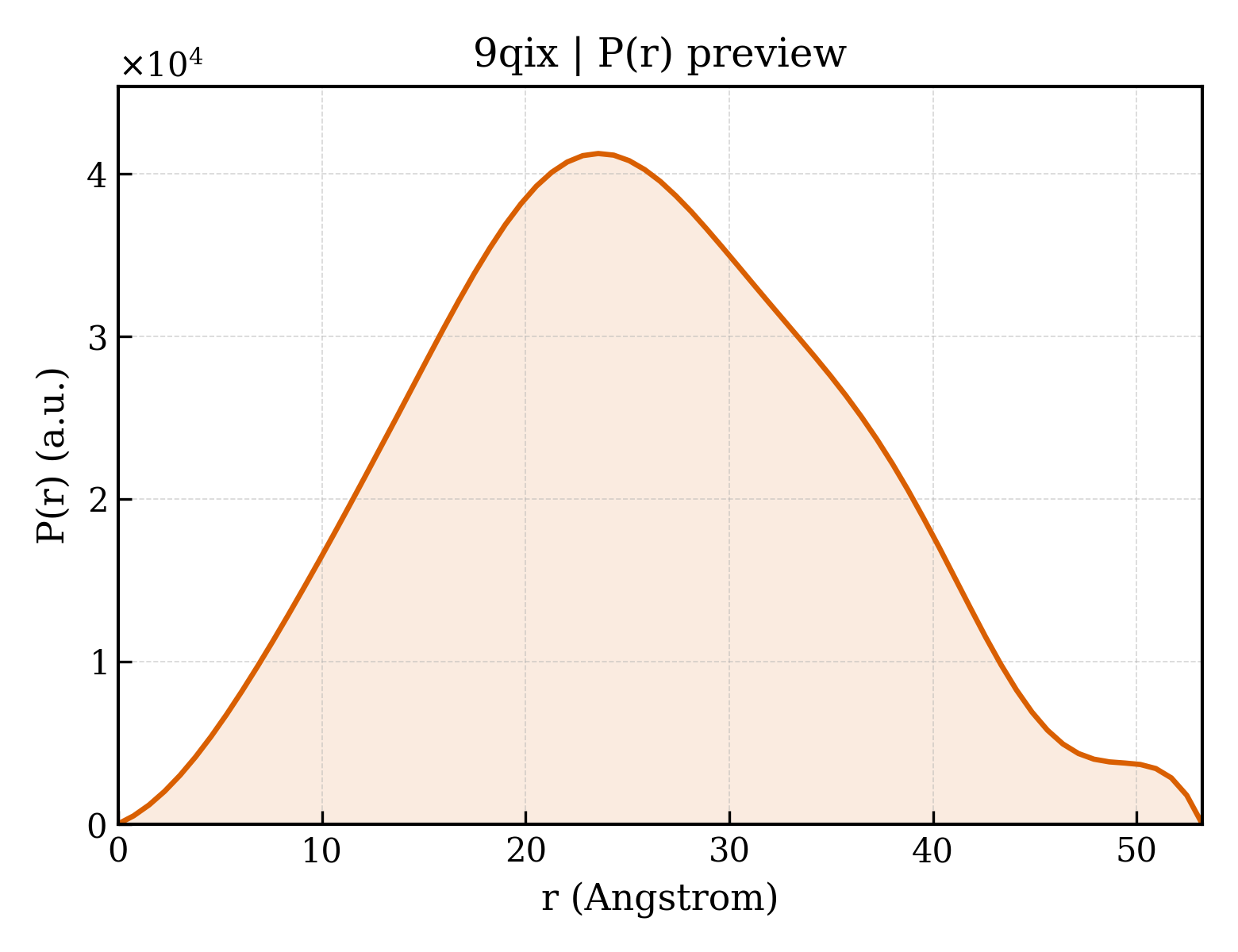

9qix__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.46 Å
Rg (electron density)	19.34 Å
Total Rg	20.30 Å
Atom count	4138
Residues	262
Excluded volume	37051 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qix__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	A0A2W6Z6R8
Molecular weight formula_weight	14884.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4554

QGIDPFTMKSILPINRPLTDAPDLNATTFENVDIILYELFTAAAAKGVPLIEGRTFRGCRFQGPAIVLASTGVTFSDTNFGESRGGIANLLLRPVGDKAIGTIPMRDCHFIGCEFYGVGFTGPESFIAEVSTLTDKPKA

Source Source

Source organism organism	Brevundimonas sp.
NCBI taxonomy ID ncbi_taxonomy_id	1871086
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	17

Entity 3 Entity 3 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	287

▶

Unit-cell length a length_a	133.390 Å
Unit-cell length b length_b	133.390 Å
Unit-cell length c length_c	53.380 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	hexagonal

Resolution resolution	1.660 Å
Low-resolution limit resolution_low	32.040 Å
R factor r_factor	0.1566
R_work r_work	0.1559
R_free r_free	0.1802
