9qn4

Fe(II)-2-oxoglutarate-dependent pseudomonal iron uptake factor C in complex with 2-oxoglutarate (Fe)

Method: X-RAY DIFFRACTION D_max: 102.8 Å Quality: GOOD

SAXS Profile

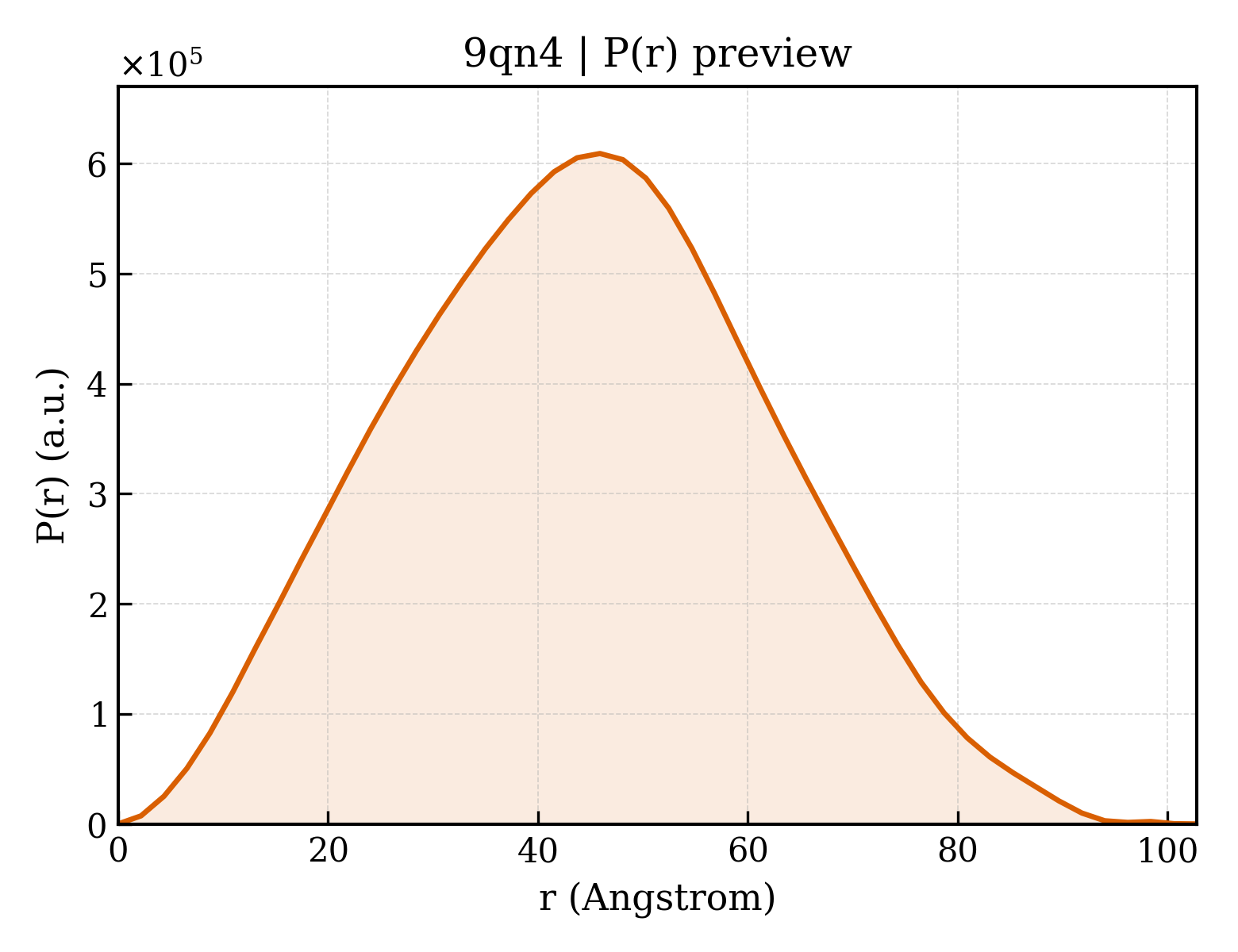

P(r) Distribution

▼

1. Structure Basics

entry_id	9qn4
deposition_date	2025-03-24
last_revision	2026-04-08
title	Fe(II)-2-oxoglutarate-dependent pseudomonal iron uptake factor C in complex with 2-oxoglutarate (Fe)
keywords	2-oxoglutrate, Iron transport, siderophore antibiotics, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	33.92 Å
rg_electron	32.85 Å
i0	348680000.00
molecular_weight	149810.0 kDa
excluded_volume	187120 Å³
envelope_volume	230530 Å³
shell_volume	56167 Å³
envelope_diameter	106.1 Å
shell_rg	41.43 Å
envelope_rg	32.70 Å
shape_rg	32.88 Å
total_rg	33.37 Å
total_atoms	10575
n_residues	1293
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	102.8 Å
rg_real	33.72 Å
rg_real_error	0.58 Å
i0_real	3.4870e+08
i0_real_error	5.2090e+06
rg_reciprocal	33.85 Å
i0_reciprocal	348700000.0000
total_estimate	0.8978
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	45.9 Å
skewness	0.093
kurtosis	-0.472
angular_range	— – 0.2350 Å⁻¹
current_alpha	0.0000
highest_alpha	172600000.0000
n_real_points	48
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.936

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	PKHD-type hydroxylase PiuC
formula_weight	26291.5 kDa
ec_number	1.14.11.-
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	11397

GGSGGGGGGSSGLLHIPAIFTAEEVSRIRAALEQAEWADGKATAGYQSAKAKHNLQLPQDHPLAREIGEAMLQRLWNHPLFMSAALPLKVFPPLFNCYTGGGSFDFHIDNAVRDVHGGRERVRTDLSSTLFFSDPEDYDGGELVIQDTYGLQQVKLPAGDLVLYPGTSLHKVNPVTRGARYASFFWTQSLVREDSQRTLLFEMDQSIQRLTRDVPDHPSLIRLTGTYHNLLRRWSEL

Source

organism	Pseudomonas aeruginosa
ncbi_taxonomy_id	287
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	6

Entity 3 non-polymer

description	2-OXOGLUTARIC ACID
formula_weight	146.1 kDa
src_method	syn
entity_count	12

Entity 4 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	DI(HYDROXYETHYL)ETHER
formula_weight	106.1 kDa
src_method	syn
entity_count	3

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	790

▶

6. Citations (1)

▶

length_a	80.605 Å
length_b	80.113 Å
length_c	88.798 Å
angle_alpha	63.12 °
angle_beta	62.94 °
angle_gamma	59.76 °
z_pdb	6

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	1.850 Å
resolution_low	44.000 Å
r_factor	0.2277
r_work	0.2268
r_free	0.2435
