9qna

RAD51 filament in complex with magnesium and ATP

Method: ELECTRON MICROSCOPY D_max: 155.4 Å Quality: GOOD

SAXS Profile

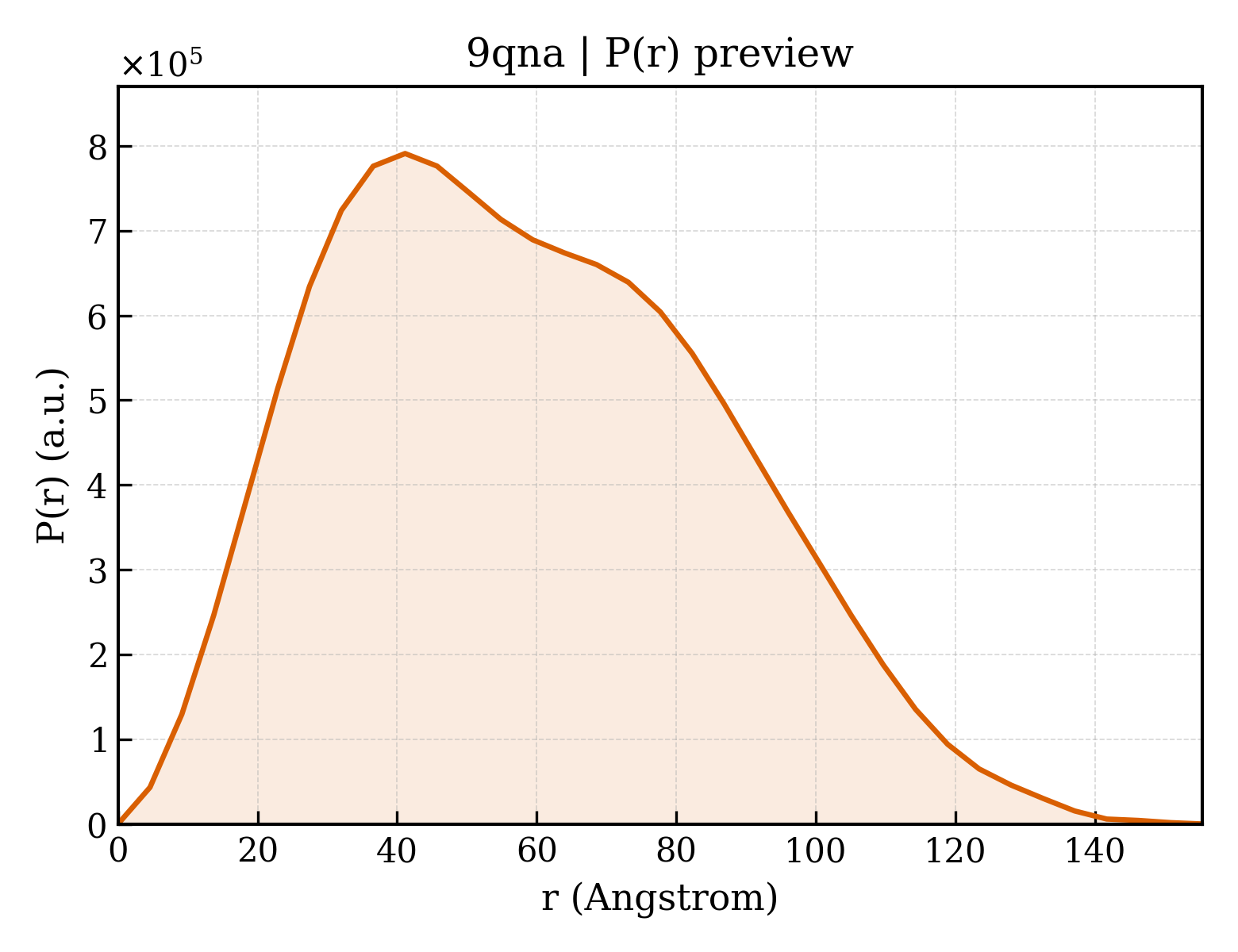

P(r) Distribution

▼

1. Structure Basics

entry_id	9qna
deposition_date	2025-03-24
title	RAD51 filament in complex with magnesium and ATP
keywords	RAD51 recombinase, RAD51AP1, filament modulation, homologous recombination, nucleotide hydrolysis, DNA BINDING PROTEIN; DNA BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.73 Å
rg_electron	45.78 Å
i0	731015000.00
molecular_weight	213850.0 kDa
excluded_volume	263890 Å³
envelope_volume	368640 Å³
shell_volume	66514 Å³
envelope_diameter	163.3 Å
shell_rg	50.87 Å
envelope_rg	45.29 Å
shape_rg	45.79 Å
total_rg	45.95 Å
total_atoms	14931
n_residues	1885
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	155.4 Å
rg_real	45.86 Å
rg_real_error	1.70 Å
i0_real	7.3100e+08
i0_real_error	1.3950e+07
rg_reciprocal	45.74 Å
i0_reciprocal	730900000.0000
total_estimate	0.8645
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.1 Å
skewness	0.344
kurtosis	-0.542
angular_range	— – 0.1700 Å⁻¹
current_alpha	0.0000
highest_alpha	322300000.0000
n_real_points	35
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.788

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	DNA repair protein RAD51 homolog 1
formula_weight	37009.1 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,C,E,G,I,K
atom_count	14931

MAMQMQLEANADTSVEEESFGPQPISRLEQCGINANDVKKLEEAGFHTVEAVAYAPKKELINIKGISEAKADKILAEAAKLVPMGFTTATEFHQRRSEIIQITTGSKELDKLLQGGIETGSITEMFGEFRTGKTQICHTLAVTCQLPIDRGGGEGKAMYIDTEGTFRPERLLAVAERYGLSGSDVLDNVAYARAFNTDHQTQLLYQASAMMVESRYALLIVDSATALYRTDYSGRGELSARQMHLARFLRMLLRLADEFGVAVVITNQVVAQVDGAAMFAADPKKPIGGNIIAHASTTRLYLRKGRGETRICKIYDSPCLPEAEAMFAINADGVGDAKD

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	DNA
formula_weight	18267.0 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	Z

AACAACAACAACAACAACAACAACAACAACAACAACAACAACAACAACAACAACAACAAC

Entity 3 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	7

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	6

Entity 5 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.260 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.26 Å
resolution_method	—
num_particles	242944

fit	/app/data/saxs_computation/qn/9qna/9qna.fit
pddf	/app/data/pr_computation/qn/9qna/9qna.pr.out
profile	/app/data/saxs_computation/qn/9qna/9qna.dat
