9qpj

Isopenicillin N synthase in complex with Fe and IPN using tr-SSX

Method: X-RAY DIFFRACTION D_max: 74.5 Å Quality: GOOD

SAXS Profile

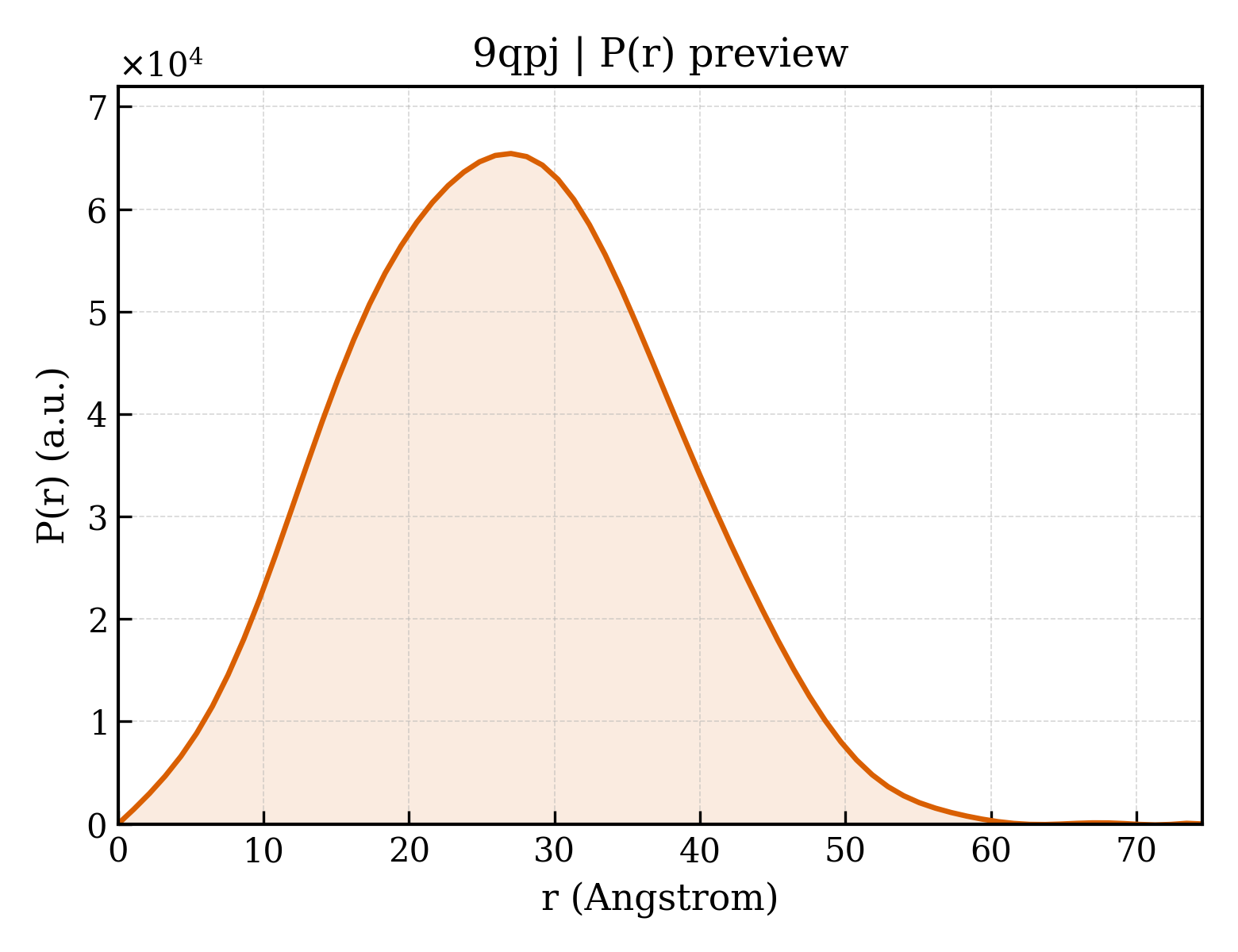

P(r) Distribution

▼

1. Structure Basics

entry_id	9qpj
deposition_date	2025-03-27
last_revision	2026-04-08
title	Isopenicillin N synthase in complex with Fe and IPN using tr-SSX
keywords	Isopenicillin N synthase, IPNS, tr-SFX, XFEL, time-resolved crystallography, ADE tape drive, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.63 Å
rg_electron	19.31 Å
i0	23489700.00
molecular_weight	36929.0 kDa
excluded_volume	46008 Å³
envelope_volume	52875 Å³
shell_volume	22356 Å³
envelope_diameter	66.7 Å
shell_rg	26.24 Å
envelope_rg	19.61 Å
shape_rg	19.31 Å
total_rg	20.22 Å
total_atoms	2614
n_residues	329
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	74.5 Å
rg_real	20.50 Å
rg_real_error	0.58 Å
i0_real	2.3490e+07
i0_real_error	3.2380e+05
rg_reciprocal	20.52 Å
i0_reciprocal	23490000.0000
total_estimate	0.7613
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.0 Å
skewness	0.141
kurtosis	-0.422
angular_range	— – 0.3850 Å⁻¹
current_alpha	0.0000
highest_alpha	6578000.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.633; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Isopenicillin N synthase
formula_weight	37563.8 kDa
ec_number	1.21.3.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2758

MGSVSKANVPKIDVSPLFGDDQAAKMRVAQQIDAASRDTGFFYAVNHGINVQRLSQKTKEFHMSITPEEKWDLAIRAYNKEHQDQVRAGYYLSIPGKKAVESFCYLNPNFTPDHPRIQAKTPTHEVNVWPDETKHPGFQDFAEQYYWDVFGLSSALLKGYALALGKEENFFARHFKPDDTLASVVLIRYPYLDPYPEAAIKTAADGTKLSFEWHEDVSLITVLYQSNVQNLQVETAAGYQDIEADDTGYLINCGSYMAHLTNNYYKAPIHRVKWVNAERQSLPFFVNLGYDSVIDPFDPREPNGKSDREPLSYGDYLQNGLVSLINKNGQT

Source

organism	Aspergillus nidulans FGSC A4
ncbi_taxonomy_id	227321
host_organism	Escherichia coli

Entity 2 non-polymer

description	FE (III) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	ISOPENICILLIN N
formula_weight	359.4 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	96

▶

6. Citations (1)

▶

length_a	41.915 Å
length_b	75.236 Å
length_c	101.841 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	1.900 Å
resolution_low	60.510 Å
r_factor	0.2064
r_work	0.2036
r_free	0.2379
