1. Structure Basics

entry_id	9qps
deposition_date	2025-03-28
title	Single particle cryo-EM structure of MdtF V610F
keywords	multidrug, pump, anaerobic, lipid, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.48 Å
rg_electron	44.65 Å
i0	1492000000.00
molecular_weight	341970.0 kDa
excluded_volume	436900 Å³
envelope_volume	569650 Å³
shell_volume	100140 Å³
envelope_diameter	144.8 Å
shell_rg	53.92 Å
envelope_rg	44.03 Å
shape_rg	44.67 Å
total_rg	44.93 Å
total_atoms	24003
n_residues	3056
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	145.4 Å
rg_real	45.20 Å
rg_real_error	0.92 Å
i0_real	1.4920e+09
i0_real_error	2.5360e+07
rg_reciprocal	45.47 Å
i0_reciprocal	1492000000.0000
total_estimate	0.8854
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	58.1 Å
skewness	0.151
kurtosis	-0.436
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	305400000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.868; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.923

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Multidrug resistance protein MdtF
formula_weight	113807.9 kDa
mutation	V610F
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	24003

MANYFIDRPVFAWVLAIIMMLAGGLAIMNLPVAQYPQIAPPTITVSATYPGADAQTVEDSVTQVIEQNMNGLDGLMYMSSTSDAAGNASITLTFETGTSPDIAQVQVQNKLQLAMPSLPEAVQQQGISVDKSSSNILMVAAFISDNGSLNQYDIADYVASNIKDPLSRTAGVGSVQLFGSEYAMRIWLDPQKLNKYNLVPSDVISQIKVQNNQISGGQLGGMPQAADQQLNASIIVQTRLQTPEEFGKILLKVQQDGSQVLLRDVARVELGAEDYSTVARYNGKPAAGIAIKLAAGANALDTSRAVKEELNRLSAYFPASLKTVYPYDTTPFIEISIQEVFKTLVEAIILVFLVMYLFLQNFRATIIPTIAVPVVILGTFAILSAVGFTINTLTMFGMVLAIGLLVDDAIVVVENVERVIAEDKLPPKEATHKSMGQIQRALVGIAVVLSAVFMPMAFMSGATGEIYRQFSITLISSMLLSVFVAMSLTPALCATILKAAPEGGHKPNALFARFNTLFEKSTQHYTDSTRSLLRCTGRYMVVYLLICAGMAVLFLRTPTSFLPEEDQGVFMTTAQLPSGATMVNTTKVLQQVTDYYLTKEKDNVQSVFTFGGFGFSGQGQNNGLAFISLKPWSERVGEENSVTAIIQRAMIALSSINKAVVFPFNLPAVAELGTASGFDMELLDNGNLGHEKLTQARNELLSLAAQSPNQVTGVRPNGLEDTPMFKVNVNAAKAEAMGVALSDINQTISTAFGSSYVNDFLNQGRVKKVYVQAGTPFRMLPDNINQWYVRNASGTMAPLSAYSSTEWTYGSPRLERYNGIPSMEILGEAAAGKSTGDAMKFMADLVAKLPAGVGYSWTGLSYQEALSSNQAPALYAISLVVVFLALAALYESWSIPFSVMLVVPLGVVGALLATDLRGLSNDVYFQVGLLTTIGLSAKNAILIVEFAVEMMQKEGKTPIEAIIEAARMRLRPILMTSLAFILGVLPLVISHGAGSGAQNAVGTGVMGGMFAATVLAIYFVPVFFVVVEHLFARFKKAASGENLYFQSLEHHHHHH

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	PHOSPHATIDYLETHANOLAMINE
formula_weight	734.0 kDa
src_method	syn
entity_count	22

Entity 3 non-polymer

description	DODECANE
formula_weight	170.3 kDa
src_method	syn
entity_count	11

▶

6. Citations (2)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.28 Å
resolution_method	—
num_particles	1446003

fit	/app/data/saxs_computation/qp/9qps/9qps.fit
pddf	/app/data/pr_computation/qp/9qps/9qps.pr.out
profile	/app/data/saxs_computation/qp/9qps/9qps.dat

Single particle cryo-EM structure of MdtF V610F

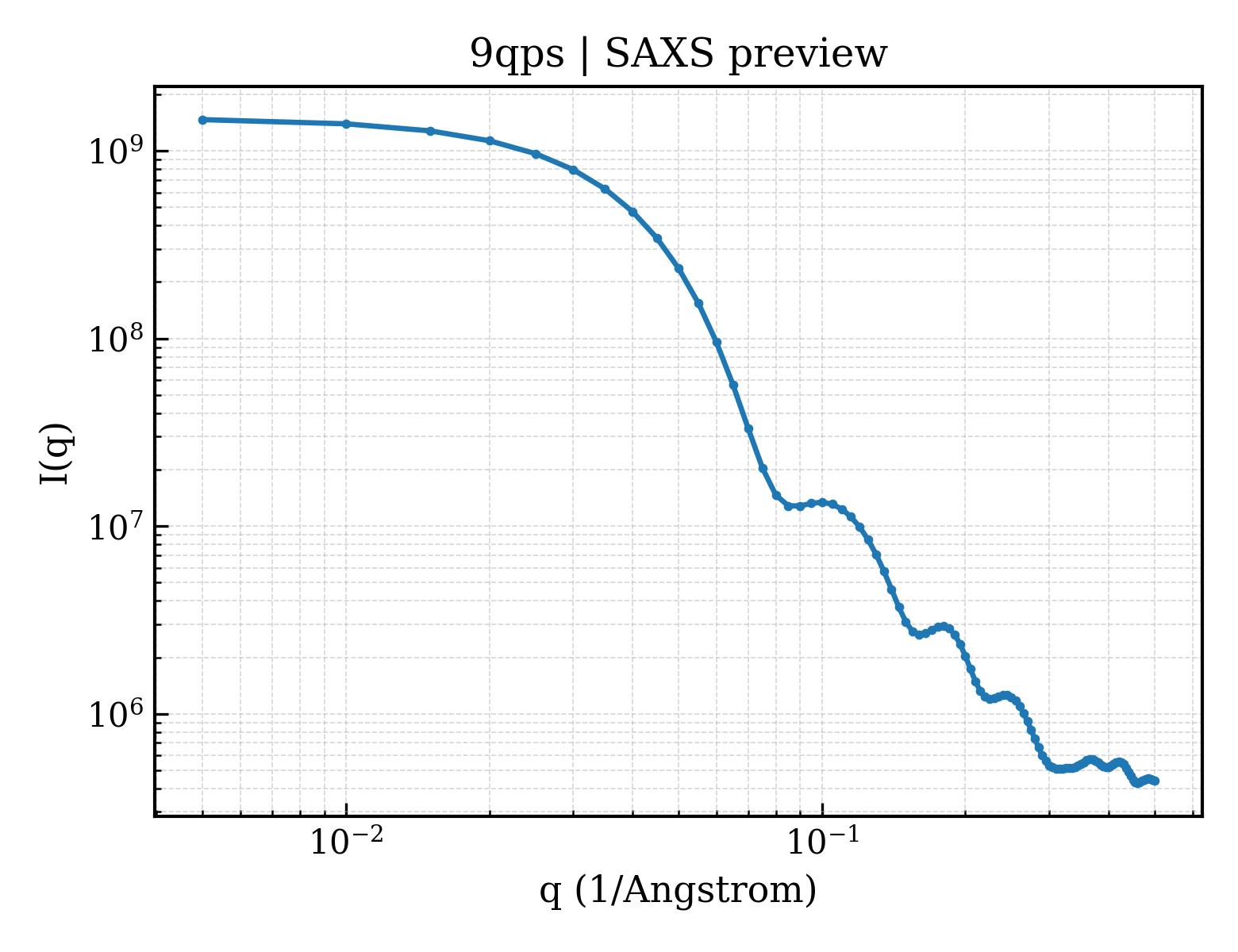

SAXS Profile
