9qr1

Methyl-coenzyme M reductase of ANME-2d Candidatus Methanoperedens sp. BLZ2 from a bioreactor enrichment culture

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Methyl-coenzyme M reductase subunit alpha

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Methyl-coenzyme M reductase subunit beta × 2 （A0A6A2G3Q8） coenzyme-B sulfoethylthiotransferase × 2 （A0A5E4HJB0） SODIUM ION × 1 1,2-ETHANEDIOL × 21 NITRATE ION × 5 FACTOR 430 × 2 Coenzyme B × 2 1-THIOETHANESULFONIC ACID × 2 POTASSIUM ION × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A2FLY3_9EURY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–562； UniProt 1–562 Author chain D； PDBConstruct 1–562； UniProt 1–562

Methyl-coenzyme M reductase subunit beta

OrganismNot specified

UniProt A0A6A2G3Q8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Methyl-coenzyme M reductase subunit alpha × 2 （A0A6A2FLY3） coenzyme-B sulfoethylthiotransferase × 2 （A0A5E4HJB0） SODIUM ION × 1 1,2-ETHANEDIOL × 21 NITRATE ION × 5 FACTOR 430 × 2 Coenzyme B × 2 1-THIOETHANESULFONIC ACID × 2 POTASSIUM ION × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6A2G3Q8_9EURY
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–434； UniProt 1–434 Author chain E； PDBConstruct 1–434； UniProt 1–434

coenzyme-B sulfoethylthiotransferase

OrganismNot specified

UniProt A0A5E4HJB0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Methyl-coenzyme M reductase subunit alpha × 2 （A0A6A2FLY3） Methyl-coenzyme M reductase subunit beta × 2 （A0A6A2G3Q8） SODIUM ION × 1 1,2-ETHANEDIOL × 21 NITRATE ION × 5 FACTOR 430 × 2 Coenzyme B × 2 1-THIOETHANESULFONIC ACID × 2 POTASSIUM ION × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5E4HJB0_UNCAX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–249； UniProt 1–249 Author chain F； PDBConstruct 1–249； UniProt 1–249

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qr1
Deposition date deposition_date	2025-04-02
Structure title title	Methyl-coenzyme M reductase of ANME-2d Candidatus Methanoperedens sp. BLZ2 from a bioreactor enrichment culture
Keywords keywords	;methanotrophy, anaerobic methanotrophic archaea, methane oxidation, ANME, methyl-coenzyme M reductase, MCR, reverse methanogenesis, nickel-dependent enzyme, coenzyme M, coenzyme B, F430 cofactor, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qr1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

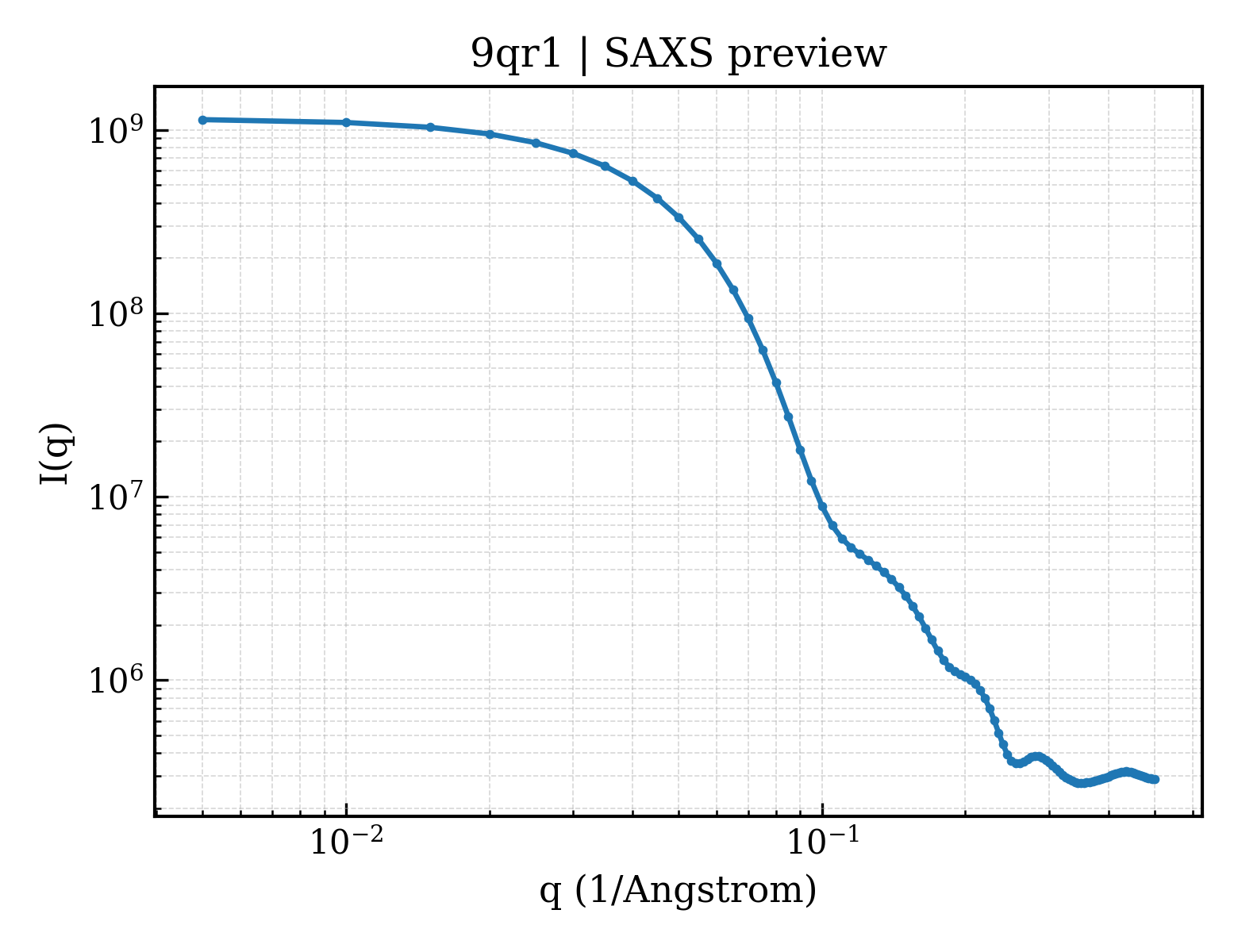

9qr1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9qr1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.03 Å
Rg (electron density)	37.35 Å
Total Rg	37.81 Å
Atom count	37732
Residues	2466
Excluded volume	339380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qr1__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Methyl-coenzyme M reductase subunit alpha
Molecular weight formula_weight	61535.5 kDa
EC 编号 ec_number	2.8.4.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	43033

MAVRFQKAMETKYTKEWGSNKNKGGKITDKKAKYLRLGYQQNPRKVEMAKCGAAITKKRGLQAYDPKLHLAGIPMGQRQLTPYTISGTDIVCDGDDLHFVNNAAMQQEWDDIRRSCVVGLDLAHEVLEKRLGKEVTPETINYYLEVLNHAMPGAAIVQEHMVETHPALVDDCYVKIFTGDETLQDEVDKQFVINIDNEFPANQAKQIKAAVGKTSWQAVHIPTIVTRTEDGPGTSRWMAMQVGMTFISAYHMCAGEAAVGELAFTAKHAGLVEMGDMIPARRARGPNEPGGLSFGHMADICQTNRKGPEDPVNVILQTASAATMLYDQIWLGGYMSGGVGFTMYATPAYTNDIVDDFLYWADEYASKKYGGRGKAKATIDTVKDIATESTLYSLEAYEKYPTTLEDHFGGSQRATVCSIAAGGATALATGHSQAGLSAWYLSMYLHKEAHGRLGFFGYDLQDQCGATNVFSIASDEGCIGECRGANYPNYAMNVGHQGGYTSVVAAAHAGKDAFCVNPLVKVCFADELINFDFADPRGAFGKAALREWDRCAGERAFVIPAK

Entity 2 Entity 2 polymer

Description description	Methyl-coenzyme M reductase subunit beta
Molecular weight formula_weight	45366.7 kDa
EC 编号 ec_number	2.8.4.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MADTIDLYSDRGAKLKSGVDINDISPMRNAAIKSIVTGIKRTAAVDLAGIEKTLATSAIGGKGRKIPGREMKLDIVKNAAAIQKAVTEMVQVDSGDDTVVKALNGGKQLIVQVPSVRIDVAAEYVSSLTCTASAVTQALVSQFNIGMFDAPTVKSAVWGQYPQTLDMVGGNVKSIVEIPQKDEGFGYTLRNVMANHLAAVCKKNAMNTAALCSILENTGVFEMGDAIGNQTRHRLLAFSHQGLNANNMVYGTTKALGKTGTIGSAVHACVEKAIADKVISADKKFASGYTTYKTNDVGKWNAYCAAGTLVATLINCGAQRAPQAVSSVLLYFQDLIEKETSLPGCDFGKVQGAAVGFSFFSHSIYGGGGPGVFNGNHVVTRHSKGLAVPCVAAAVALDAGVQVYSPEKTSGLVGDVFSAVDEFREPIKAVAGAV

Entity 3 Entity 3 polymer

Description description	coenzyme-B sulfoethylthiotransferase
Molecular weight formula_weight	28197.8 kDa
EC 编号 ec_number	2.8.4.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MAYKPQYYPGSTSVAKNRRKFMSDDVEKMRDISDEDLTALLGHRAPGSDYPSTHPPLSEIGEPACPVREVVEPTPGAAAGDRMRYVQFADSMYNGPAVPYWRSYHAAINFRGVDPGTLSGRQVNEMRERDMEEYAKRQSETEITDWGLAGMRGCTVHGXSLRLQEDGVMFDMLDRRRLEGGVIVSDKDQVGVPIDRKVNLGKPMSEAEAAKRTTIYRVDNVAFRSDKEVIEHVQRVWELRTKYGFVPKA

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	21

Entity 6 Entity 6 non-polymer

Description description	NITRATE ION
Molecular weight formula_weight	62.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 7 Entity 7 non-polymer

Description description	FACTOR 430
Molecular weight formula_weight	906.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	Coenzyme B
Molecular weight formula_weight	343.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	1-THIOETHANESULFONIC ACID
Molecular weight formula_weight	142.2 kDa
Source method src_method	nat
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	3419

▶

Unit-cell length a length_a	81.575 Å
Unit-cell length b length_b	189.299 Å
Unit-cell length c length_c	84.109 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.27 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	0.980 Å
Low-resolution limit resolution_low	41.780 Å
R factor r_factor	0.1033
R_work r_work	0.1025
R_free r_free	0.1176

Methyl-coenzyme M reductase of ANME-2d Candidatus Methanoperedens sp. BLZ2 from a bioreactor enrichment culture
