9qr8

Gliadin degrading prolyl endopeptidase Celiacase (neprosin C334V)

Method: X-RAY DIFFRACTION Dmax: 75.0 Å Quality: GOOD

SAXS Profile

SAXS profile for 9qr8

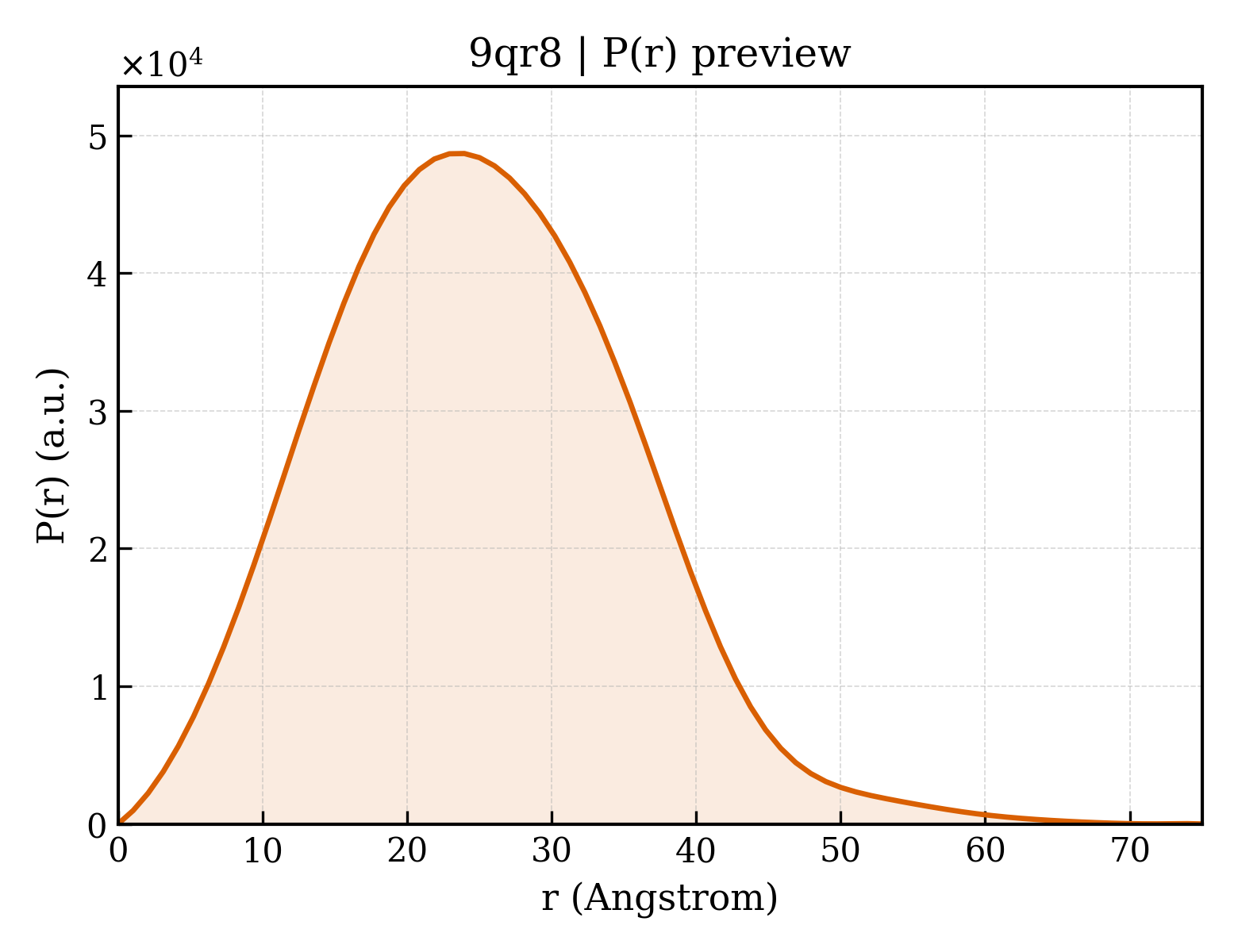

P(r) Distribution

P(r) distribution for 9qr8

1. Structure Basics

entry_id9qr8
deposition_date2025-04-03
titleGliadin degrading prolyl endopeptidase Celiacase (neprosin C334V)
keywordsprotease, prolyl endopeptidase, glutamate-class, HYDROLASE; HYDROLASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier19.18
rg_electron17.82
i016533800.00
molecular_weight29676.0 kDa
excluded_volume36510 ų
envelope_volume40788 ų
shell_volume18869 ų
envelope_diameter74.4
shell_rg24.47
envelope_rg18.63
shape_rg17.80
total_rg18.82
total_atoms2095
n_residues256
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax75.0
rg_real19.12
rg_real_error0.56
i0_real1.6530e+07
i0_real_error2.0790e+05
rg_reciprocal19.13
i0_reciprocal16530000.0000
total_estimate0.7878
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary24.0
skewness0.345
kurtosis0.104
angular_range— – 0.4150 −1
current_alpha0.0000
highest_alpha4067000.0000
n_real_points73
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.455; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 1.000

4. Crystallography & Experiment

5. Entities & Polymer Info (10)

6. Citations (1)

7. Files & Curves (10)
