9qro

HINT1 complexed with GS-441524-MP

Method: X-RAY DIFFRACTION Dmax: 60.0 Å Quality: REASONABLE

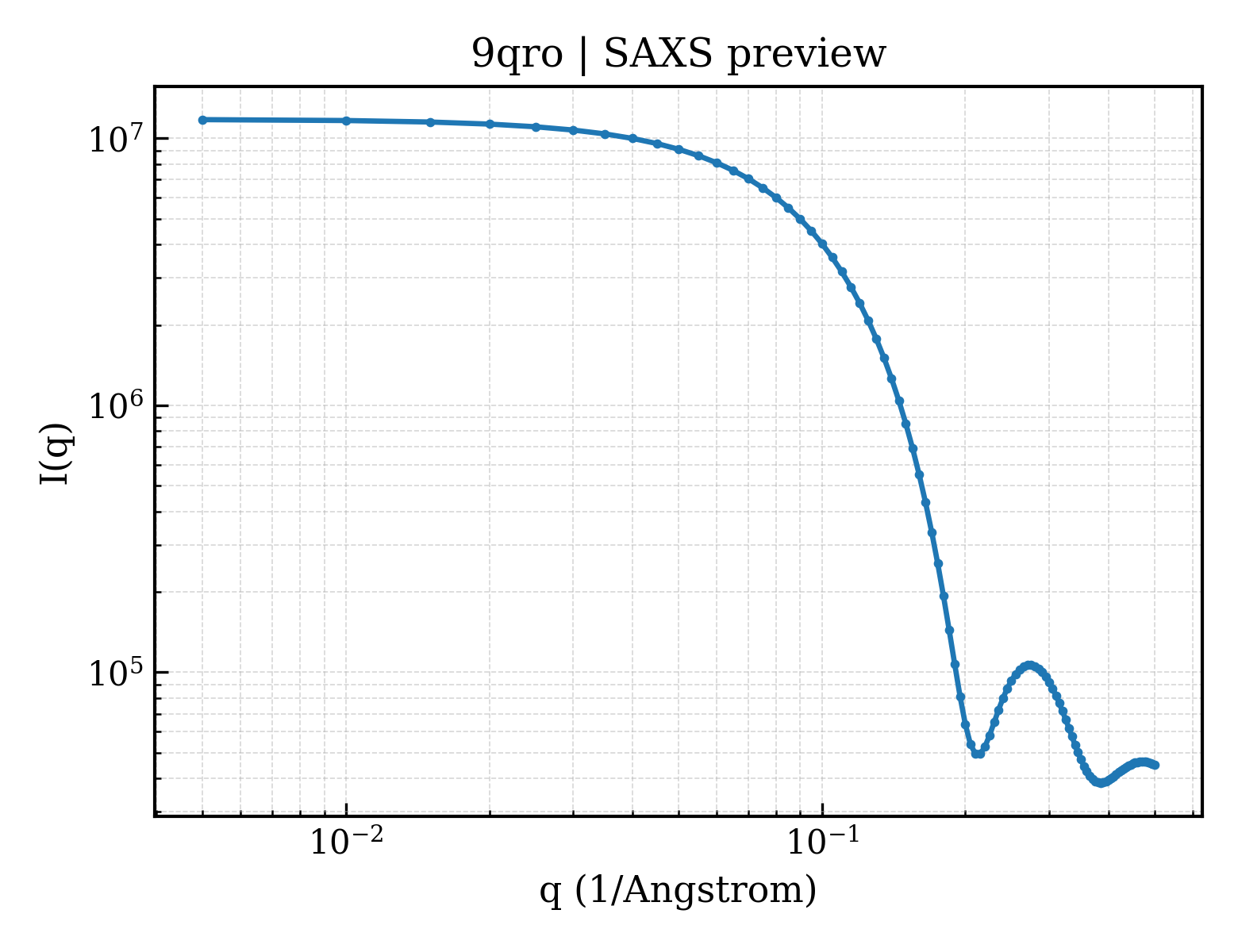

SAXS Profile

SAXS profile for 9qro

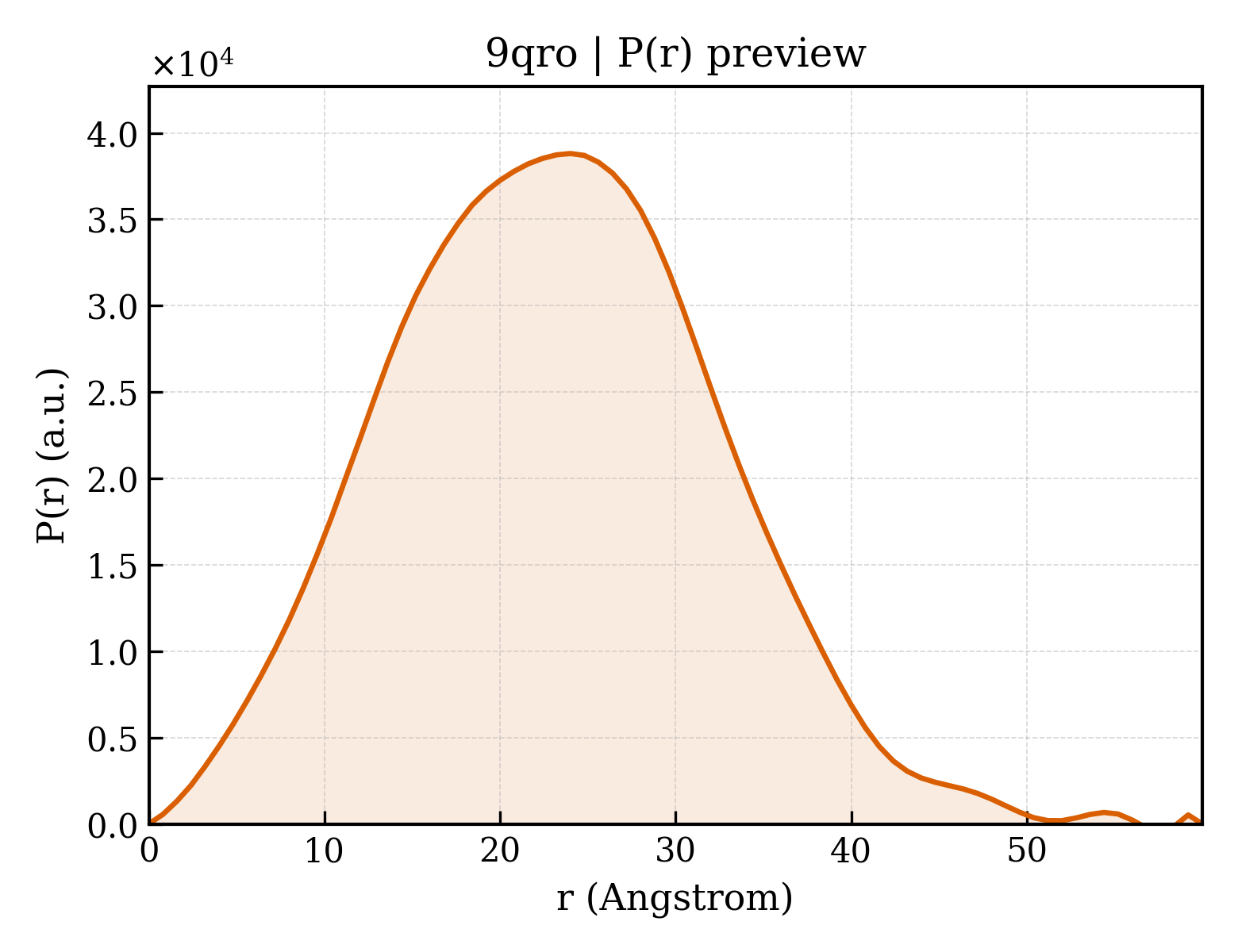

P(r) Distribution

P(r) distribution for 9qro

1. Structure Basics

entry_id9qro
deposition_date2025-04-04
last_revision2026-06-03
titleHINT1 complexed with GS-441524-MP
keywordsComplex, TRANSFERASE; TRANSFERASE
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier17.62
rg_electron16.61
i011774000.00
molecular_weight25455.0 kDa
excluded_volume31809 ų
envelope_volume34899 ų
shell_volume17409 ų
envelope_diameter60.7
shell_rg23.06
envelope_rg16.91
shape_rg16.61
total_rg17.61
total_atoms3562
n_residues226
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax60.0
rg_real17.50
rg_real_error0.36
i0_real1.1770e+07
i0_real_error1.4960e+05
rg_reciprocal17.52
i0_reciprocal11770000.0000
total_estimate0.6093
solution_quality REASONABLE a REASONABLE solution
n_peaks3
r_peak_primary24.0
skewness0.195
kurtosis-0.171
angular_range— – 0.4500 −1
current_alpha0.0000
highest_alpha3642000.0000
n_real_points76
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.686; Stabil: 0.995; Sysdev: 0.291; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (4)

6. Citations (1)

7. Files & Curves (10)
