9qsc

apPol-DNA-nucleotide complex consensus refinement

Method: ELECTRON MICROSCOPY D_max: 99.0 Å Quality: REASONABLE

SAXS Profile

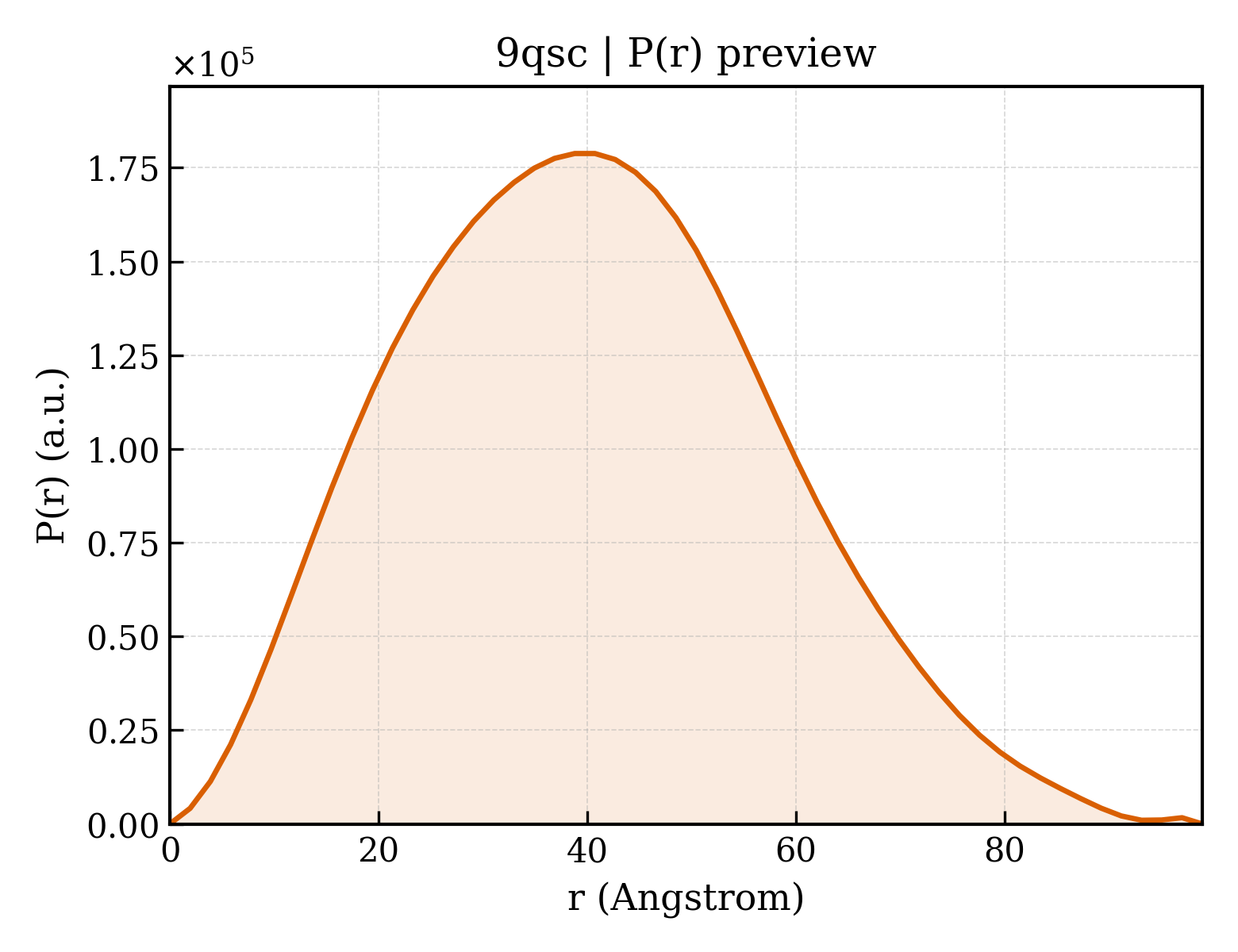

P(r) Distribution

▼

1. Structure Basics

entry_id	9qsc
deposition_date	2025-04-04
last_revision	2025-10-29
title	apPol-DNA-nucleotide complex consensus refinement
keywords	DNA polymerase, REPLICATION; REPLICATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.14 Å
rg_electron	30.26 Å
i0	104927000.00
molecular_weight	79788.0 kDa
excluded_volume	99416 Å³
envelope_volume	132810 Å³
shell_volume	37199 Å³
envelope_diameter	105.5 Å
shell_rg	36.85 Å
envelope_rg	30.03 Å
shape_rg	30.24 Å
total_rg	30.89 Å
total_atoms	5601
n_residues	646
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	99.0 Å
rg_real	31.08 Å
rg_real_error	0.75 Å
i0_real	1.0490e+08
i0_real_error	1.6670e+06
rg_reciprocal	31.11 Å
i0_reciprocal	104900000.0000
total_estimate	0.6976
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	97.0 Å
skewness	0.255
kurtosis	-0.398
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0000
highest_alpha	16490000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.935; Stabil: 1.000; Sysdev: 0.115; Positv: 1.000; Valcen: 0.997; Smooth: 0.917

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Plastid replication-repair enzyme
formula_weight	76473.5 kDa
ec_number	2.7.7.7
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5601

MGSSHHHHHHSQDPENLYFQGDEITKKYIKDNIINVDDNIIKKKDIFKLKNENNEITECAFEYFESKKKFDDDIESRFFIINDNNYNENINLIYKDIKYCGLNIQTTGLEVFDENIRLIQIAVENYPVIIYDMFNINKKDILDGLRKVLENKNIIKIIQNGKFDAKFLLHNNFKIENIFDTYIASKLLDKNKNMYGFKLNNIVEKYLNVILDKQQQNSVWNNSLLNNNQLFYAARDSSCLLKLYKKLKEEIKKENLHIVNDIENKCILPICDMELNGIKVDLENLQKSTNEILNELNIEKDNLKKKLKDENINVNSQQQVLKALQKNNVRDISNKLIENTSDSNLKNFLNHEEIISLRNYRRLYKLYSAFYLKLPLHINTKTNKIHTTFNQLKTFSGRFSSEKPNLQQIPRQKNIREIFIPNDNNIFIIADFKQIELKIAAEITNDEIMLKAYNNNIDLHTLTASIITKKNIPDINKEDRHIAKAINFGLIYGMNYVNLKNYANTYYGLNMSLDQCLYFYNSFFEHYKGIYKWHNQVKQKRALQYSTLSNRKVIFPYFSFTKALNYPVQGTCADILKLALVDLYDNLKDINGKIILCVHDEIIIEVNKKFQEEALKILVQSMENSASYFLKKVKCEVSVKIAENWGSKD

Source

organism	Plasmodium falciparum
common_name	malaria parasite P. falciparum
ncbi_taxonomy_id	5833
host_organism	Escherichia coli

Entity 2 polymer

description	DNA primer strand
formula_weight	7715.0 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

CAGGTGTCAGTCAGCTAGTGCTGAC

Source

organism	DNA molecule
ncbi_taxonomy_id	2853804
host_organism	chemical production metagenome

Entity 3 polymer

description	DNA template strand
formula_weight	11023.1 kDa
src_method	man
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	C

GCTACCGTAGCGTCAGCACTAGCTGACTGACACCTG

Source

organism	DNA molecule
ncbi_taxonomy_id	2853804
host_organism	chemical production metagenome

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.20 Å
resolution_method	—
num_particles	354534

fit	/app/data/saxs_computation/qs/9qsc/9qsc.fit
pddf	/app/data/pr_computation/qs/9qsc/9qsc.pr.out
profile	/app/data/saxs_computation/qs/9qsc/9qsc.dat
