9qte
Simkania negevensis CE-clan virulence factor SnCE1 wildtype
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9qte |
| deposition_date | 2025-04-08 |
| title | Simkania negevensis CE-clan virulence factor SnCE1 wildtype |
| keywords | cysteine protease, CE-clan, Ubl protease, deSUMOylase, SUMO pathway, virulence factor, bacterial virulence, pathogenesis, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.86 Å |
| rg_electron | 27.79 Å |
| i0 | 74717200.00 |
| molecular_weight | 71284.0 kDa |
| excluded_volume | 90505 ų |
| envelope_volume | 111770 ų |
| shell_volume | 33159 ų |
| envelope_diameter | 90.3 Å |
| shell_rg | 35.54 Å |
| envelope_rg | 27.59 Å |
| shape_rg | 27.78 Å |
| total_rg | 28.66 Å |
| total_atoms | 9999 |
| n_residues | 595 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

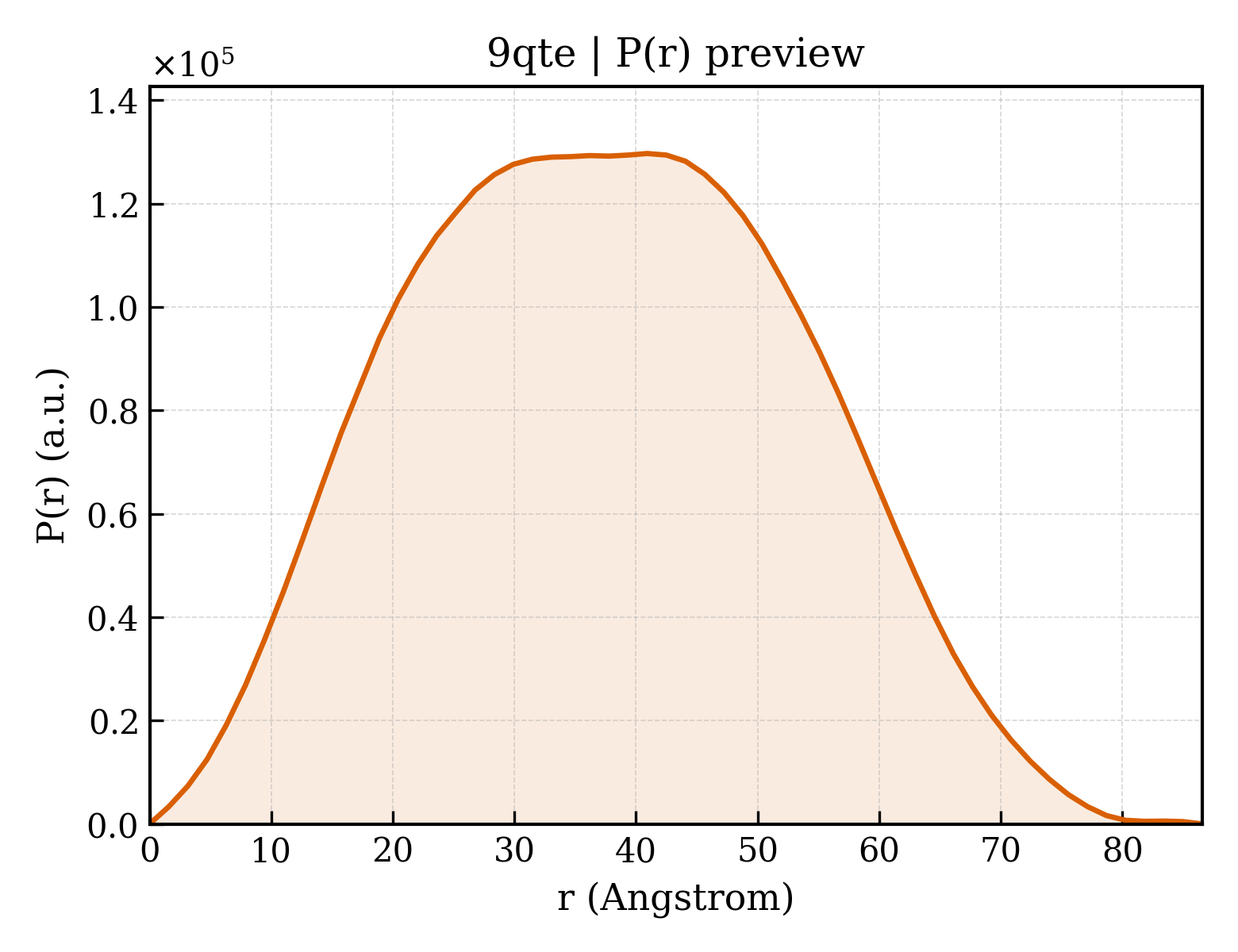

3. P(r) Analysis (GNOM)
| dmax | 86.6 Å |
| rg_real | 28.73 Å |
| rg_real_error | 0.61 Å |
| i0_real | 7.4720e+07 |
| i0_real_error | 1.2090e+06 |
| rg_reciprocal | 28.79 Å |
| i0_reciprocal | 74720000.0000 |
| total_estimate | 0.9149 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 3 |
| r_peak_primary | 40.9 Å |
| skewness | 0.089 |
| kurtosis | -0.672 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 20260000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.974; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.970 |
