SAXSdb — 9qtu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 3 of PAN2-PAN3 deadenylation complex subunit PAN3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	PAN2-PAN3 deadenylation complex catalytic subunit PAN2 × 1 （Q504Q3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAN3_HUMAN
Isoform	Q58A45-3
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–833； UniProt 1–833 Author chain B； PDBConstruct 1–833； UniProt 1–833

PAN2-PAN3 deadenylation complex catalytic subunit PAN2

Homo sapiens

UniProt Q504Q3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Isoform 3 of PAN2-PAN3 deadenylation complex subunit PAN3 × 2 （Q58A45）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PAN2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–1202； UniProt 1–1202

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qtu
Deposition date deposition_date	2025-04-09
Last revision last_revision	2025-12-10
Structure title title	human PAN2-PAN3 deadenylase complex in the apo state
Keywords keywords	complex, mammalian, deadenylase, mRNA poly(A) tail, RNA processing, mRNA, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qtu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9qtu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

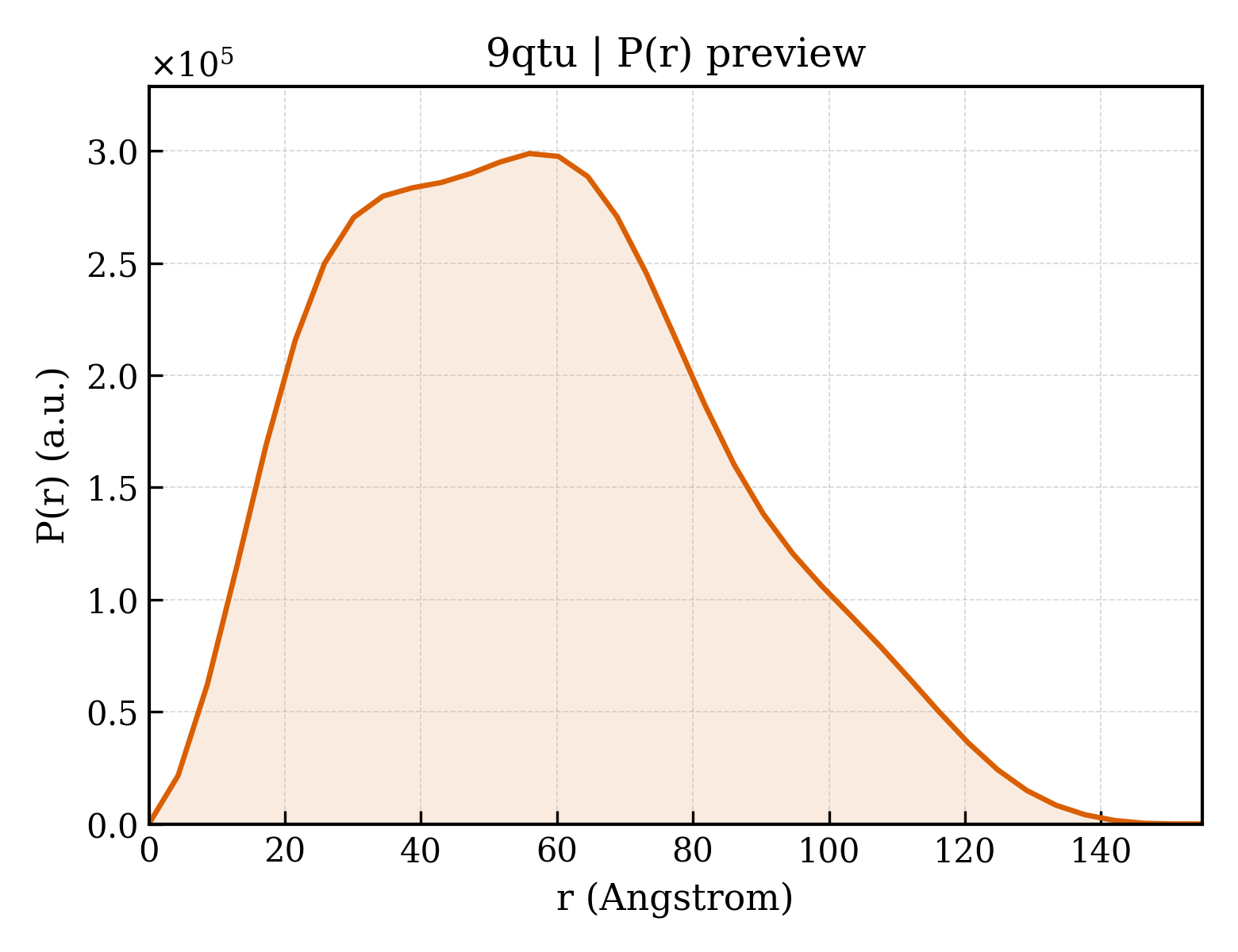

9qtu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.43 Å
Rg (electron density)	44.39 Å
Total Rg	44.53 Å
Atom count	9800
Residues	1237
Excluded volume	174950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qtu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Isoform 3 of PAN2-PAN3 deadenylation complex subunit PAN3
Molecular weight formula_weight	92526.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9800

MNSGGGLPPPSAAASPSSSSLAAAVAVVAPPGVGGVPGGAAVGVKLKYCRYYAKDKTCFYGEECQFLHEDPAAGAAPGLGLHSNSVPLALAGAPVAGFPPGAVAGGGAGPPPGPKKPDLGDPGTGAAAGGGGSSGGLDGPRLAIPGMDGGALTDTSLTDSYFSTSFIGVNGFGSPVETKYPLMQRMTNSSSSPSLLNDSAKPYSAHDPLTSPASSLFNDFGALNISQRRKTPNPTASEFIPKGGSTSRLSNVSQSNMSAFSQVFSHPSMGSPATAGLAPGMSLSAGSSPLHSPKITPHTSPAPRRRSHTPNPASYMVPSSASTSVNNPVSQTPSSGQVIQKETVGGTTYFYTDTTPAPLTGMVFPNYHIYPPTAPHVAYMQPKANAPSFFMADELRQELINRHLITMAQIDQADMPAVPTEVDSYHSLFPLEPLPPPNRIQKSSNFGYITSCYKAVNSKDDLPYCLRRIHGFRLVNTKCMVLVDMWKKIQHSNIVTLREVFTTKAFAEPSLVFAYDFHAGGETMMSRHFNDPNADAYFTKRKWGQHEGPLPRQHAGLLPESLIWAYIVQLSSALRTIHTAGLACRVMDPTKILITGKTRLRVNCVGVFDVLTFDNSQNNNPLALMAQYQQADLISLGKVVLALACNSLAGIQRENLQKAMELVTINYSSDLKNLILYLLTDQNRMRSVNDIMPMIGARFYTQLDAAQMRNDVIEEDLAKEVQNGRLFRLLAKLGTINERPEFQKDPTWSETGDRYLLKLFRDHLFHQVTEAGAPWIDLSHIISCLNKLDAGVPEKISLISRDEKSVLVVTYSDLKRCFENTFQELIAAANGQLSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	PAN2-PAN3 deadenylation complex catalytic subunit PAN2
Molecular weight formula_weight	135523.1 kDa
EC 编号 ec_number	3.1.13.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MNFEGLDPGLAEYAPAMHSALDPVLDAHLNPSLLQNVELDPEGVALEALPVQESVHIMEGVYSELHSVVAEVGVPVSVSHFDLHEEMLWVGSHGGHATSFFGPALERYSSFQVNGSDDIRQIQSLENGILFLTKNNLKYMARGGLIIFDYLLDENEDMHSLLLTDSSTLLVGGLQNHILEIDLNTVQETQKYAVETPGVTIMRQTNRFFFCGHTSGKVSLRDLRTFKVEHEFDAFSGSLSDFDVHGNLLAACGFSSRLTGLACDRFLKVYDLRMMRAITPLQVHVDPAFLRFIPTYTSRLAIISQSGQCQFCEPTGLANPADIFHVNPVGPLLMTFDVSASKQALAFGDSEGCVHLWTDSPEPSFNPYSRETEFALPCLVDSLPPLDWSQDLLPLSLIPVPLTTDTLLSDWPAANSAPAPRRAPPVDAEILRTMKKVGFIGYAPNPRTRLRNQIPYRLKESDSEFDSFSQVTESPVGREEEPHLHMVSKKYRKVTIKYSKLGLEDFDFKHYNKTLFAGLEPHIPNAYCNCMIQVLYFLEPVRCLIQNHLCQKEFCLACELGFLFHMLDLSRGDPCQGNNFLRAFRTIPEASALGLILADSDEASGKGNLARLIQRWNRFILTQLHQDMQELEIPQAYRGAGGSSFCSSGDSVIGQLFSCEMENCSLCRCGSETVRASSTLLFTLSYPDGSKSDKTGKNYDFAQVLKRSICLDQNTQAWCDTCEKYQPTIQTRNIRHLPDILVINCEVNSSKEADFWRMQAEVAFKMAVKKHGGEISKNKEFALADWKELGSPEGVLVCPSIEELKNVWLPFSIRMKMTKNKGLDVCNWTDGDEMQWGPARAEEEHGVYVYDLMATVVHILDSRTGGSLVAHIKVGETYHQRKEGVTHQQWYLFNDFLIEPIDKHEAVQFDMNWKVPAILYYVKRNLNSRYNLNIKNPIEASVLLAEASLARKQRKTHTTFIPLMLNEMPQIGDLVGLDAEFVTLNEEEAELRSDGTKSTIKPSQMSVARITCVRGQGPNEGIPFIDDYISTQEQVVDYLTQYSGIKPGDLDAKISSKHLTTLKSTYLKLRFLIDIGVKFVGHGLQKDFRVINLMVPKDQVLDTVYLFHMPRKRMISLRFLAWYFLDLKIQGETHDSIEDARTALQLYRKYLELSKNGTEPESFHKVLKGLYEKGRKMDWKVPEPEGQTSPKNAAVFSSVLAL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	34171
