SAXSdb — 9quj

▼

1. Structure Basics

entry_id	9quj
deposition_date	2025-04-10
last_revision	2025-10-29
title	apPol-DNA complex (binary 1)
keywords	DNA polymerase, REPLICATION; REPLICATION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	34.24 Å
rg_electron	32.73 Å
i0	132690000.00
molecular_weight	86165.0 kDa
excluded_volume	105560 Å³
envelope_volume	147260 Å³
shell_volume	38720 Å³
envelope_diameter	117.5 Å
shell_rg	38.19 Å
envelope_rg	32.90 Å
shape_rg	32.65 Å
total_rg	33.39 Å
total_atoms	6022
n_residues	667
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	112.1 Å
rg_real	34.25 Å
rg_real_error	0.94 Å
i0_real	1.3270e+08
i0_real_error	2.2220e+06
rg_reciprocal	34.24 Å
i0_reciprocal	132700000.0000
total_estimate	0.8986
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.4 Å
skewness	0.294
kurtosis	-0.485
angular_range	— – 0.2300 Å⁻¹
current_alpha	0.0000
highest_alpha	10970000.0000
n_real_points	47
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.890

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Plastid replication-repair enzyme
formula_weight	76473.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6022

MGSSHHHHHHSQDPENLYFQGDEITKKYIKDNIINVDDNIIKKKDIFKLKNENNEITECAFEYFESKKKFDDDIESRFFIINDNNYNENINLIYKDIKYCGLNIQTTGLEVFDENIRLIQIAVENYPVIIYDMFNINKKDILDGLRKVLENKNIIKIIQNGKFDAKFLLHNNFKIENIFDTYIASKLLDKNKNMYGFKLNNIVEKYLNVILDKQQQNSVWNNSLLNNNQLFYAARDSSCLLKLYKKLKEEIKKENLHIVNDIENKCILPICDMELNGIKVDLENLQKSTNEILNELNIEKDNLKKKLKDENINVNSQQQVLKALQKNNVRDISNKLIENTSDSNLKNFLNHEEIISLRNYRRLYKLYSAFYLKLPLHINTKTNKIHTTFNQLKTFSGRFSSEKPNLQQIPRQKNIREIFIPNDNNIFIIADFKQIELKIAAEITNDEIMLKAYNNNIDLHTLTASIITKKNIPDINKEDRHIAKAINFGLIYGMNYVNLKNYANTYYGLNMSLDQCLYFYNSFFEHYKGIYKWHNQVKQKRALQYSTLSNRKVIFPYFSFTKALNYPVQGTCADILKLALVDLYDNLKDINGKIILCVHDEIIIEVNKKFQEEALKILVQSMENSASYFLKKVKCEVSVKIAENWGSKD

Source

organism	Plasmodium falciparum
common_name	malaria parasite P. falciparum
ncbi_taxonomy_id	5833
host_organism	Escherichia coli

Entity 2 polymer

description	DNA primer strand
formula_weight	7715.0 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	B

CAGGTGTCAGTCAGCTAGTGCTGAC

Entity 3 polymer

description	DNA template strand
formula_weight	11023.1 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	C

GCTACCGTAGCGTCAGCACTAGCTGACTGACACCTG

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.700 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.70 Å
resolution_method	—
num_particles	53452

fit	/app/data/saxs_computation/qu/9quj/9quj.fit
pddf	/app/data/pr_computation/qu/9quj/9quj.pr.out
profile	/app/data/saxs_computation/qu/9quj/9quj.dat

apPol-DNA complex (binary 1)

SAXS Profile

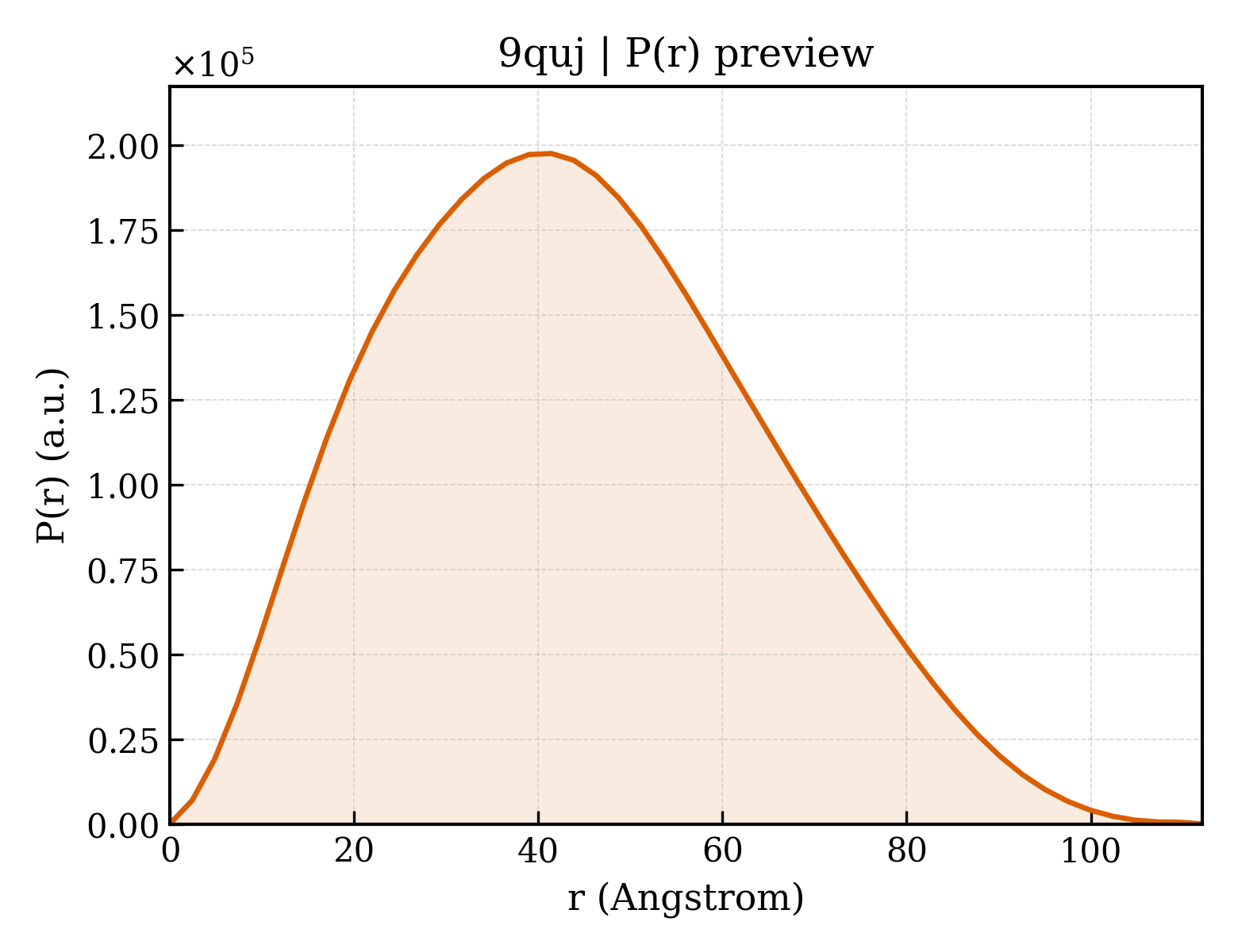

P(r) Distribution
