9qus
Triosephosphate isomerase of Rhodonellum psychrophilum
SAXS Profile

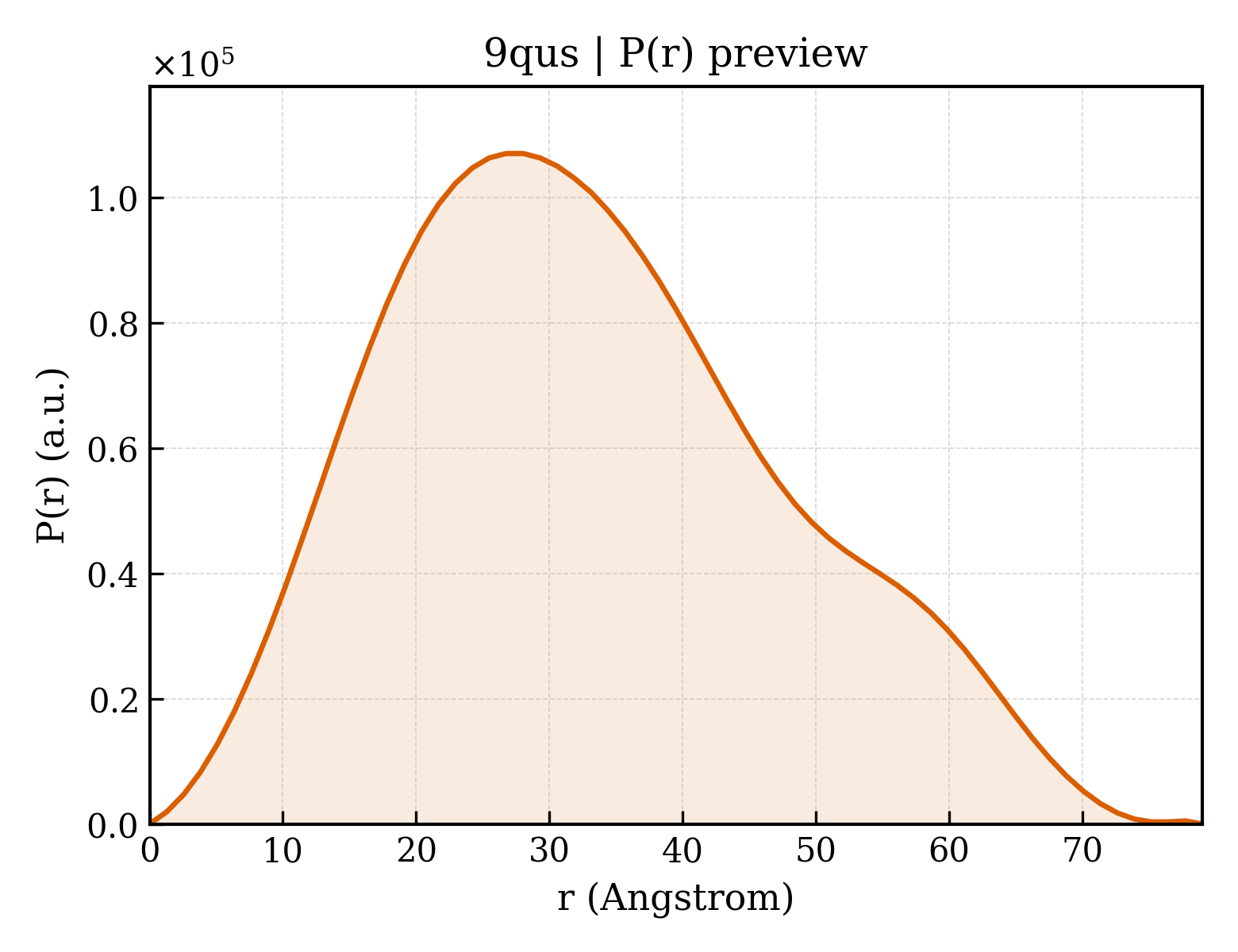

P(r) Distribution
1. Structure Basics
| entry_id | 9qus |
| deposition_date | 2025-04-11 |
| last_revision | 2025-05-14 |
| title | Triosephosphate isomerase of Rhodonellum psychrophilum |
| keywords | psychrophile, eurypsychrophile, triosephosphate, isomerase, cold-active; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 25.47 Å |
| rg_electron | 24.36 Å |
| i0 | 50315100.00 |
| molecular_weight | 54760.0 kDa |
| excluded_volume | 68509 ų |
| envelope_volume | 79018 ų |
| shell_volume | 27302 ų |
| envelope_diameter | 78.5 Å |
| shell_rg | 31.76 Å |
| envelope_rg | 24.53 Å |
| shape_rg | 24.35 Å |
| total_rg | 25.25 Å |
| total_atoms | 7672 |
| n_residues | 506 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 79.0 Å |
| rg_real | 25.49 Å |
| rg_real_error | 0.48 Å |
| i0_real | 5.0320e+07 |
| i0_real_error | 7.0120e+05 |
| rg_reciprocal | 25.49 Å |
| i0_reciprocal | 50310000.0000 |
| total_estimate | 0.8977 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 77.8 Å |
| skewness | 0.362 |
| kurtosis | -0.497 |
| angular_range | — – 0.3100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17380000.0000 |
| n_real_points | 63 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.919 |
