SAXSdb — 9quw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sodium/hydrogen exchanger 9B2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Fab light chain × 2 Fab heavy chain × 2 2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE × 2 3-(4-HYDROXYPHENYL)-1-(2,4,6-TRIHYDROXYPHENYL)PROPAN-1-ONE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SL9B2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 1–537； UniProt 1–537 Author chain B； PDBConstruct 1–537； UniProt 1–537

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9quw
Deposition date deposition_date	2025-04-11
Structure title title	Cryo-EM structure of the human NHA2-Fab complex bound to phloretin
Keywords keywords	Na+/H+ exchanger, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9quw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9quw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

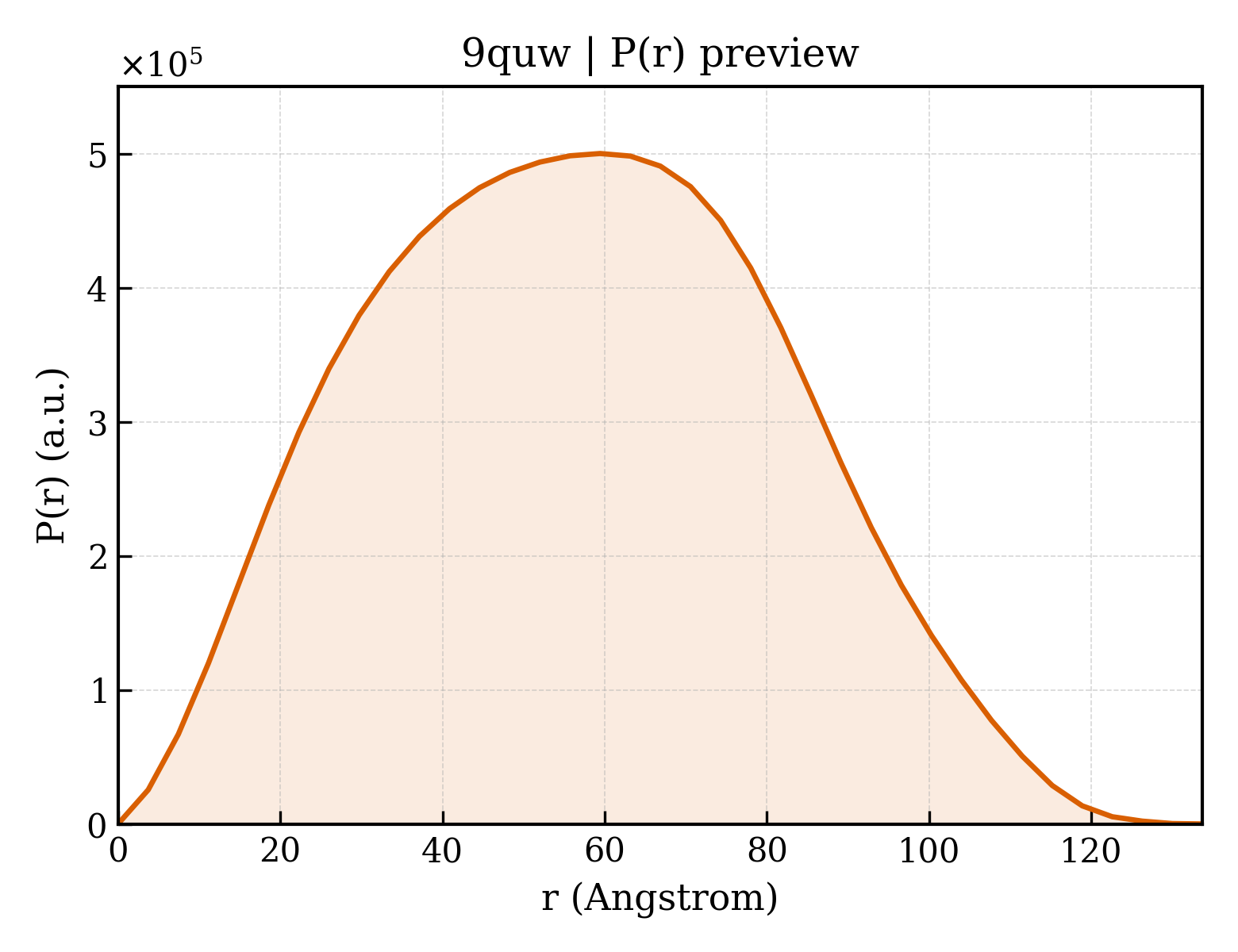

9quw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.80 Å
Rg (electron density)	43.29 Å
Total Rg	43.68 Å
Atom count	20186
Residues	1692
Excluded volume	235190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9quw__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Fab light chain
Molecular weight formula_weight	23715.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,C
Atom count atom_count	20186

DIVMTQTTSSLSASLGDRVTISCRASQDISNYLNWFQQKPDGTVKLLICYTSRLHSGVPSRFSGSGSGTDYSLTISNLEQEDIATYFCQQDSKHPWTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 2 Entity 2 polymer

Description description	Fab heavy chain
Molecular weight formula_weight	27757.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,F

EVQLQESGPELVKPGASVKMSCKASGYTFTNYFIHWVKQKPGQGLEWIGYINPYNDITKFNEKFKGKATLTSDKSSRTAYMELSSLTSEDSAVYYCARCDGYYRYYAMDYWGQGTSVTVSSAKTTAPSVYPLAPVCGDTSGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIEPRGPTIKPCPPCKCPAPNLLGGPSVFIFPPKIKDVLM

Entity 3 Entity 3 polymer

Description description	Sodium/hydrogen exchanger 9B2
Molecular weight formula_weight	57611.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B

MGDEDKRITYEDSEPSTGMNYTPSMHQEAQEETVMKLKGIDANEPTEGSILLKSSEKKLQETPTEANHVQRLRQMLACPPHGLLDRVITNVTIIVLLWAVVWSITGSECLPGGNLFGIIILFYCAIIGGKLLGLIKLPTLPPLPSLLGMLLAGFLIRNIPVINDNVQIKHKWSSSLRSIALSIILVRAGLGLDSKALKKLKGVCVRLSMGPCIVEACTSALLAHYLLGLPWQWGFILGFVLGAVSPAVVVPSMLLLQGGGYGVEKGVPTLLMAAGSFDDILAITGFNTCLGIAFSTGSTVFNVLRGVLEVVIGVATGSVLGFFIQYFPSRDQDKLVCKRTFLVLGLSVLAVFSSVHFGFPGSGGLCTLVMAFLAGMGWTSEKAEVEKIIAVAWDIFQPLLFGLIGAEVSIASLRPETVGLCVATVGIAVLIRILTTFLMVCFAGFNLKEKIFISFAWLPKATVQAAIGSVALDTARSHGEKQLEDYGMDVLTVAFLSILITAPIGSLLIGLLGPRLLQKVEHQNKDEEVQGETSVQV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 non-polymer

Description description	2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE
Molecular weight formula_weight	648.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	3-(4-HYDROXYPHENYL)-1-(2,4,6-TRIHYDROXYPHENYL)PROPAN-1-ONE
Molecular weight formula_weight	274.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	251355
