9qvb
Structure of Eimeria tenella SAG13 (ETH_00013178)

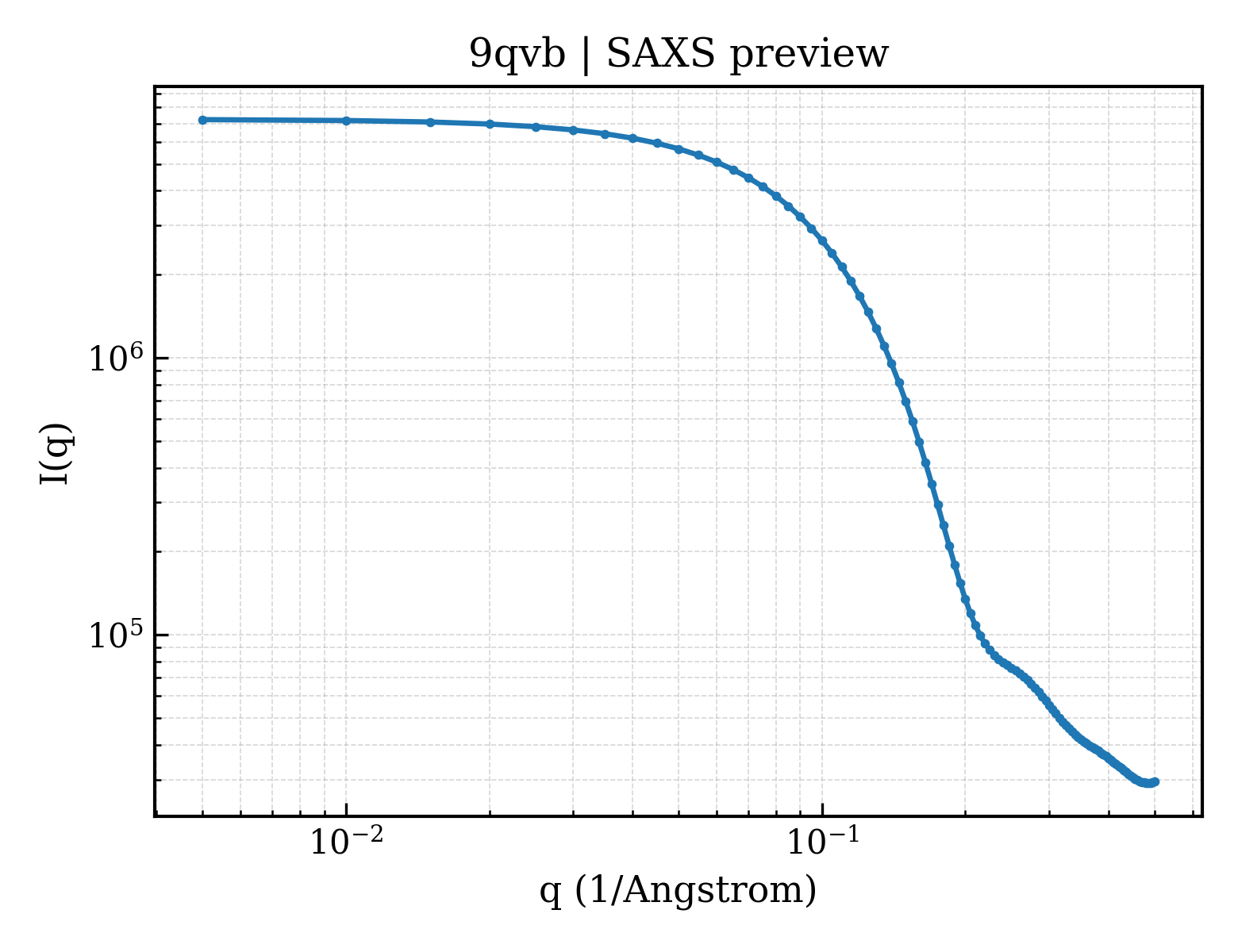

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9qvb |
| deposition_date | 2025-04-11 |
| last_revision | 2026-04-22 |
| title | Structure of Eimeria tenella SAG13 (ETH_00013178) |
| keywords | Surface antigen protein, UNKNOWN FUNCTION; UNKNOWN FUNCTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.16 Å |
| rg_electron | 15.78 Å |
| i0 | 7243330.00 |
| molecular_weight | 19275.0 kDa |
| excluded_volume | 24024 ų |
| envelope_volume | 27651 ų |
| shell_volume | 14819 ų |
| envelope_diameter | 54.1 Å |
| shell_rg | 21.63 Å |
| envelope_rg | 16.07 Å |
| shape_rg | 15.77 Å |
| total_rg | 16.84 Å |
| total_atoms | 1351 |
| n_residues | 183 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.5 Å |
| rg_real | 17.07 Å |
| rg_real_error | 0.32 Å |
| i0_real | 7.2430e+06 |
| i0_real_error | 8.0880e+04 |
| rg_reciprocal | 17.08 Å |
| i0_reciprocal | 7243000.0000 |
| total_estimate | 0.8163 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 22.2 Å |
| skewness | 0.179 |
| kurtosis | -0.384 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1624000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.870; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
