9qw7

The crystal structure of the adenyly transferase domain of Candida glabrata tRNA ligase

Method: X-RAY DIFFRACTION D_max: 122.5 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9qw7
deposition_date	2025-04-14
title	The crystal structure of the adenyly transferase domain of Candida glabrata tRNA ligase
keywords	tRNA ligase, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.88 Å
rg_electron	33.27 Å
i0	119115000.00
molecular_weight	86786.0 kDa
excluded_volume	108490 Å³
envelope_volume	144120 Å³
shell_volume	38351 Å³
envelope_diameter	131.4 Å
shell_rg	37.15 Å
envelope_rg	33.46 Å
shape_rg	33.26 Å
total_rg	33.65 Å
total_atoms	6113
n_residues	745
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

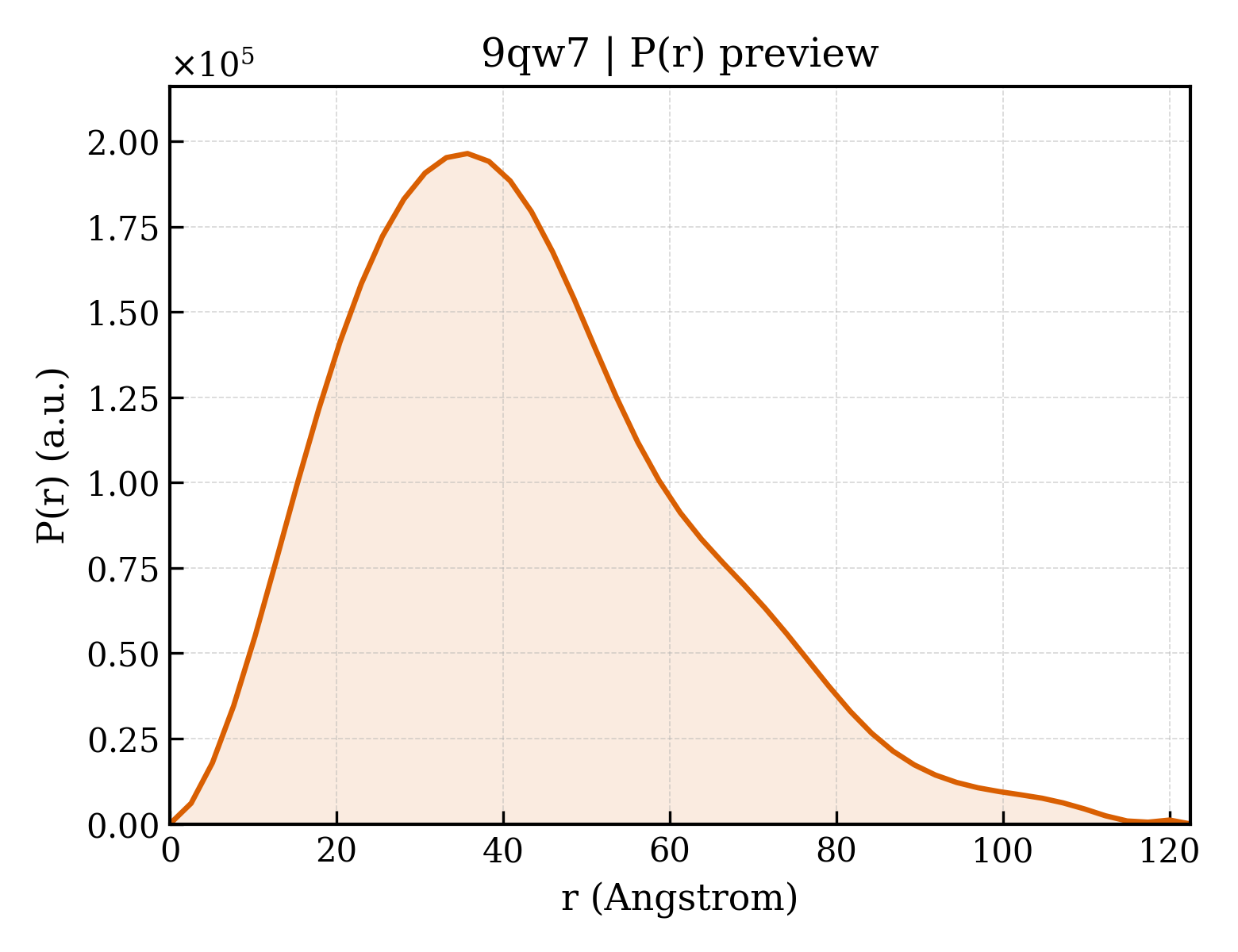

3. P(r) Analysis (GNOM)

dmax	122.5 Å
rg_real	33.24 Å
rg_real_error	1.45 Å
i0_real	1.1910e+08
i0_real_error	2.1550e+06
rg_reciprocal	33.09 Å
i0_reciprocal	119100000.0000
total_estimate	0.7989
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	35.7 Å
skewness	0.653
kurtosis	0.201
angular_range	— – 0.2400 Å⁻¹
current_alpha	0.0000
highest_alpha	28160000.0000
n_real_points	49
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.581; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.748; Smooth: 0.891

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	tRNA ligase
formula_weight	44630.2 kDa
ec_number	6.5.1.3
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6146

MNLSRNVKDLVEKLEAASQLPGRGKAIKRICKLSNSDGQVVSWKFNEWDYGKNNIKLPCCARGLFITDDSKNPQIVARGYDKFFNIDETPFTRWDTLESDTKGTYNVTLKANGCIIFVSGMADGTLVVCSKHSTGPRDDVDRNHADAGEQFLLSQLKSIGIEPQQLALELYQNNVTAVAEYCDDTFEEHILEYTNDDVGLYLHGINYNETTFRTWDMDSVSEFARKYNFKQIKYENFNDFTLLKKFLEECSNSGTYHGQEVEGFVIRCKTRENGNDFFFKYKFEEPYLMYRQWREVTKDYISTKSRVFKFKKHKFITNKYLDFVIPILDSSPALCEEYMKGFGIIKLRNEFLKDFGMSGLEILNHEKVLELENANKIDYDTVDE

Source

organism	Nakaseomyces glabratus
ncbi_taxonomy_id	5478
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	ADENOSINE MONOPHOSPHATE
formula_weight	347.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	33

▶

6. Citations (1)

▶

length_a	81.796 Å
length_b	81.796 Å
length_c	286.593 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 32 2 1
int_tables_number	154
crystal_system	—

resolution	2.750 Å
resolution_low	63.500 Å
r_factor	0.2198
r_work	0.2177
r_free	0.2625

fit	/app/data/saxs_computation/qw/9qw7/9qw7.fit
pddf	/app/data/pr_computation/qw/9qw7/9qw7.pr.out
profile	/app/data/saxs_computation/qw/9qw7/9qw7.dat
