9qwm

Crystal structure of catalytic domain of Rv1625c bound to inhibitory Darpin G11

Method: X-RAY DIFFRACTION D_max: 80.8 Å Quality: GOOD

SAXS Profile

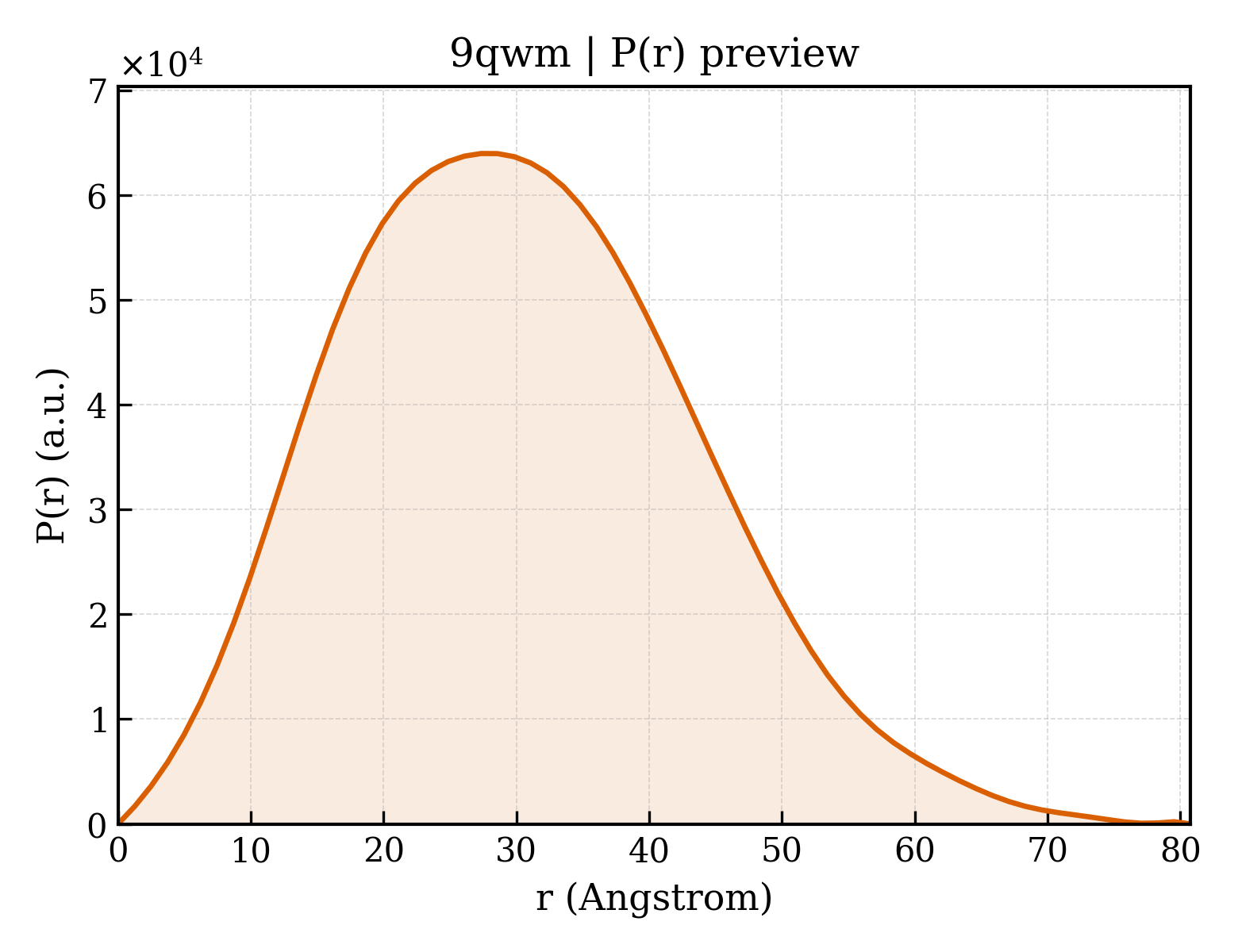

P(r) Distribution

▼

1. Structure Basics

entry_id	9qwm
deposition_date	2025-04-14
last_revision	2026-04-29
title	Crystal structure of catalytic domain of Rv1625c bound to inhibitory Darpin G11
keywords	Adenylyl cyclase, Darpin, Mycobacterium tuberculosis, SIGNALING PROTEIN; SIGNALING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	23.32 Å
rg_electron	22.26 Å
i0	28001100.00
molecular_weight	39720.0 kDa
excluded_volume	49435 Å³
envelope_volume	63691 Å³
shell_volume	24104 Å³
envelope_diameter	82.4 Å
shell_rg	28.79 Å
envelope_rg	23.07 Å
shape_rg	22.23 Å
total_rg	23.18 Å
total_atoms	2798
n_residues	362
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.8 Å
rg_real	23.30 Å
rg_real_error	0.60 Å
i0_real	2.8000e+07
i0_real_error	3.9850e+05
rg_reciprocal	23.31 Å
i0_reciprocal	28000000.0000
total_estimate	0.8691
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	27.3 Å
skewness	0.346
kurtosis	-0.198
angular_range	— – 0.3400 Å⁻¹
current_alpha	0.0000
highest_alpha	7194000.0000
n_real_points	66
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.786; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.963

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Adenylate cyclase
formula_weight	28202.8 kDa
ec_number	4.6.1.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2891

MGHHHHHHHHHHSSGLEVLFQGPSGHMRDTARAEAVMEAEHDRSEALLANMLPASIAERLKEPERNIIADKYDEASVLFADIVGFTERASSTAPADLVRFLDRLYSAFDELVDQHGLEKIKVSGDSYMVVSGVPRPRPDHTQALADFALDMTNVAAQLKDPRGNPVPLRVGLATGPVVAGVVGSRRFFYDVWGDAVNVASRMESTDSVGQIQVPDEVYERLKDDFVLRERGHINVKGKGVMRTWYLIGRKVAAD

Source

organism	Mycobacterium tuberculosis
ncbi_taxonomy_id	1773
host_organism	Escherichia coli

Entity 2 polymer

description	Darpin G11
formula_weight	20055.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MRGSHHHHHHHHGSDLGKKLLEAATWGQHDEVRILMANGADVNAEDEWGMTPLHLAADSGHLEIVEVLLKTGADVNAMDWFGYTPLHLAAQMGHLEIVEVLLKTGADVNAMDREGYTPLHLAADSGHLEIVEVLLKHGADVNAQDKFGKTPFDLAAWEGNEDIAEVLQKAAKLNDYKDDDDK

Source

organism	synthetic construct
ncbi_taxonomy_id	32630
host_organism	Escherichia coli

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	93

▶

6. Citations (1)

▶

length_a	65.518 Å
length_b	65.518 Å
length_c	437.403 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 65 2 2
int_tables_number	179
crystal_system	hexagonal

resolution	2.700 Å
resolution_low	47.600 Å
r_factor	0.2253
r_work	0.2214
r_free	0.2600

fit	/app/data/saxs_computation/qw/9qwm/9qwm.fit
pddf	/app/data/pr_computation/qw/9qwm/9qwm.pr.out
profile	/app/data/saxs_computation/qw/9qwm/9qwm.dat
