SAXSdb — 9qxe

▼

1. Structure Basics

entry_id	9qxe
deposition_date	2025-04-15
last_revision	2026-04-29
title	SARS-CoV-2 nsp14 with benzenesulfonamide
keywords	SARS-CoV-2, nsp14, Fragment screening, VIRAL PROTEIN; VIRAL PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.35 Å
rg_electron	26.76 Å
i0	47008600.00
molecular_weight	52394.0 kDa
excluded_volume	64978 Å³
envelope_volume	80381 Å³
shell_volume	26004 Å³
envelope_diameter	93.0 Å
shell_rg	33.09 Å
envelope_rg	26.98 Å
shape_rg	26.75 Å
total_rg	27.49 Å
total_atoms	3660
n_residues	453
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	89.5 Å
rg_real	27.48 Å
rg_real_error	0.65 Å
i0_real	4.7010e+07
i0_real_error	6.6440e+05
rg_reciprocal	27.44 Å
i0_reciprocal	47010000.0000
total_estimate	0.6769
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	27.8 Å
skewness	0.412
kurtosis	-0.526
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	5320000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 0.127; Positv: 1.000; Valcen: 0.928; Smooth: 0.944

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Guanine-N7 methyltransferase nsp14
formula_weight	59548.2 kDa
ec_number	2.1.1.56,3.1.13.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4023

TMLFKDCSKVITGLHPTQAPTHLSVDTKFKTEGLCVDIPGIPKDMTYRRLISMMGFKMNYQVNGYPNMFITREEAIRHVRAWIGFDVEGCHATREAVGTNLPLQLGFSTGVNLVAVPTGYVDTPNNTDFSRVSAKPPPGDQFKHLIPLMYKGLPWNVVRIKIVQMLSDTLKNLSDRVVFVLWAHGFELTSMKYFVKIGPERTCCLCDRRATCFSTASDTYACWHHSIGFDYVYNPFMIDVQQWGFTGNLQSNHDLYCQVHGNAHVASCDAIMTRCLAVHECFVKRVDWTIEYPIIGDELKINAACRKVQHMVVKAALLADKFPVLHDIGNPKAIKCVPQADVEWKFYDAQPCSDKAYKIEELFYSYATHSDKFTDGVCLFWNCNVDRYPANSIVCRFDTRVLSNLNLPGCDGGSLYVNKHAFHTPAFDKSAFVNLKQLPFFYYSDSPCESHGKQVVSDIDYVPLKSATCITRCNLGGAVCRHHANEYRLYLDAYNMMISAGFSLWVYKQFDTYNLWNTFTRLQ

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Escherichia coli

Entity 2 non-polymer

description	benzenesulfonamide
formula_weight	157.2 kDa
src_method	syn
entity_count	3

Entity 3 non-polymer

description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
formula_weight	238.3 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	DIMETHYL SULFOXIDE
formula_weight	78.1 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	3

Entity 6 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	4

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	331

▶

6. Citations (1)

▶

length_a	67.361 Å
length_b	68.041 Å
length_c	138.152 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.930 Å
resolution_low	45.230 Å
r_factor	0.2007
r_work	0.1990
r_free	0.2319

fit	/app/data/saxs_computation/qx/9qxe/9qxe.fit
pddf	/app/data/pr_computation/qx/9qxe/9qxe.pr.out
profile	/app/data/saxs_computation/qx/9qxe/9qxe.dat

SARS-CoV-2 nsp14 with benzenesulfonamide

SAXS Profile

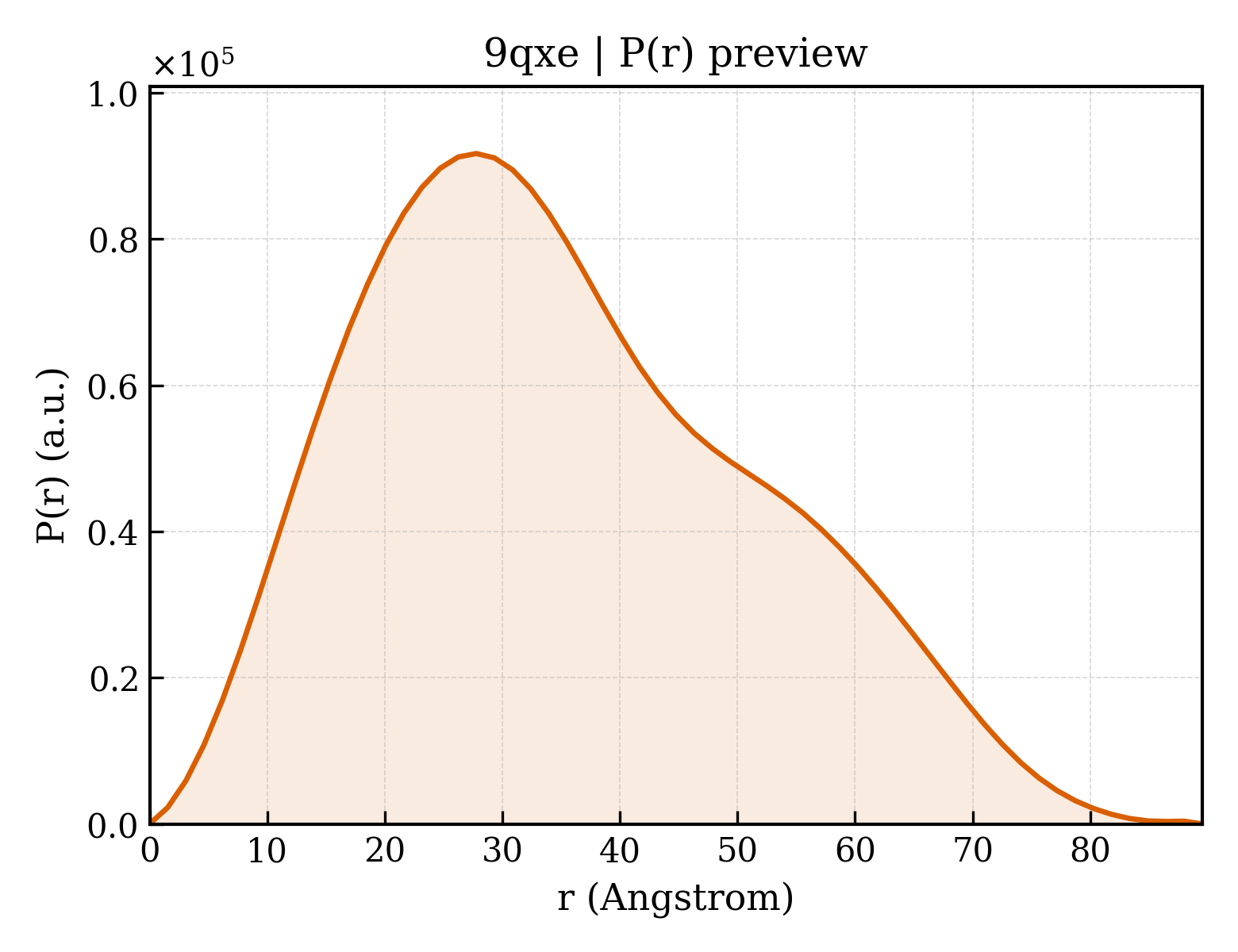

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction
