9qxk

SARS-CoV-2 nsp14 with thiophene-3-sulfonamide

Method: X-RAY DIFFRACTION D_max: 87.4 Å Quality: GOOD

SAXS Profile

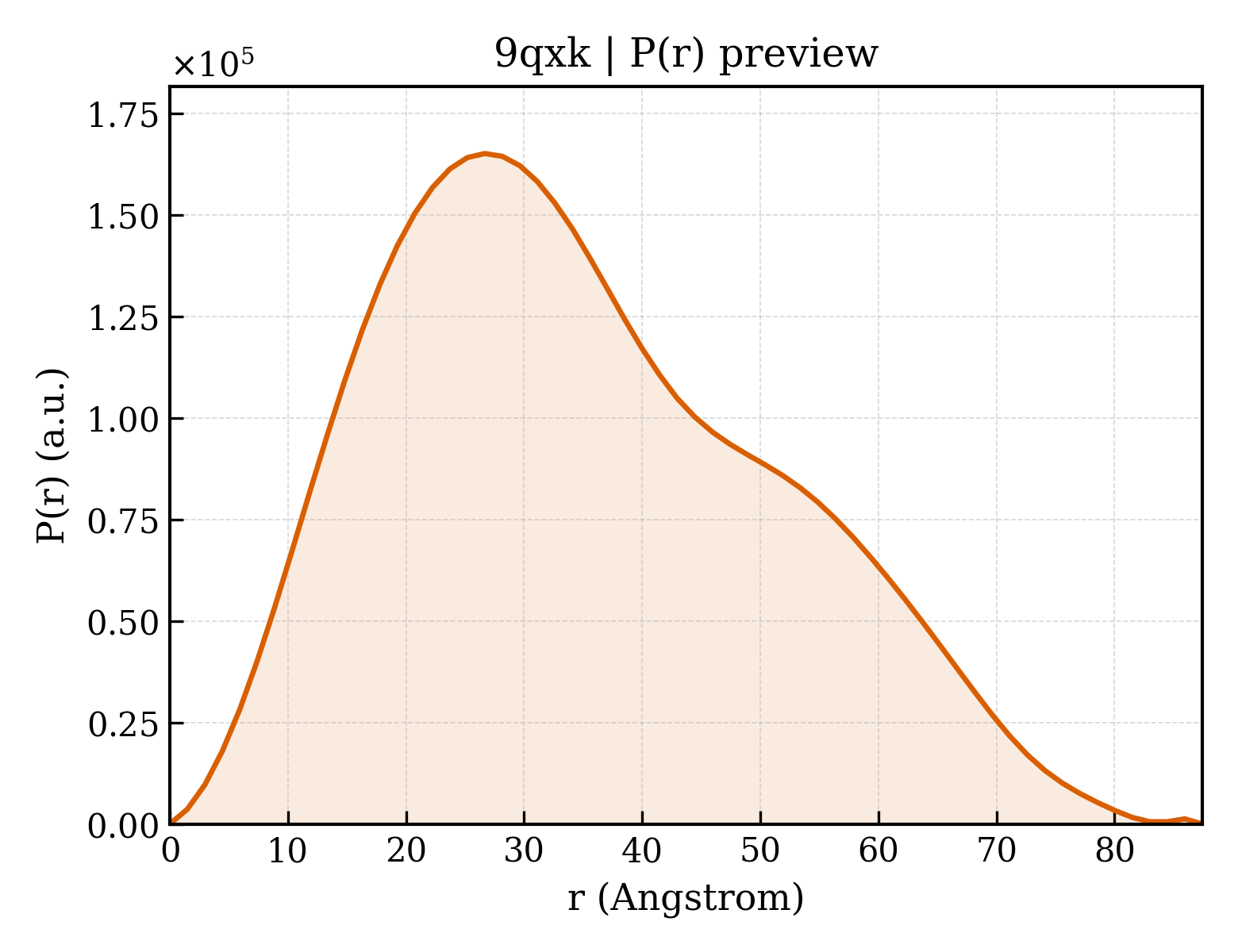

P(r) Distribution

▼

1. Structure Basics

entry_id	9qxk
deposition_date	2025-04-15
last_revision	2026-04-29
title	SARS-CoV-2 nsp14 with thiophene-3-sulfonamide
keywords	SARS-CoV-2, nsp14, Fragment screening, VIRAL PROTEIN; VIRAL PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.10 Å
rg_electron	26.71 Å
i0	84422100.00
molecular_weight	48530.0 kDa
excluded_volume	47070 Å³
envelope_volume	80146 Å³
shell_volume	26025 Å³
envelope_diameter	90.8 Å
shell_rg	32.99 Å
envelope_rg	26.85 Å
shape_rg	26.68 Å
total_rg	27.26 Å
total_atoms	3639
n_residues	454
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	87.4 Å
rg_real	27.23 Å
rg_real_error	0.72 Å
i0_real	8.4420e+07
i0_real_error	1.2630e+06
rg_reciprocal	27.19 Å
i0_reciprocal	84420000.0000
total_estimate	0.8673
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.7 Å
skewness	0.409
kurtosis	-0.558
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	7797000.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.869; Smooth: 0.837

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Guanine-N7 methyltransferase nsp14
formula_weight	59548.2 kDa
ec_number	2.1.1.56,3.1.13.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4016

TMLFKDCSKVITGLHPTQAPTHLSVDTKFKTEGLCVDIPGIPKDMTYRRLISMMGFKMNYQVNGYPNMFITREEAIRHVRAWIGFDVEGCHATREAVGTNLPLQLGFSTGVNLVAVPTGYVDTPNNTDFSRVSAKPPPGDQFKHLIPLMYKGLPWNVVRIKIVQMLSDTLKNLSDRVVFVLWAHGFELTSMKYFVKIGPERTCCLCDRRATCFSTASDTYACWHHSIGFDYVYNPFMIDVQQWGFTGNLQSNHDLYCQVHGNAHVASCDAIMTRCLAVHECFVKRVDWTIEYPIIGDELKINAACRKVQHMVVKAALLADKFPVLHDIGNPKAIKCVPQADVEWKFYDAQPCSDKAYKIEELFYSYATHSDKFTDGVCLFWNCNVDRYPANSIVCRFDTRVLSNLNLPGCDGGSLYVNKHAFHTPAFDKSAFVNLKQLPFFYYSDSPCESHGKQVVSDIDYVPLKSATCITRCNLGGAVCRHHANEYRLYLDAYNMMISAGFSLWVYKQFDTYNLWNTFTRLQ

Source

organism	Severe acute respiratory syndrome coronavirus 2
ncbi_taxonomy_id	2697049
host_organism	Escherichia coli

Entity 2 non-polymer

description	thiophene-3-sulfonamide
formula_weight	163.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	DIMETHYL SULFOXIDE
formula_weight	78.1 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
formula_weight	238.3 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	3

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	345

▶

6. Citations (1)

▶

length_a	67.315 Å
length_b	68.062 Å
length_c	138.122 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	1.910 Å
resolution_low	61.050 Å
r_factor	0.1973
r_work	0.1953
r_free	0.2328
