9r0u

Three dimensional structure of human carbonic anhydrase XII in complex with sulfonamide

Method: X-RAY DIFFRACTION D_max: 117.3 Å Quality: GOOD

SAXS Profile

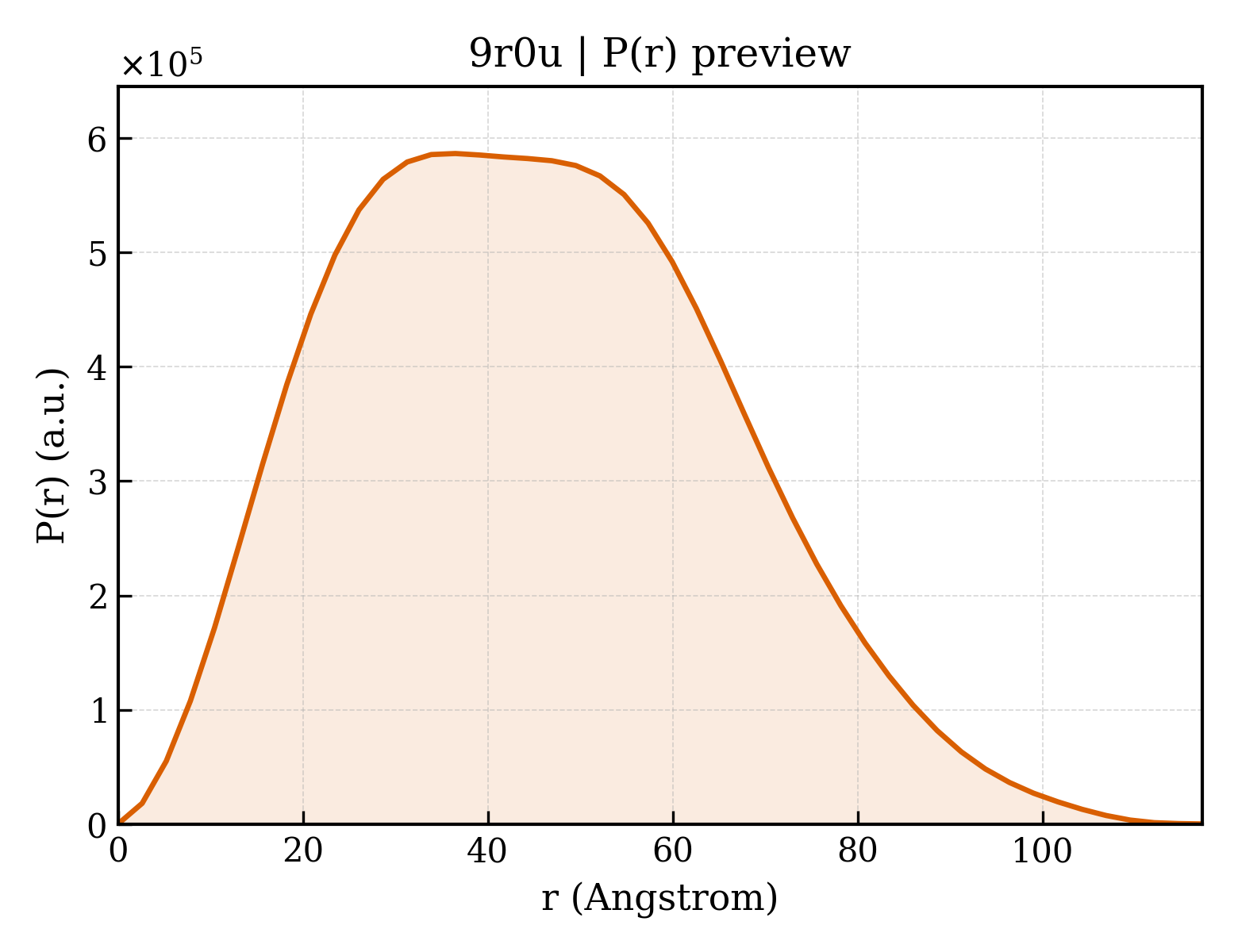

P(r) Distribution

▼

1. Structure Basics

entry_id	9r0u
deposition_date	2025-04-24
title	Three dimensional structure of human carbonic anhydrase XII in complex with sulfonamide
keywords	CA XII, CA 12, CARBONIC ANHYDRASE XII, CARBONIC ANHYDRASE 12, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.00 Å
rg_electron	34.69 Å
i0	427152000.00
molecular_weight	111860.0 kDa
excluded_volume	108170 Å³
envelope_volume	185580 Å³
shell_volume	44464 Å³
envelope_diameter	120.0 Å
shell_rg	41.31 Å
envelope_rg	34.35 Å
shape_rg	34.69 Å
total_rg	35.01 Å
total_atoms	8458
n_residues	1040
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	117.3 Å
rg_real	35.01 Å
rg_real_error	1.12 Å
i0_real	4.2720e+08
i0_real_error	7.0690e+06
rg_reciprocal	35.01 Å
i0_reciprocal	427200000.0000
total_estimate	0.8803
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	36.5 Å
skewness	0.301
kurtosis	-0.458
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	125100000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.871; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.853

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Carbonic anhydrase 12
formula_weight	29857.2 kDa
ec_number	4.2.1.1
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	9350

ASKWTYFGPDGENSWSKKYPSCGGLLQSPIDLHSDILQYDASLTPLEFQGYNLSANKQFLLTNNGHSVKLNLPSDMHIQGLQSRYSATQLHLHWGNPNDPHGSEHTVSGQHFAAELHIVHYNSDLYPDASTASNKSEGLAVLAVLIEMGSFNPSYDKIFSHLQHVKYKGQEAFVPGFNIEELLPERTAEYYRYRGSLTTPPCNPTVLWTVFRNPVQISQEQLLALETALYCTHMDDPSPREMINNFRQVQKFDERLVYTSFSQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	3-(Cyclooctylamino)-5-ethoxy-2,6-difluoro-4-((3-hydroxypropyl)sulfonyl)benzenesulfonamide
formula_weight	484.6 kDa
src_method	syn
entity_count	4

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	886

▶

6. Citations (1)

▶

length_a	46.591 Å
length_b	67.125 Å
length_c	80.460 Å
angle_alpha	81.54 °
angle_beta	84.30 °
angle_gamma	86.47 °
z_pdb	4

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	1.190 Å
resolution_low	47.640 Å
r_factor	0.1672
r_work	0.1657
r_free	0.1940
