SAXSdb — 9r1g

▼

1. Structure Basics

entry_id	9r1g
deposition_date	2025-04-26
last_revision	2025-11-05
title	Cryo-EM structure of human MATE1
keywords	SLC47A1, apo, Fab, multidrug transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.20 Å
rg_electron	39.28 Å
i0	134372000.00
molecular_weight	102600.0 kDa
excluded_volume	132210 Å³
envelope_volume	170590 Å³
shell_volume	39440 Å³
envelope_diameter	135.4 Å
shell_rg	40.44 Å
envelope_rg	39.60 Å
shape_rg	39.23 Å
total_rg	39.55 Å
total_atoms	7240
n_residues	916
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	128.6 Å
rg_real	39.92 Å
rg_real_error	1.27 Å
i0_real	1.3440e+08
i0_real_error	2.2250e+06
rg_reciprocal	39.48 Å
i0_reciprocal	134300000.0000
total_estimate	0.7581
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	32.1 Å
skewness	0.613
kurtosis	-0.391
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	12280000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.718; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.646; Smooth: 0.050

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Multidrug and toxin extrusion protein 1
formula_weight	61967.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	7245

MEAPEEPAPVRGGPEATLEVRGSRCLRLSAFREELRALLVLAGPAFLVQLMVFLISFISSVFCGHLGKLELDAVTLAIAVINVTGVSVGFGLSSACDTLISQTYGSQNLKHVGVILQRSALVLLLCCFPCWALFLNTQHILLLFRQDPDVSRLTQTYVTIFIPALPATFLYMLQVKYLLNQGIVLPQIVTGVAANLVNALANYLFLHQLHLGVIGSALANLISQYTLALLLFLYILGKKLHQATWGGWSLECLQDWASFLRLAIPSMLMLCMEWWAYEVGSFLSGILGMVELGAQSIVYELAIIVYMVPAGFSVAASVRVGNALGAGDMEQARKSSTVSLLITVLFAVAFSVLLLSCKDHVGYIFTTDRDIINLVAQVVPIYAVSHLFEALACTSGGVLRGSGNQKVGAIVNTIGYYVVGLPIGIALMFATTLGVMGLWSGIIICTVFQAVCFLGFIIQLNWKKACQQAQVHANLKVNNVPRSGNSALPQDPLHPGCPENLEGILTNDVGKTGEPQSDQQMRQEEPLPEHPQDGAKLSRKQLVLRRGLLLLGVFLILLVGILVRFYVRIQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Heavy chain of Fab
formula_weight	24250.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

VQLVESGGGLVQPGGSLRLSCAASGFNFSYSYIHWVRQAPGKGLEWVASISSYYGSTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWANTSSYGWRFWSNGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPK

Source

organism	synthetic construct
ncbi_taxonomy_id	32630
host_organism	Escherichia coli

Entity 3 polymer

description	Light chain of Fab
formula_weight	23140.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQSYWWPLTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNR

Source

organism	synthetic construct
ncbi_taxonomy_id	32630
host_organism	Escherichia coli

Entity 4 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	8

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.95 Å
resolution_method	—
num_particles	327752

fit	/app/data/saxs_computation/r1/9r1g/9r1g.fit
pddf	/app/data/pr_computation/r1/9r1g/9r1g.pr.out
profile	/app/data/saxs_computation/r1/9r1g/9r1g.dat

Cryo-EM structure of human MATE1

SAXS Profile

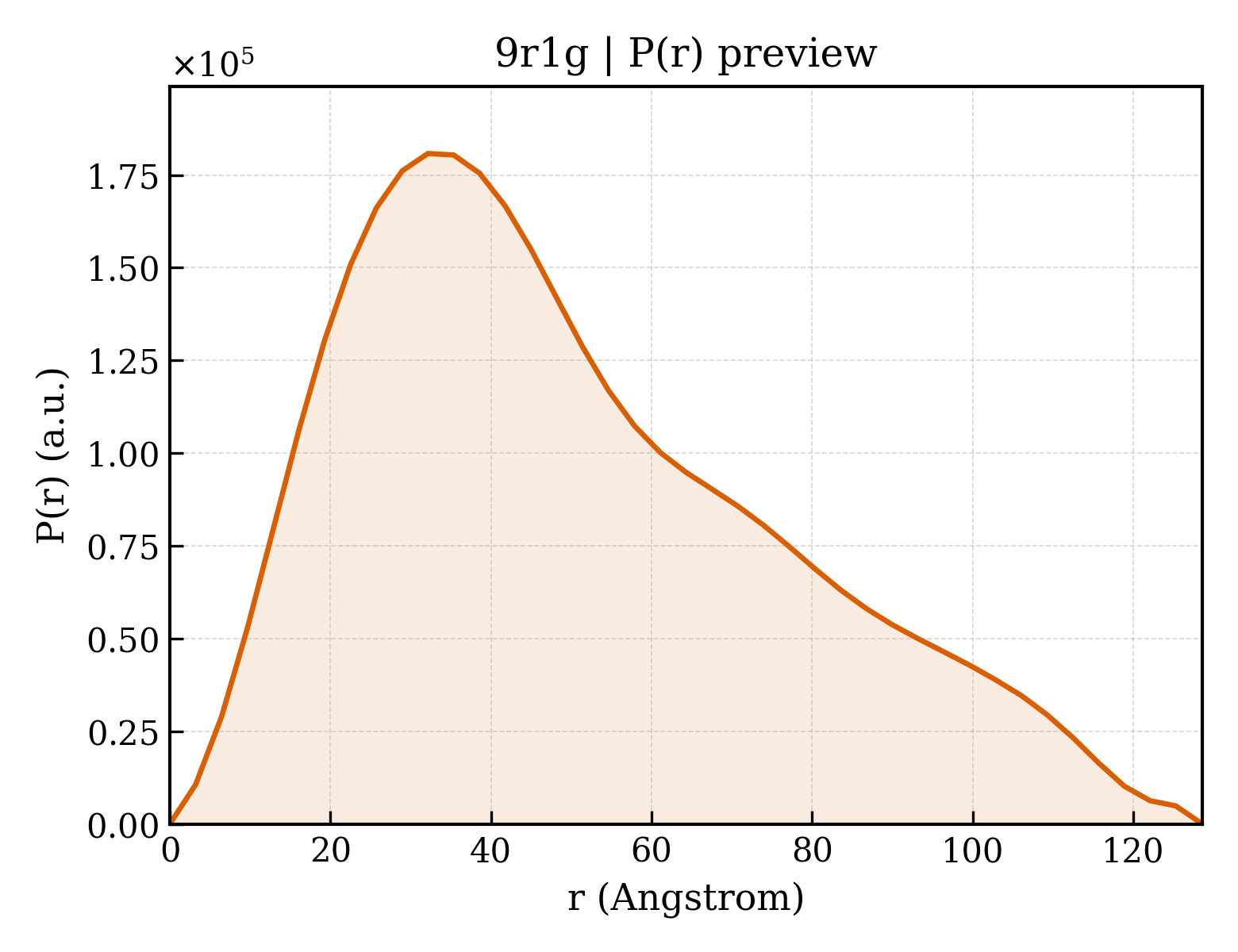

P(r) Distribution
