9r33
Improved crystallization and diffraction quality of Mycobacterium tuberculosis OmamC/Rv1363c upon heat treatment

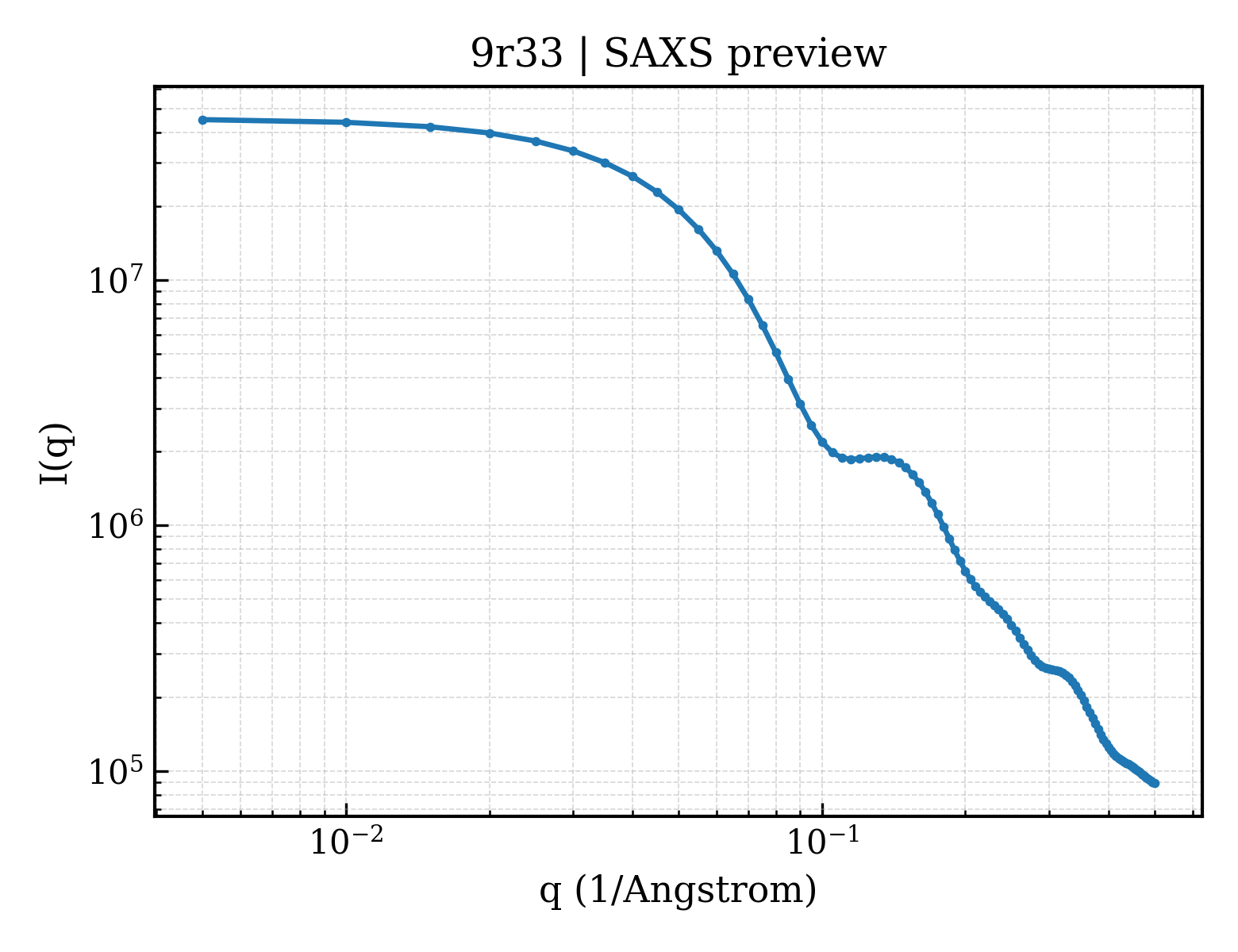

SAXS Profile

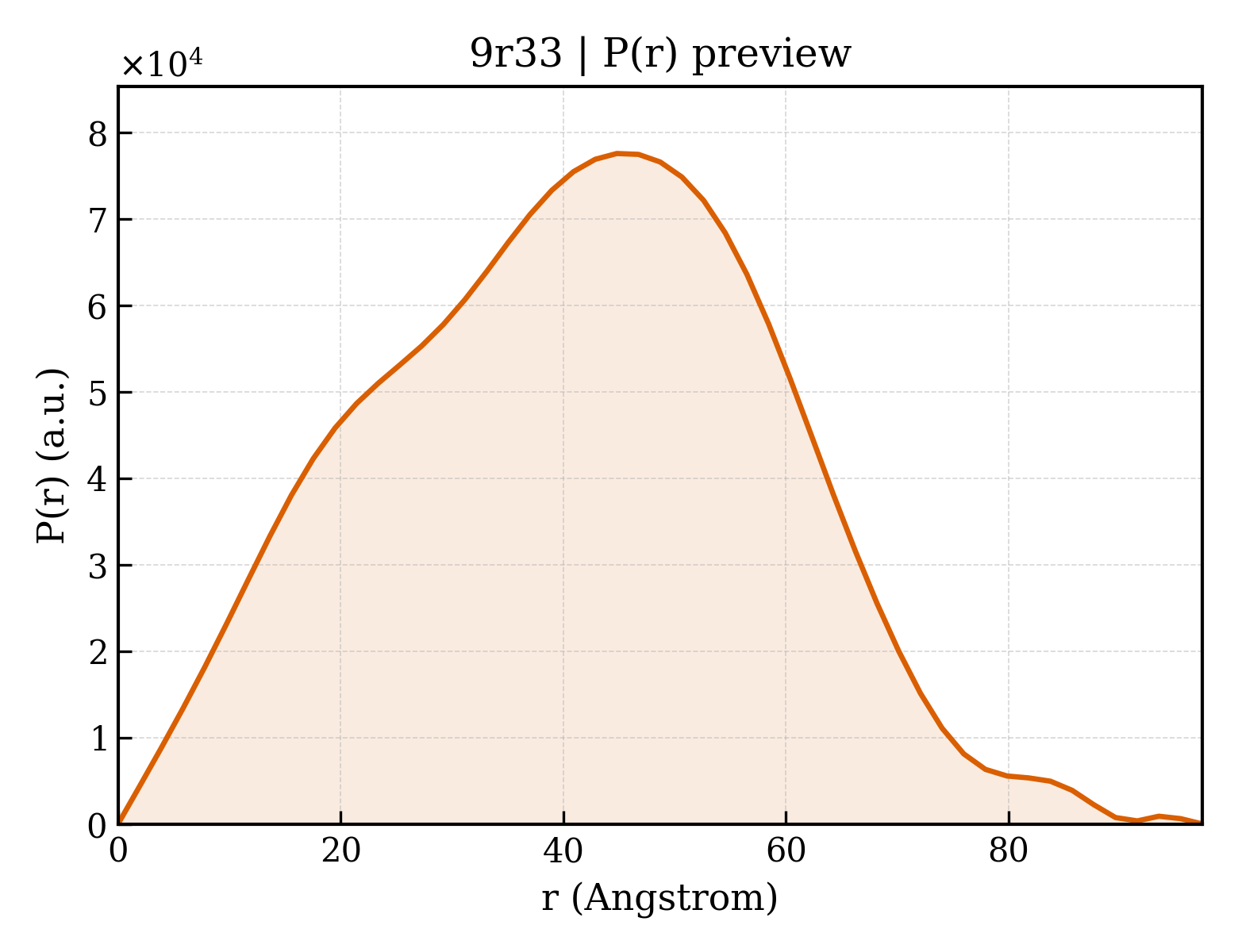

P(r) Distribution
1. Structure Basics
| entry_id | 9r33 |
| deposition_date | 2025-05-02 |
| last_revision | 2026-05-13 |
| title | Improved crystallization and diffraction quality of Mycobacterium tuberculosis OmamC/Rv1363c upon heat treatment |
| keywords | Mycobacterium tuberculosis, mammalian cell entry, Omam, Mam, Mce, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 31.71 Å |
| rg_electron | 30.84 Å |
| i0 | 45415400.00 |
| molecular_weight | 49759.0 kDa |
| excluded_volume | 61172 ų |
| envelope_volume | 96246 ų |
| shell_volume | 27190 ų |
| envelope_diameter | 101.0 Å |
| shell_rg | 36.32 Å |
| envelope_rg | 30.36 Å |
| shape_rg | 30.86 Å |
| total_rg | 31.31 Å |
| total_atoms | 3498 |
| n_residues | 452 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 97.4 Å |
| rg_real | 31.54 Å |
| rg_real_error | 1.00 Å |
| i0_real | 4.5420e+07 |
| i0_real_error | 7.3470e+05 |
| rg_reciprocal | 31.62 Å |
| i0_reciprocal | 45420000.0000 |
| total_estimate | 0.8967 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 44.8 Å |
| skewness | 0.019 |
| kurtosis | -0.514 |
| angular_range | — – 0.2500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2073000.0000 |
| n_real_points | 51 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.922; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.897 |
