1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA ligase

Thermochaetoides thermophila

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	GUANOSINE-5'-DIPHOSPHATE × 1 DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G0S6G2_CHATD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–627； UniProt 1–624

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r3w
Deposition date deposition_date	2025-05-06
Structure title title	Fungal tRNA ligase Trl1-LIG-KIN
Keywords keywords	tRNA ligase, polynucleotide kinase, tRNA splicing, adenylyltransferase, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9r3w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9r3w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

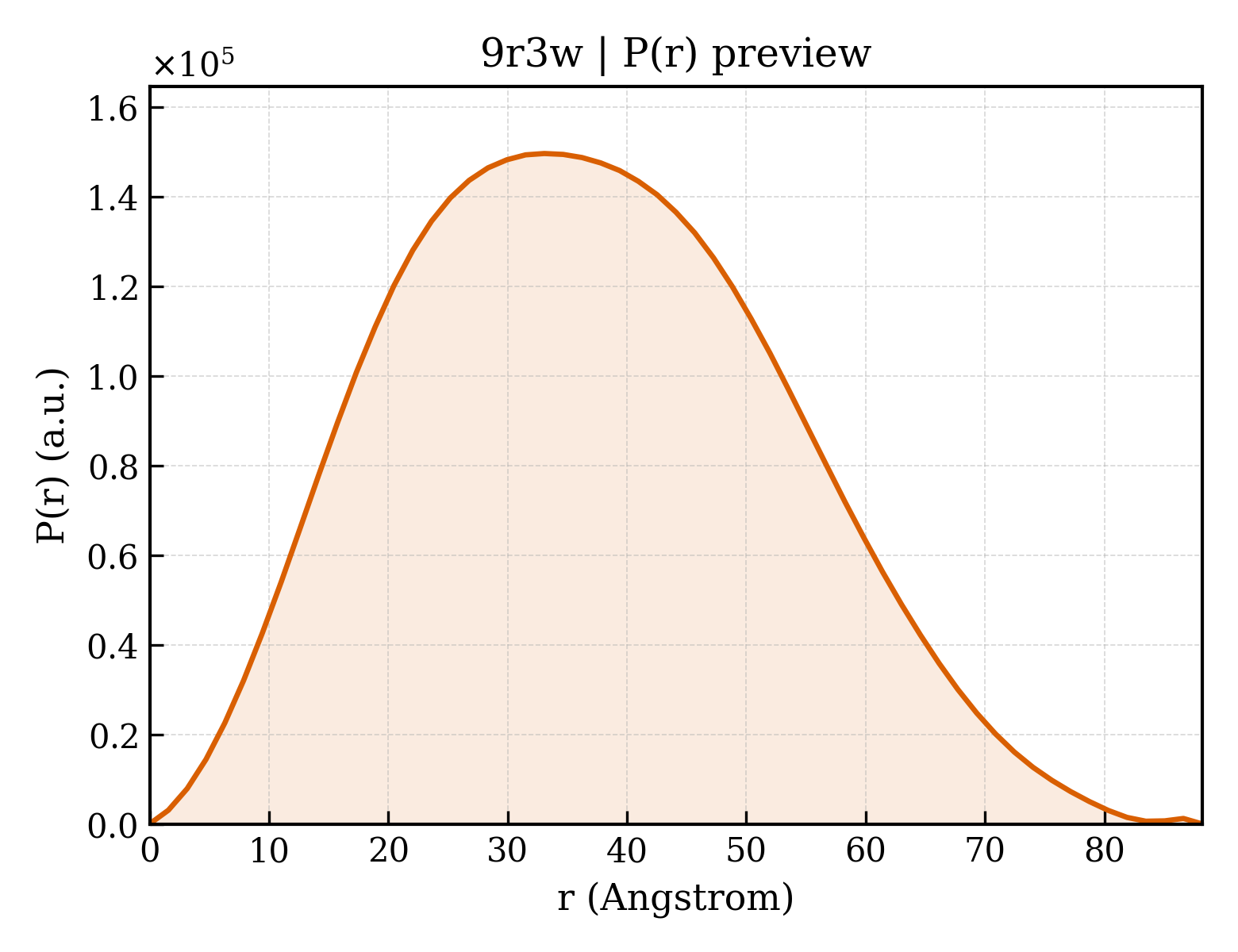

9r3w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.44 Å
Rg (electron density)	27.52 Å
Total Rg	28.33 Å
Atom count	4929
Residues	610
Excluded volume	86975 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9r3w__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	tRNA ligase
Molecular weight formula_weight	70812.0 kDa
EC 编号 ec_number	6.5.1.3
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5277

GSHMDGTAEKQRDSLASRYKASTDYAKDAEGLTAPYVSQDPQETAALVRALDDAAKKGKKSGGFSVKKTRYAVASSPTGAEVDSWRFNDWDYKKPDLPTYARGLFTTRTQHGVPEIAVRGYDKFFNIDETRDTAWSAIRERTKGPYELTLKENGCIIFISGLEDGTLLVCSKHSTGDRSDVALSHSSAGEKHLEAQLERIGKTKEELARELRKRNATAVAELCDDSFEEHILAYGPDKAGLYLHGINLNIPEFITYPSPLVQKFAEDWGFRKTGLIIIDNIDDVKAFLEEVAETGAHDGRDVEGFVIRCKKSTNPGVGPYHDWFFKYKFEEPYLMYRQWRECTKALISGKQPKIKKHVKITEEYLLYARKRLAADPKLAKLYNQNHGIIKLRNDFLEYKNMKGTDAANLEDDGAASVTRDIILVPIATIGCGKTTLGVALTKLFGWGHIQNDNITGSKRPPRFTKAVLDELNEHPAVFADRNNSMRQERKQLLTDVKMQHTTARLVALHFVHDDINTVRKVTQERVIQRGDNHQTIQAATDVNKVIGIMEGFIHRFEPCDPEKDPDEGFDAVIDLDPTAGSRENLEVVIRELHRLYPNFVKEVPPAEAMDEAIKFAMESYKPDLRHI

Source Source

Source organism organism	Thermochaetoides thermophila
NCBI taxonomy ID ncbi_taxonomy_id	209285
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
Molecular weight formula_weight	505.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	348

▶

Unit-cell length a length_a	112.674 Å
Unit-cell length b length_b	112.674 Å
Unit-cell length c length_c	108.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	tetragonal

Resolution resolution	1.890 Å
Low-resolution limit resolution_low	48.800 Å
R factor r_factor	0.1835
R_work r_work	0.1816
R_free r_free	0.2187
