SAXSdb — 9r5z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein kinase JAK3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	3-(3-cyclohexyl-3,8,10-triazatricyclo[7.3.0.0^{2,6}]dodeca-1,4,6,8,11-pentaen-5-yl)benzenesulfonyl fluoride × 1 1-phenylurea × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	3-(3-cyclohexyl-3,8,10-triazatricyclo[7.3.0.0^{2,6}]dodeca-1,4,6,8,11-pentaen-5-yl)benzenesulfonyl fluoride × 1 1-phenylurea × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	JAK3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–294； UniProt 812–1103 Author chain B； PDBConstruct 3–294； UniProt 812–1103

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9r5z
Deposition date deposition_date	2025-05-11
Structure title title	Crystal structure of JAK3 with GCL258
Keywords keywords	kinase, covalent inhibitor, lysine, MAPKAPK2, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9r5z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9r5z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

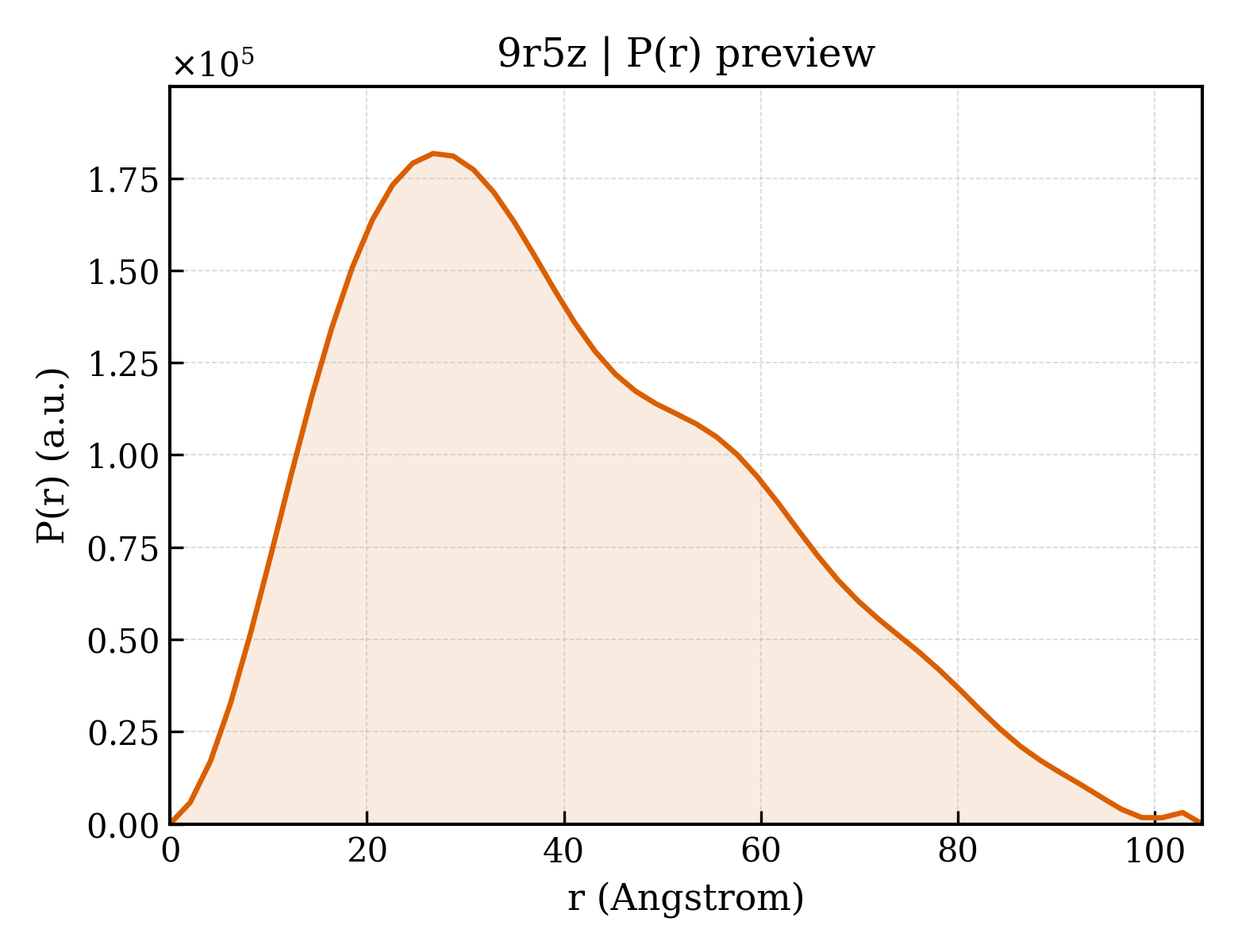

9r5z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.84 Å
Rg (electron density)	18.68 Å
Total Rg	19.66 Å
Atom count	2026
Residues	258
Excluded volume	36155 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9r5z__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9r5z__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein kinase JAK3
Molecular weight formula_weight	33417.3 kDa
EC 编号 ec_number	2.7.10.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4462

SMQDPTIFEERHLKYISQLGKGNFGSVELCRYDPLGDNTGALVAVKQLQHSGPDQQRDFQREIQILKALHSDFIVKYRGVSYGPGRQSLRLVMEYLPSGCLRDFLQRHRARLDASRLLLYSSQICKGMEYLGSRRCVHRALAARNILVESEAHVKIADFGLAKLLPLDKDYYVVREPGQSPIFWYAPESLSDNIFSRQSDVWSFGVVLYELFTYCDKSCSPSAEFLRMMGSERDVPALSRLLELLEEGQRLPAPPACPAEVHELMKLCWAPSPQDRPSFSALGPQLDMLWSGSR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	3-(3-cyclohexyl-3,8,10-triazatricyclo[7.3.0.0^{2,6}]dodeca-1,4,6,8,11-pentaen-5-yl)benzenesulfonyl fluoride
Molecular weight formula_weight	397.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1-phenylurea
Molecular weight formula_weight	136.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	218

▶

Unit-cell length a length_a	41.850 Å
Unit-cell length b length_b	62.540 Å
Unit-cell length c length_c	101.197 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	93.71 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	41.800 Å
R factor r_factor	0.2387
R_work r_work	0.2359
R_free r_free	0.2893
