9r72
Crystal structure of Odinarchaeota Adenylate kinase (OdinAK) S74G mutant
SAXS Profile

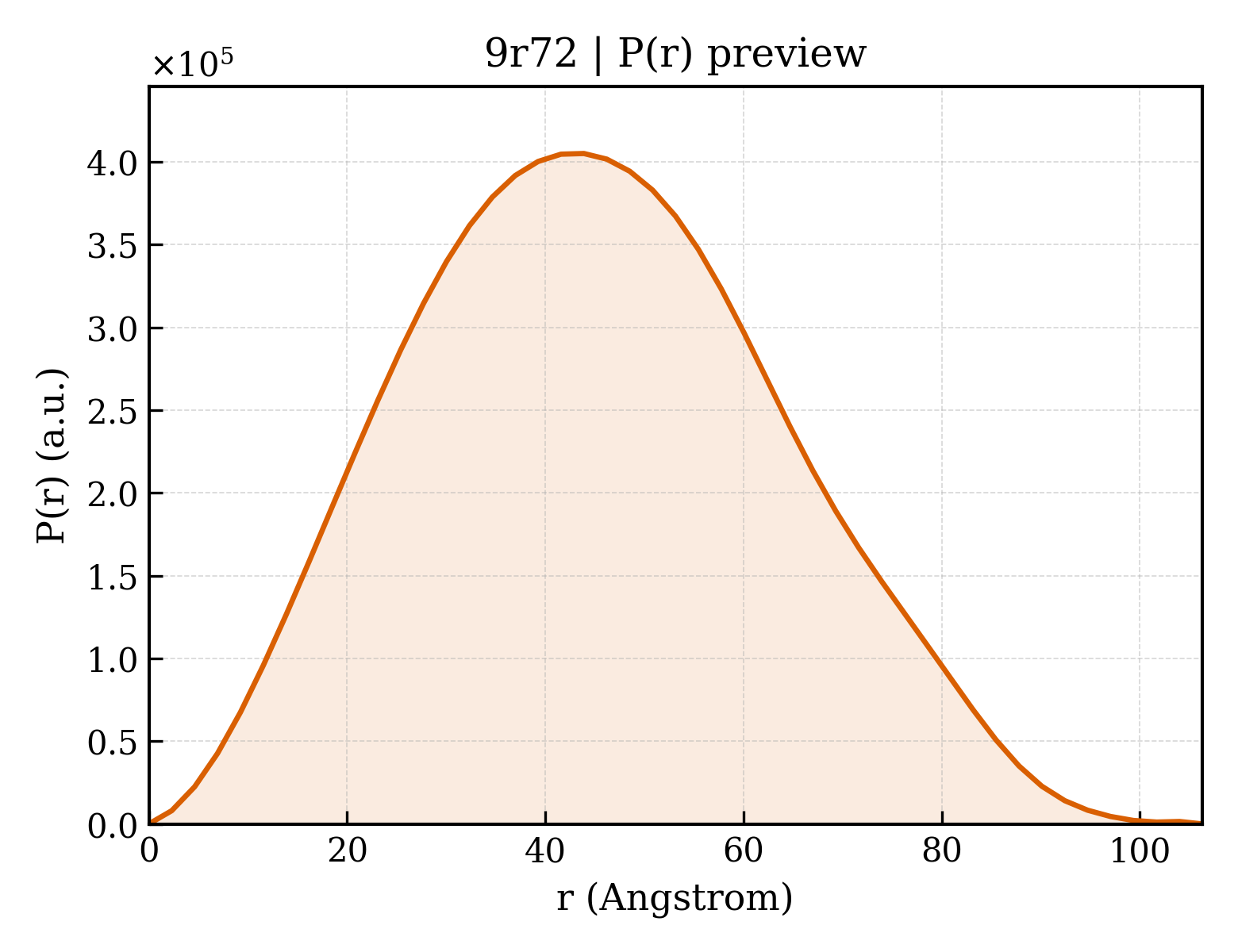

P(r) Distribution
1. Structure Basics
| entry_id | 9r72 |
| deposition_date | 2025-05-13 |
| title | Crystal structure of Odinarchaeota Adenylate kinase (OdinAK) S74G mutant |
| keywords | ADENYLATE KINASE, ODINARCHAEOTA, S74G mutant, PHOSPHOTRANSFERASE, TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.60 Å |
| rg_electron | 34.02 Å |
| i0 | 253961000.00 |
| molecular_weight | 132140.0 kDa |
| excluded_volume | 167300 ų |
| envelope_volume | 220350 ų |
| shell_volume | 52709 ų |
| envelope_diameter | 112.1 Å |
| shell_rg | 41.78 Å |
| envelope_rg | 33.42 Å |
| shape_rg | 33.99 Å |
| total_rg | 34.68 Å |
| total_atoms | 9287 |
| n_residues | 1148 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 106.3 Å |
| rg_real | 34.45 Å |
| rg_real_error | 0.63 Å |
| i0_real | 2.5400e+08 |
| i0_real_error | 3.5150e+06 |
| rg_reciprocal | 34.54 Å |
| i0_reciprocal | 254000000.0000 |
| total_estimate | 0.9027 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 43.9 Å |
| skewness | 0.178 |
| kurtosis | -0.505 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 50590000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.902 |
