HD6 defensin filament with phosphate

Method: ELECTRON MICROSCOPY D_max: 125.4 Å Quality: GOOD

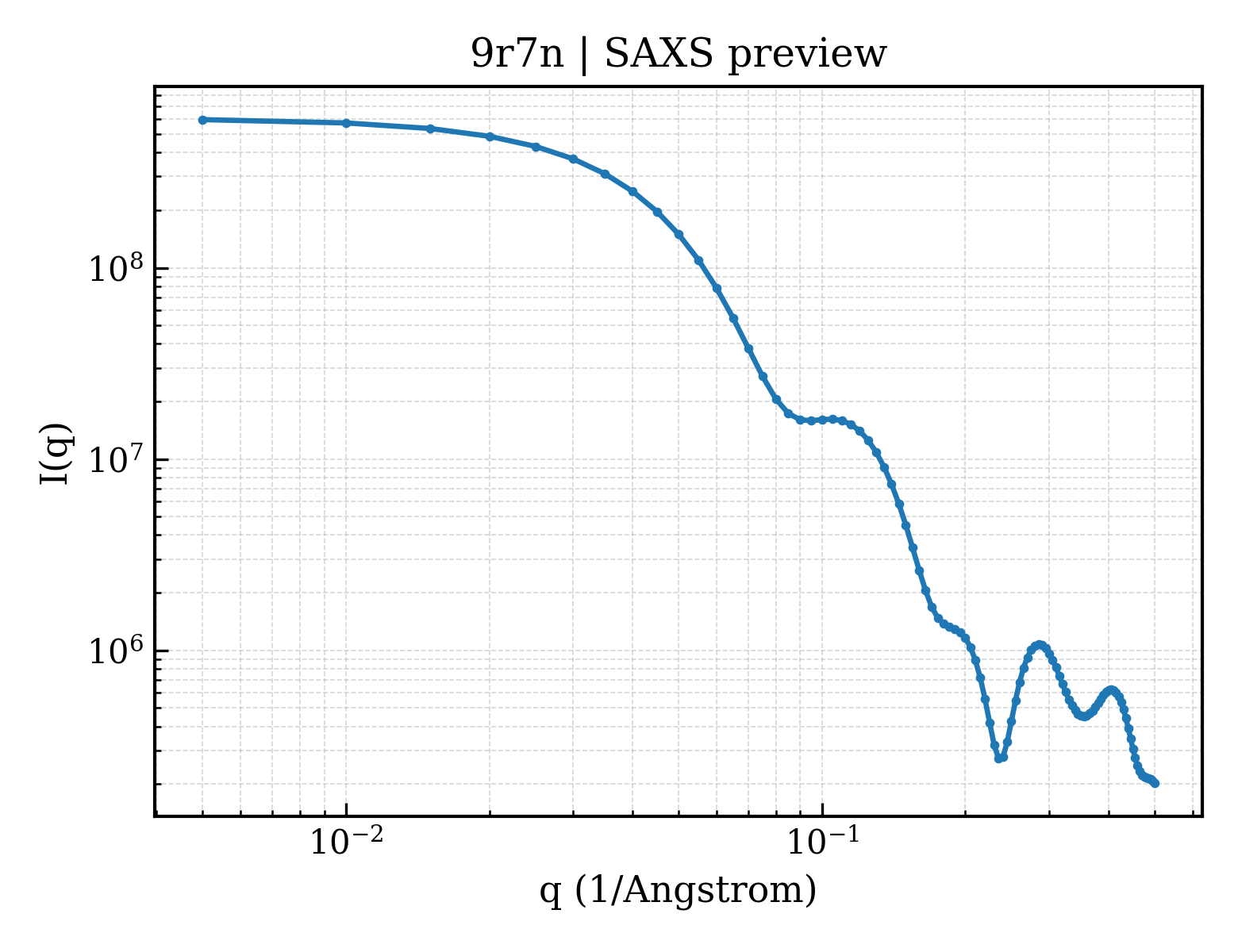

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9r7n
deposition_date	2025-05-14
title	HD6 defensin filament with phosphate
keywords	filament, intestinal, defensin, phosphate, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.01 Å
rg_electron	39.59 Å
i0	602957000.00
molecular_weight	178860.0 kDa
excluded_volume	214120 Å³
envelope_volume	302230 Å³
shell_volume	62568 Å³
envelope_diameter	131.4 Å
shell_rg	46.43 Å
envelope_rg	38.77 Å
shape_rg	39.60 Å
total_rg	39.92 Å
total_atoms	12265
n_residues	1536
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	125.4 Å
rg_real	39.83 Å
rg_real_error	0.90 Å
i0_real	6.0300e+08
i0_real_error	1.0760e+07
rg_reciprocal	40.01 Å
i0_reciprocal	603100000.0000
total_estimate	0.8906
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	57.9 Å
skewness	0.068
kurtosis	-0.524
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	88040000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.896

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.60 Å
resolution_method	—
num_particles	181856

description	Defensin-6
formula_weight	3719.3 kDa
src_method	man
entity_count	48

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v
atom_count	12265

HD6 defensin filament with phosphate

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

EM 3D

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 non-polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	5
