9r9l

sucrose hydrolase SuxB from Xanthomonas oryzae pv. oryzae in complex with glucose

Method: X-RAY DIFFRACTION D_max: 137.2 Å Quality: EXCELLENT

SAXS Profile

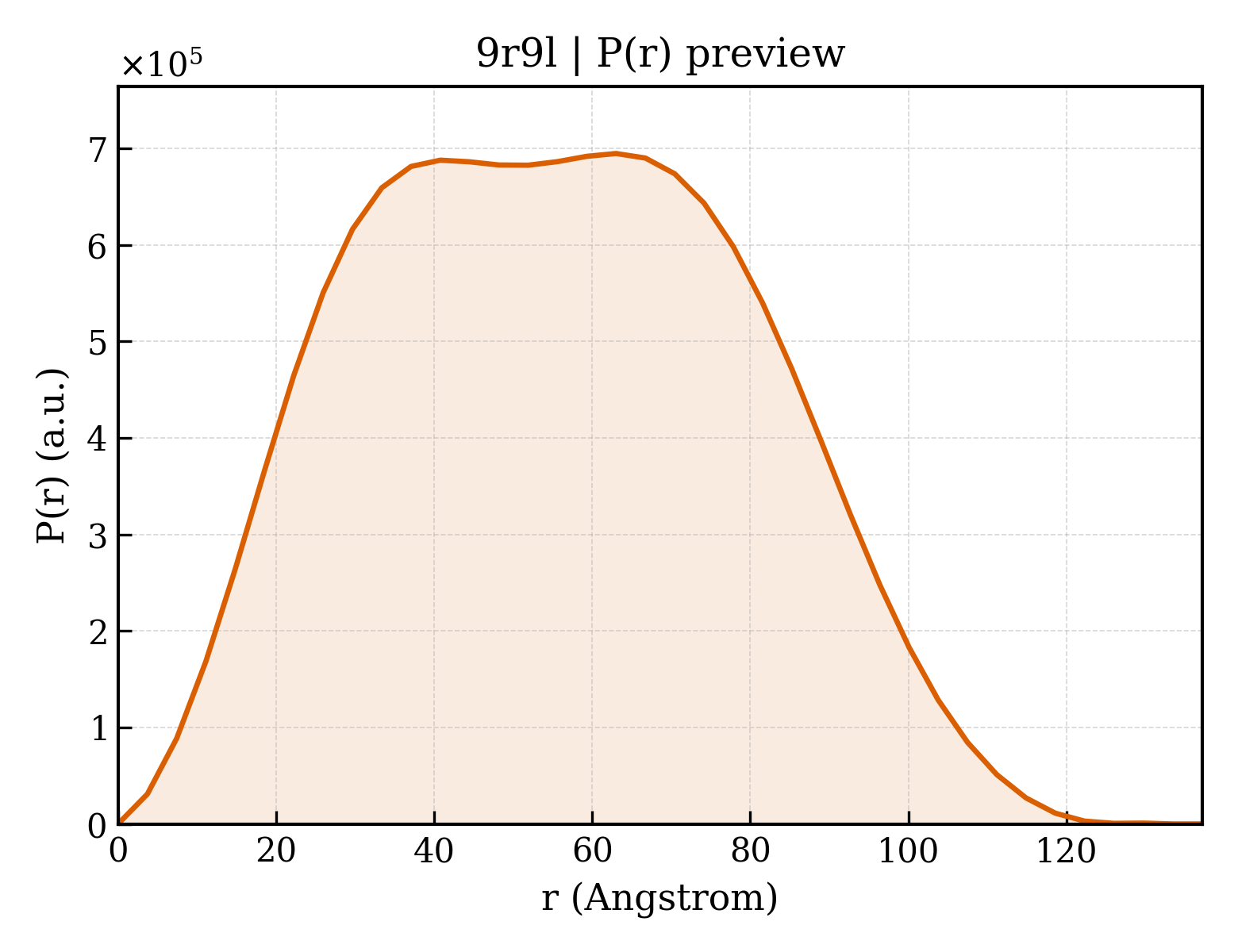

P(r) Distribution

▼

1. Structure Basics

entry_id	9r9l
deposition_date	2025-05-20
last_revision	2026-03-25
title	sucrose hydrolase SuxB from Xanthomonas oryzae pv. oryzae in complex with glucose
keywords	amylosucrase, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.91 Å
rg_electron	42.39 Å
i0	641665000.00
molecular_weight	205520.0 kDa
excluded_volume	255210 Å³
envelope_volume	318410 Å³
shell_volume	60943 Å³
envelope_diameter	138.1 Å
shell_rg	49.40 Å
envelope_rg	41.48 Å
shape_rg	42.39 Å
total_rg	42.67 Å
total_atoms	14519
n_residues	1864
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	137.2 Å
rg_real	42.80 Å
rg_real_error	1.21 Å
i0_real	6.4170e+08
i0_real_error	1.2440e+07
rg_reciprocal	42.91 Å
i0_reciprocal	641700000.0000
total_estimate	0.9009
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	3
r_peak_primary	63.0 Å
skewness	0.116
kurtosis	-0.764
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	213000000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.954

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Amylosucrase
formula_weight	69967.5 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	14524

MSTSPINSTILRAAFAAPLDPQRAAIVMARYDQHAPRLLDALQTLYGQRAHYAPWLTQWLGELGDLARQRPQALQTLDSTRHAGWFGEQHMLGYSAYADRFAGTLQGVAERVPYLQELGVRYLHLLPFLRARAGDNDGGFAVSDYGQVEPSLGSNDDLIALTTRLREADISLCADFVLNHTADDHAWAQAARAGDTRYLDYYHHFADRSLPDQYESALGQVFPHTAPGNFTWVDDTAQWMWTTFYPYQWDLNWSNPAVFGDMALAMLRLANLGVEAFRLDSTAYLWKRTGTDCMNQPEAHTLLVALRAVTDIVAPSVVMKAEAIVPMTQLPPYFGSGAGQGHECHLAYHSTLMAAGWSALALQRGDILHNVIAHSPPLPRNCAWLSYVRCHDDIGWNVLQHEAAGNAAQPPFSLRDVARFYANAVPGSYARGESFQSSGDGVHGTNGMAAALAGIQAAQEAGDAAGLAVAVNRLMLLYAIALAMPGVPLIYMGDELAMLNDTSYRDDPHRQHEGRWLHRPAMDWRLAAQRHDAESLSGTVYRRLRGLIQQRAALGALAADHALGSIALDDPRLFALSRGESFLAVHNFSDQPLEVELAAIGDGWELLAIGDDVDAAAPSDNVSLVLPAYGVRWLQRGA

Source

organism	Xanthomonas oryzae pv. oryzae
ncbi_taxonomy_id	64187
host_organism	Escherichia coli

Entity 2 non-polymer

description	POTASSIUM ION
formula_weight	39.1 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	alpha-D-glucopyranose
formula_weight	180.2 kDa
src_method	nat
entity_count	3

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

length_a	100.535 Å
length_b	172.726 Å
length_c	259.777 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	24

space_group	I 2 2 2
int_tables_number	23
crystal_system	—

resolution	2.950 Å
resolution_low	49.750 Å
r_factor	0.2328
r_work	0.2290
r_free	0.3018

fit	/app/data/saxs_computation/r9/9r9l/9r9l.fit
pddf	/app/data/pr_computation/r9/9r9l/9r9l.pr.out
profile	/app/data/saxs_computation/r9/9r9l/9r9l.dat
