9rc2
DvhD, periplasmic domain
SAXS Profile

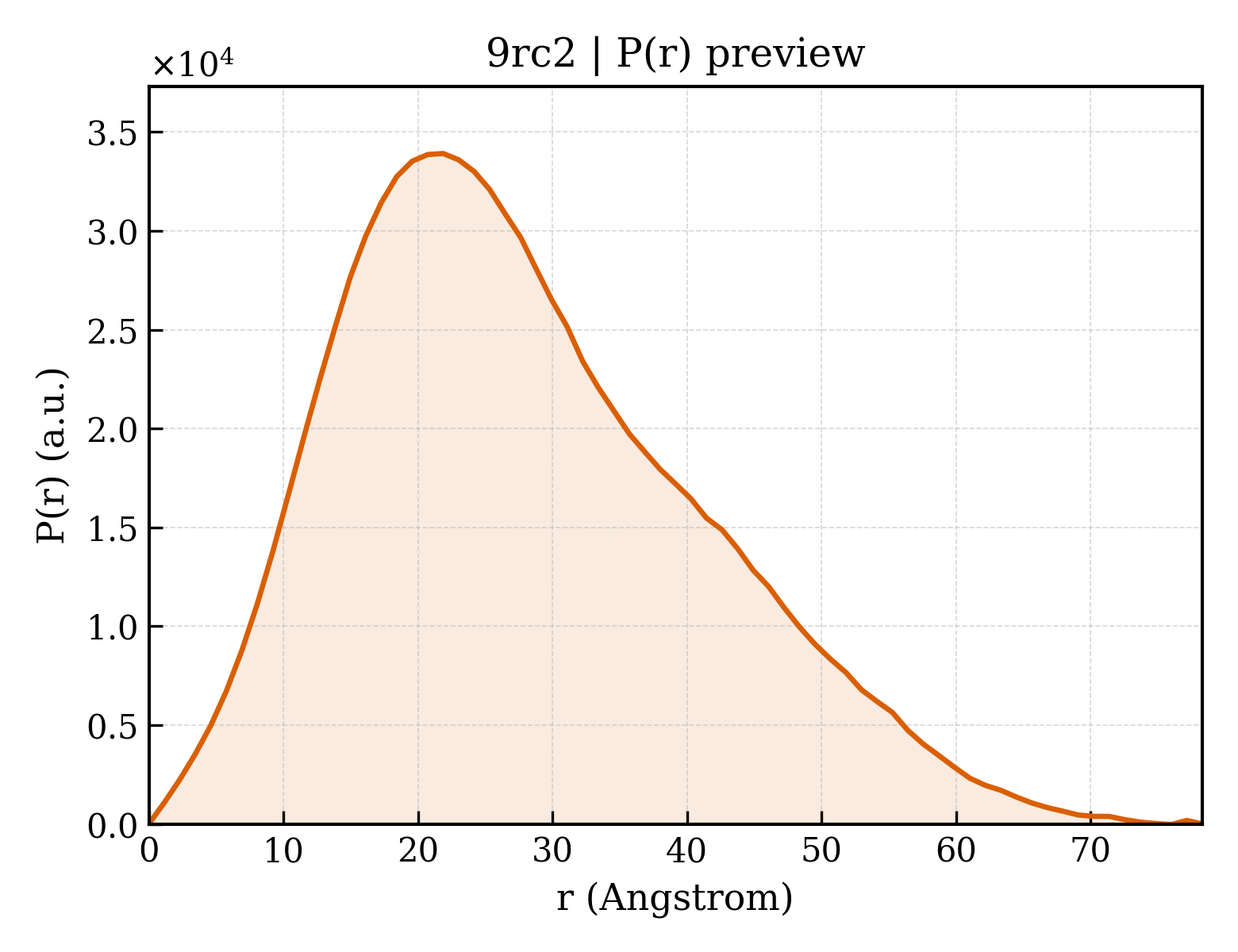

P(r) Distribution
1. Structure Basics
| entry_id | 9rc2 |
| deposition_date | 2025-05-27 |
| title | DvhD, periplasmic domain |
| keywords | Biofilm regulator, second messenger signaling, transmembrane, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.60 Å |
| rg_electron | 20.90 Å |
| i0 | 13234500.00 |
| molecular_weight | 27092.0 kDa |
| excluded_volume | 33823 ų |
| envelope_volume | 41571 ų |
| shell_volume | 17691 ų |
| envelope_diameter | 78.6 Å |
| shell_rg | 26.22 Å |
| envelope_rg | 21.37 Å |
| shape_rg | 20.92 Å |
| total_rg | 21.64 Å |
| total_atoms | 1881 |
| n_residues | 244 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 78.3 Å |
| rg_real | 21.78 Å |
| rg_real_error | 0.92 Å |
| i0_real | 1.3230e+07 |
| i0_real_error | 1.9430e+05 |
| rg_reciprocal | 21.75 Å |
| i0_reciprocal | 13230000.0000 |
| total_estimate | 0.5319 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 21.9 Å |
| skewness | 0.556 |
| kurtosis | -0.155 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6420000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.582; Stabil: 0.999; Sysdev: 0.161; Positv: 1.000; Valcen: 0.686; Smooth: 0.000 |
