9rcl

Laccase (multicopper oxidase) from Pediococcus pentosaceus 4618 mutant M455A-M456A soaked with Copper 10 minutes

Method: X-RAY DIFFRACTION D_max: 103.7 Å Quality: GOOD

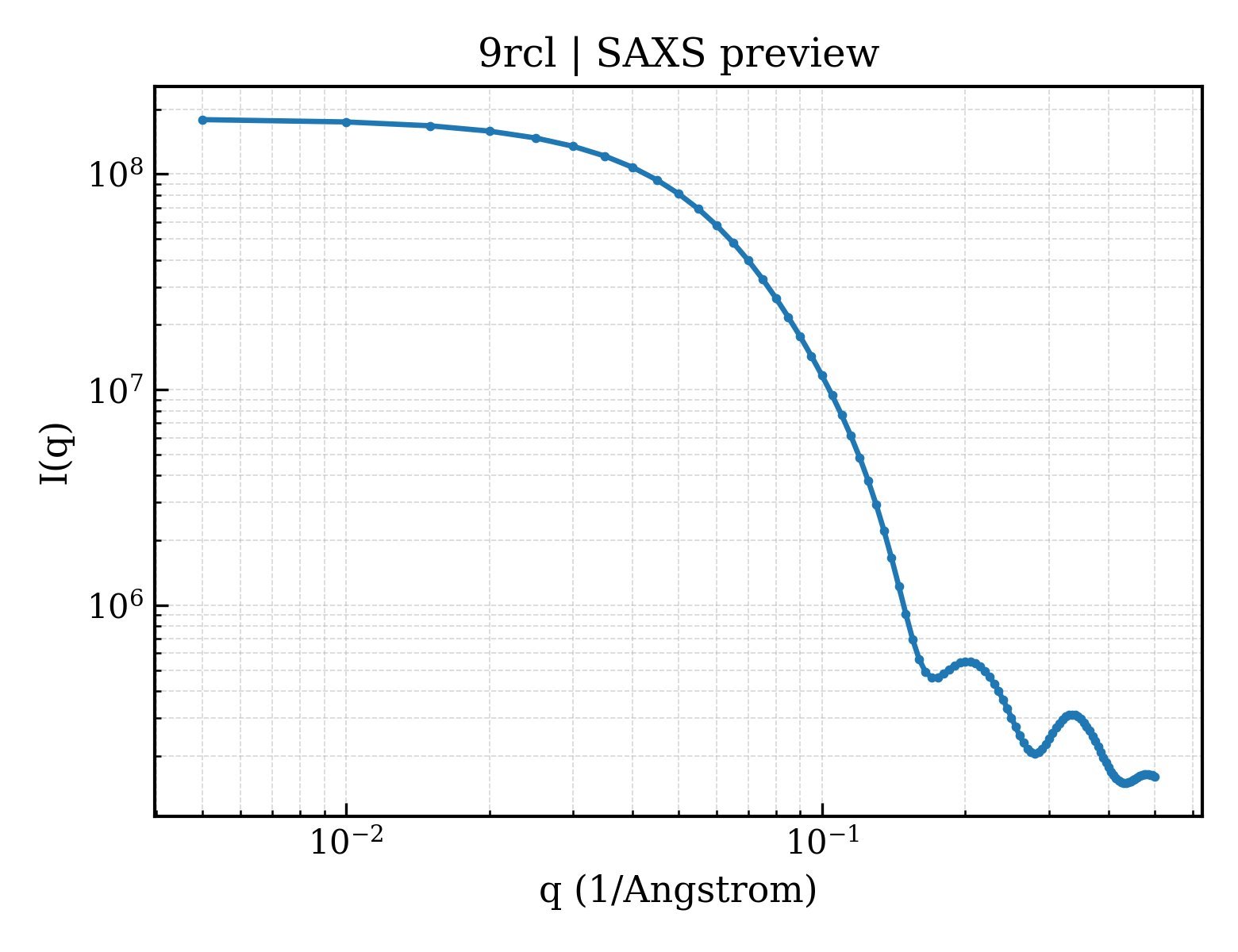

SAXS Profile

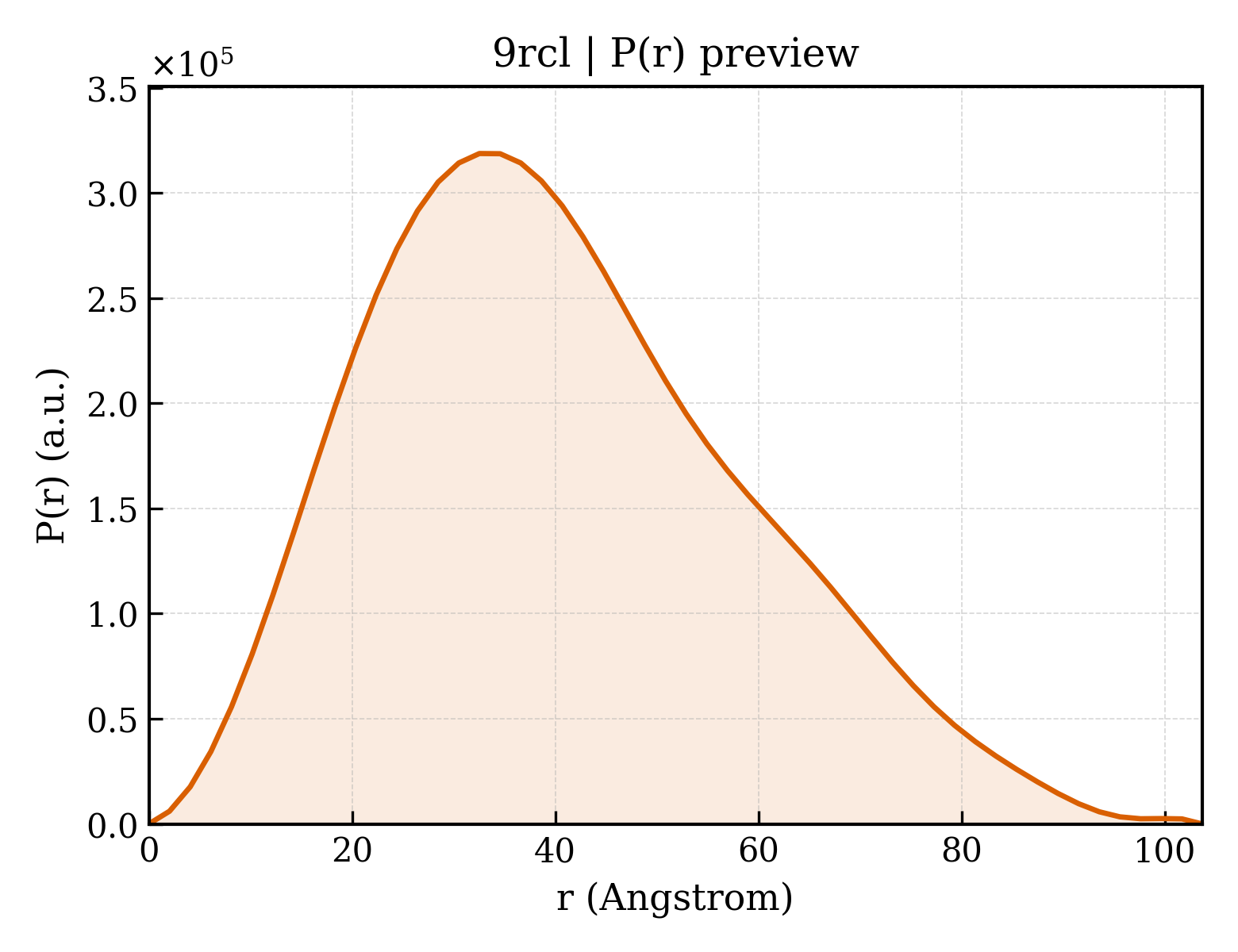

P(r) Distribution

▼

1. Structure Basics

entry_id	9rcl
deposition_date	2025-05-29
title	Laccase (multicopper oxidase) from Pediococcus pentosaceus 4618 mutant M455A-M456A soaked with Copper 10 minutes
keywords	Laccase, oxidoreductase, multicopper oxidase; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	31.23 Å
rg_electron	31.03 Å
i0	180403000.00
molecular_weight	104890.0 kDa
excluded_volume	129640 Å³
envelope_volume	154310 Å³
shell_volume	41323 Å³
envelope_diameter	111.8 Å
shell_rg	38.09 Å
envelope_rg	31.35 Å
shape_rg	31.06 Å
total_rg	31.50 Å
total_atoms	7343
n_residues	929
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	103.7 Å
rg_real	31.32 Å
rg_real_error	0.56 Å
i0_real	1.8040e+08
i0_real_error	2.8460e+06
rg_reciprocal	31.29 Å
i0_reciprocal	180400000.0000
total_estimate	0.8743
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	32.5 Å
skewness	0.458
kurtosis	-0.280
angular_range	— – 0.2550 Å⁻¹
current_alpha	0.0002
highest_alpha	60440000.0000
n_real_points	52
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.815; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.960

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Multicopper oxidase domain-containing protein
formula_weight	59733.3 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	E,A,B
atom_count	7636

MGSSHHHHHHSSGLVPRGSHMASMKNYTDYFFDEPAFDLHDGGYVPLEVSDAPEKPLNVPPLLKPDKETATDVYYTVTAEAGETQLLPGAKTKTWGYNTSLLGQTIVYRRGQHTHVTLKNTLPELTTFHWHGANVSGPYVDGGCHAPVYPGESKHIDFTLEQPATTLWLHAHPCPSTAEQVWHGLAAMVIVKDDHEASLPLPRNYGVDDIPVILQDRRFHENNQWDYRADYDPDGVAGPTAMINGTINPYFDVTTQKVRLRFLNGANRREWRLHFADDLPFTQIGGDGSLLPEPVKFTHLMLTCAERAEVIVDFGQYHEGDEVTLYTDDVPLLKFRIHAFKPDQTTLPDKLFDVKAPVVDPALPVRHVVMQGMDEGVAIDGKKFAMQRIDATQPIGKAQYWDVTNSNDAPGMVHPFHVHGTQFLVLSRNGHAPYPNEHGFKDTIGVNPGETVRLLVRFDLPGVYMYHCHIIEHEDGGAAAQIETFDPAKPKQEYKLMDMDTLMMALAKERGVKPSEIWMGGMQSYEKMGMKM

Source

organism	Pediococcus pentosaceus 4618
ncbi_taxonomy_id	1255
host_organism	Escherichia coli K-12

Entity 2 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	COPPER (II) ION
formula_weight	63.5 kDa
src_method	syn
entity_count	24

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	279

▶

6. Citations (2)

▶

length_a	123.590 Å
length_b	123.590 Å
length_c	179.931 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	18

space_group	P 32 2 1
int_tables_number	154
crystal_system	—

resolution	2.200 Å
resolution_low	58.510 Å
r_factor	0.1861
r_work	0.1845
r_free	0.2170

fit	/app/data/saxs_computation/rc/9rcl/9rcl.fit
pddf	/app/data/pr_computation/rc/9rcl/9rcl.pr.out
profile	/app/data/saxs_computation/rc/9rcl/9rcl.dat
