9rcu

Cardioderma bat coronavirus 2B receptor binding domain in complex with human CEACAM6

Method: X-RAY DIFFRACTION D_max: 158.4 Å Quality: REASONABLE

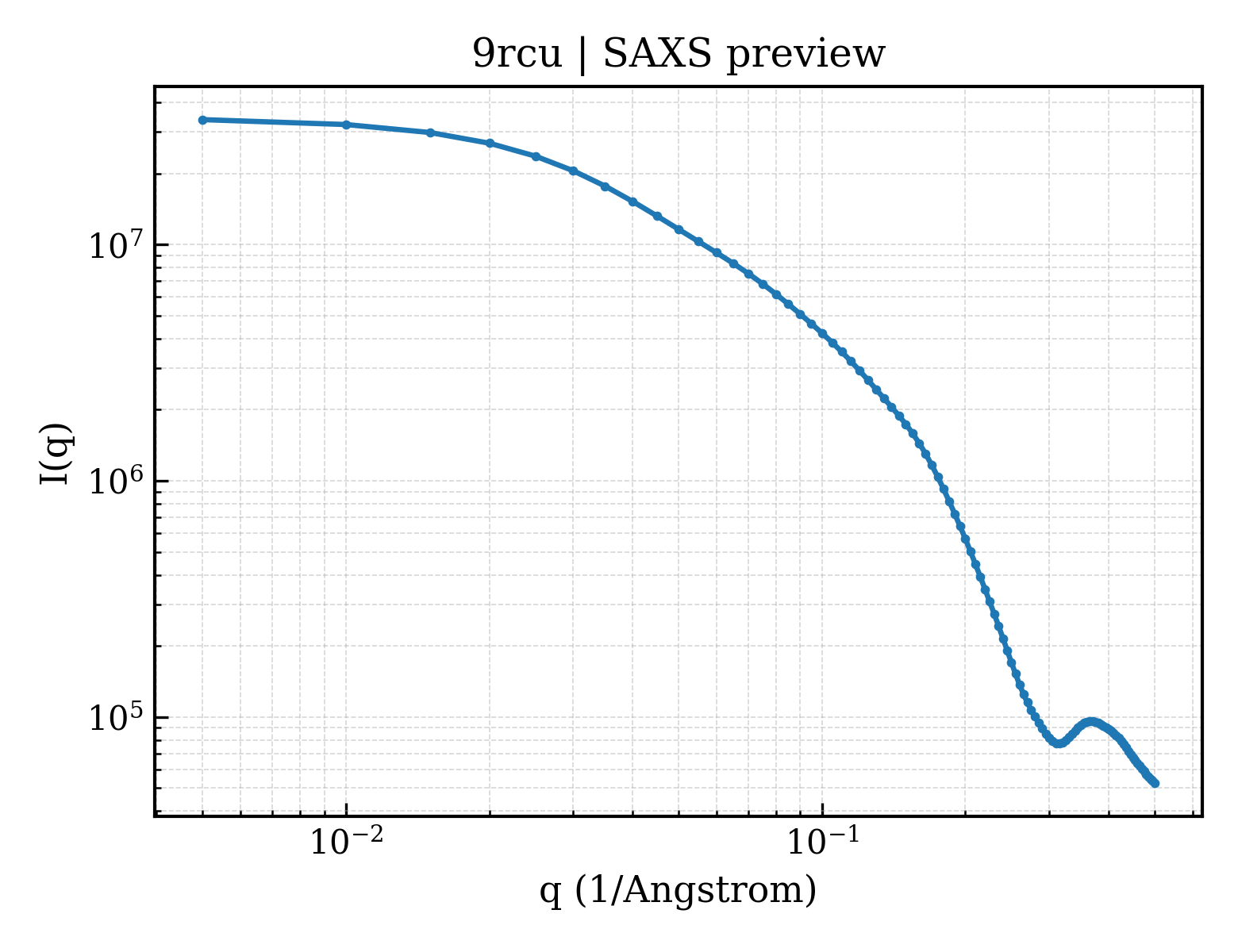

SAXS Profile

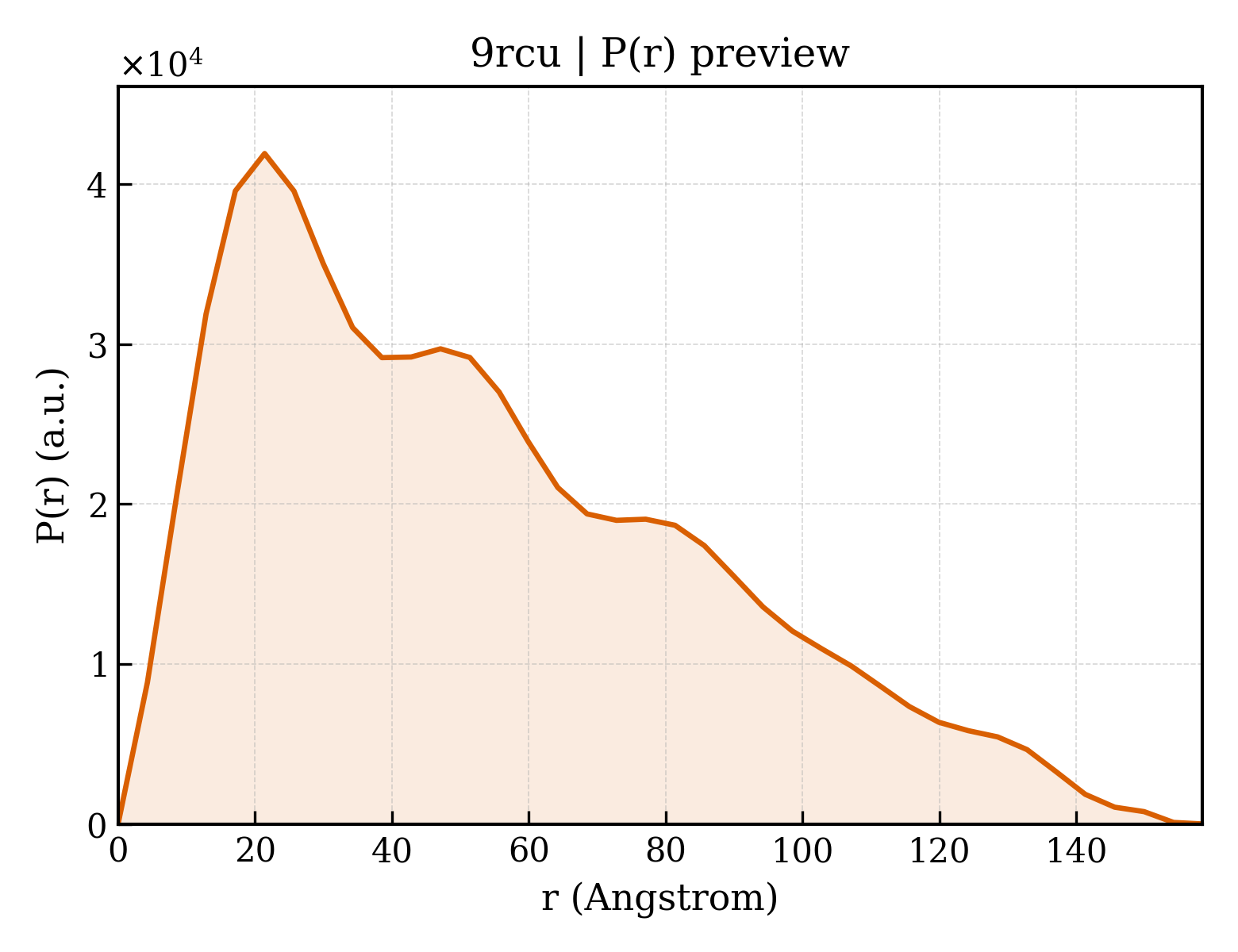

P(r) Distribution

▼

1. Structure Basics

entry_id	9rcu
deposition_date	2025-05-29
title	Cardioderma bat coronavirus 2B receptor binding domain in complex with human CEACAM6
keywords	RECEPTOR, RECEPTOR BINDING DOMAIN, VIRUS ENTRY, VIRUS:HOST INTERACTION, VIRAL PROTEIN; VIRAL PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.93 Å
rg_electron	44.59 Å
i0	34344000.00
molecular_weight	46482.0 kDa
excluded_volume	57950 Å³
envelope_volume	87156 Å³
shell_volume	20337 Å³
envelope_diameter	161.0 Å
shell_rg	37.48 Å
envelope_rg	45.20 Å
shape_rg	44.53 Å
total_rg	44.28 Å
total_atoms	3275
n_residues	401
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	158.4 Å
rg_real	44.03 Å
rg_real_error	2.40 Å
i0_real	3.4340e+07
i0_real_error	6.3090e+05
rg_reciprocal	42.94 Å
i0_reciprocal	34300000.0000
total_estimate	0.5826
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	21.4 Å
skewness	0.664
kurtosis	-0.381
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	1022000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.080; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.031; Smooth: 0.300

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Cell adhesion molecule CEACAM6
formula_weight	32685.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3275

KLTIESTPFNVAEGKEVLLLAHNLPQNRIGYSWYKGERVDGNSLIVGYVIGTQQATPGPAYSGRETIYPNASLLIQNVTQNDTGFYTLQVIKSDLVNEEATGQFHVYPELPKPSISSNNSNPVEDKDAVAFTCEPEVQNTTYLWWVNGQSLPVSPRLQLSNGNMTLTLLSVKRNDAGSYECEIQNPASANRSDPVTLNVLYGPDVPTISPSKANYRPGENLNLSCHAASNPPAQYSWFINGTFQQSTQELFIPNITVNNSGSYMCQAHNSATGLNRTTVTMITVSGSAPVLSKLEVLFQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Spike protein
formula_weight	16879.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

VALPYHATHSFVNFTVWRGSTDNGSFVYINGGPEPFCVNTTQFTTNFEQLNKTFTSIEAKLQGGDCPFTLASLNNYLSFDSICFSVQPVGASCTLSIQIGWMGYFIPWRDIYVTFKHGSTITGVTKAATGNDIFEAQKIEWHEKHHHHHH

Source

organism	Cardioderma bat coronavirus
ncbi_taxonomy_id	3119326
host_organism	Homo sapiens

Entity 3 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	2

Entity 4 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	47.553 Å
length_b	76.856 Å
length_c	204.975 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	2.990 Å
resolution_low	61.490 Å
r_factor	0.2550
r_work	0.2528
r_free	0.2973

fit	/app/data/saxs_computation/rc/9rcu/9rcu.fit
pddf	/app/data/pr_computation/rc/9rcu/9rcu.pr.out
profile	/app/data/saxs_computation/rc/9rcu/9rcu.dat
