9rcz
Structure of the N-terminal domain of non-structural protein 1 (Nsp1) from SARS-CoV-2
SAXS Profile

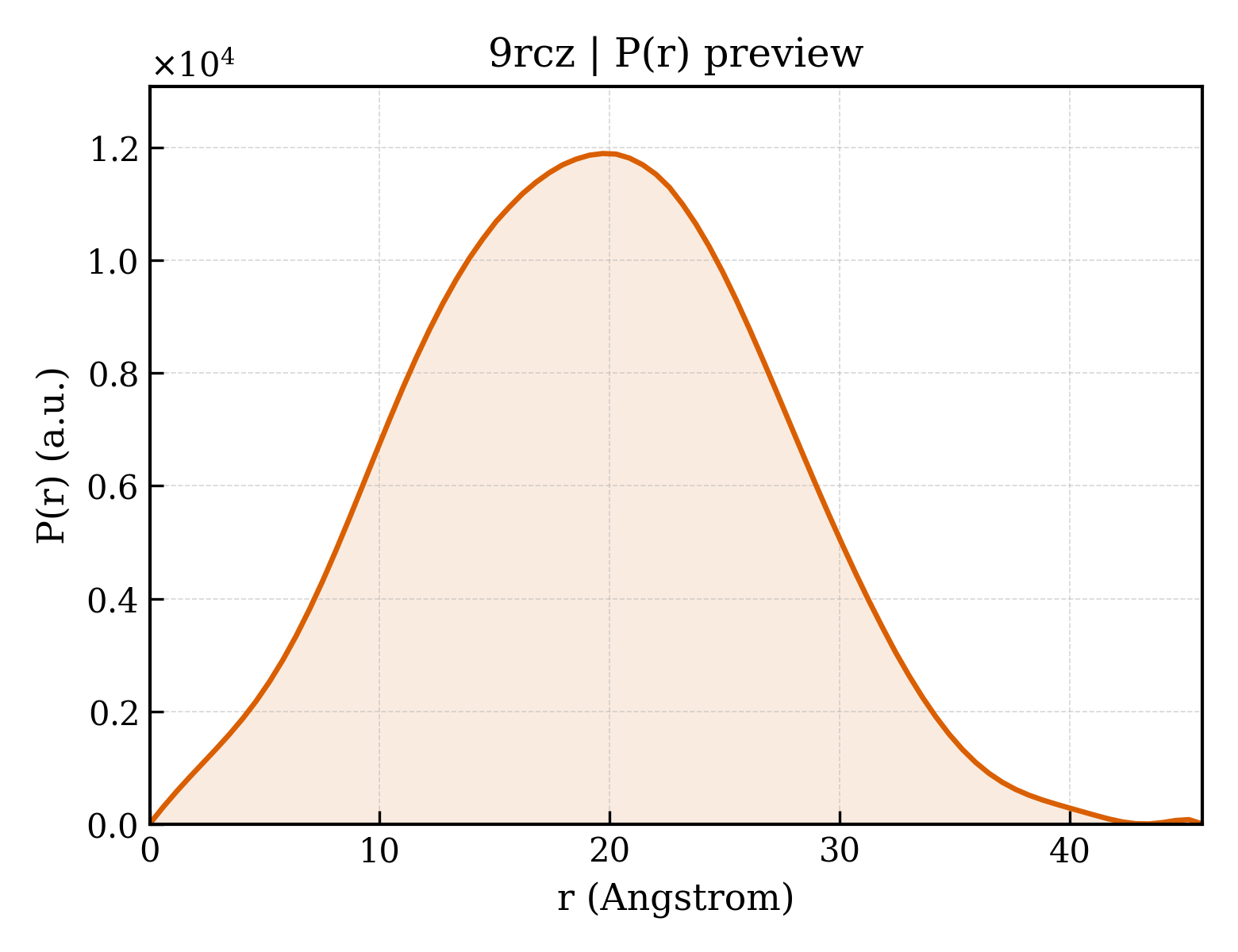

P(r) Distribution
1. Structure Basics
| entry_id | 9rcz |
| deposition_date | 2025-05-30 |
| title | Structure of the N-terminal domain of non-structural protein 1 (Nsp1) from SARS-CoV-2 |
| keywords | SARS-CoV-2, Nsp1, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.76 Å |
| rg_electron | 13.24 Å |
| i0 | 3045180.00 |
| molecular_weight | 12380.0 kDa |
| excluded_volume | 15675 ų |
| envelope_volume | 17863 ų |
| shell_volume | 11455 ų |
| envelope_diameter | 44.3 Å |
| shell_rg | 19.00 Å |
| envelope_rg | 13.60 Å |
| shape_rg | 13.22 Å |
| total_rg | 14.61 Å |
| total_atoms | 1766 |
| n_residues | 113 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.8 Å |
| rg_real | 14.64 Å |
| rg_real_error | 0.21 Å |
| i0_real | 3.0450e+06 |
| i0_real_error | 3.0260e+04 |
| rg_reciprocal | 14.65 Å |
| i0_reciprocal | 3045000.0000 |
| total_estimate | 0.7187 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 19.7 Å |
| skewness | 0.073 |
| kurtosis | -0.400 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 679900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.889; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.988; Smooth: 0.916 |
