9rg4

Unspecific peroxygenase from Psathyrella aberdarensis, Grogu variant, in complex with 5-formyl-2-furoic acid

Method: X-RAY DIFFRACTION Dmax: 83.5 Å Quality: EXCELLENT

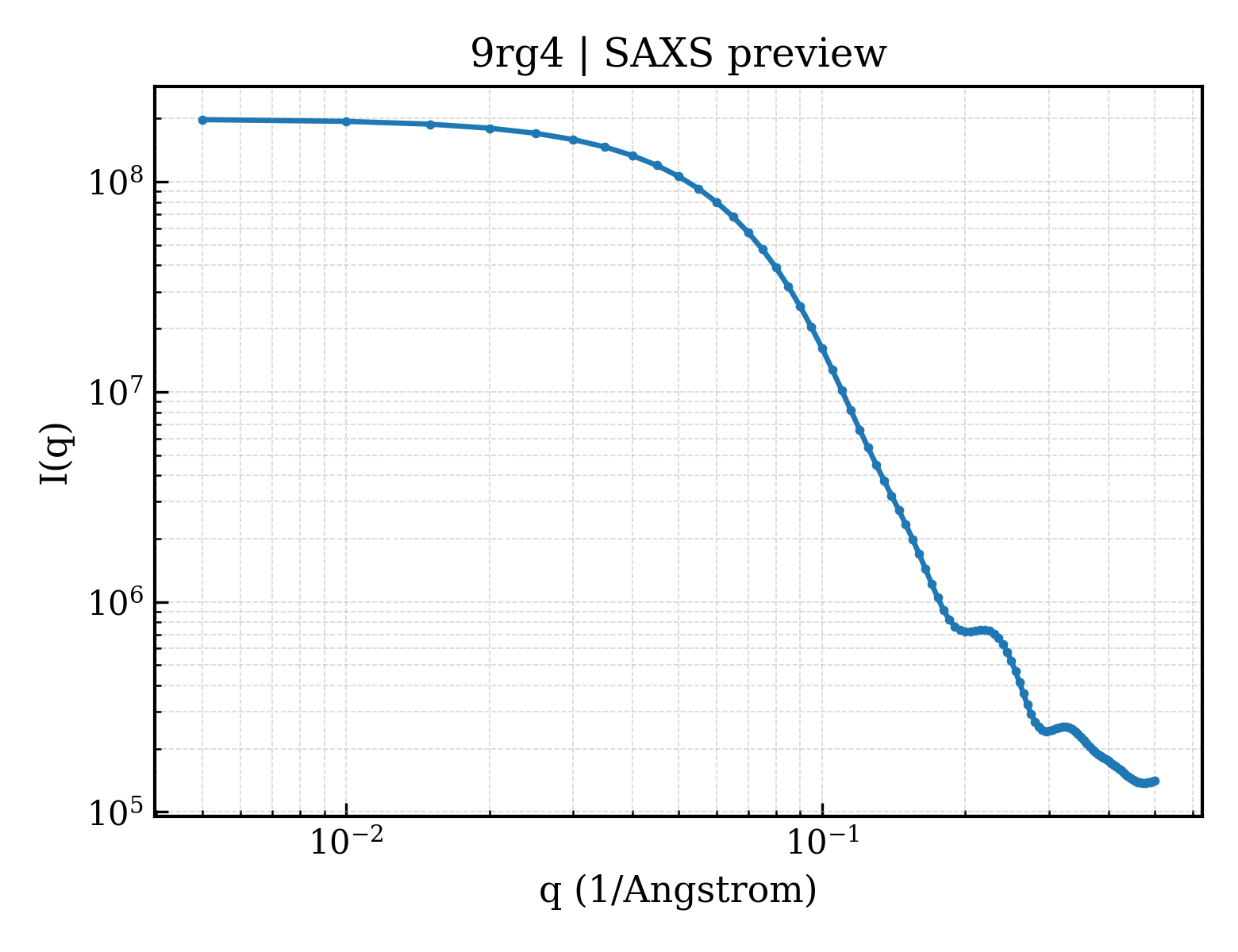

SAXS Profile

SAXS profile for 9rg4

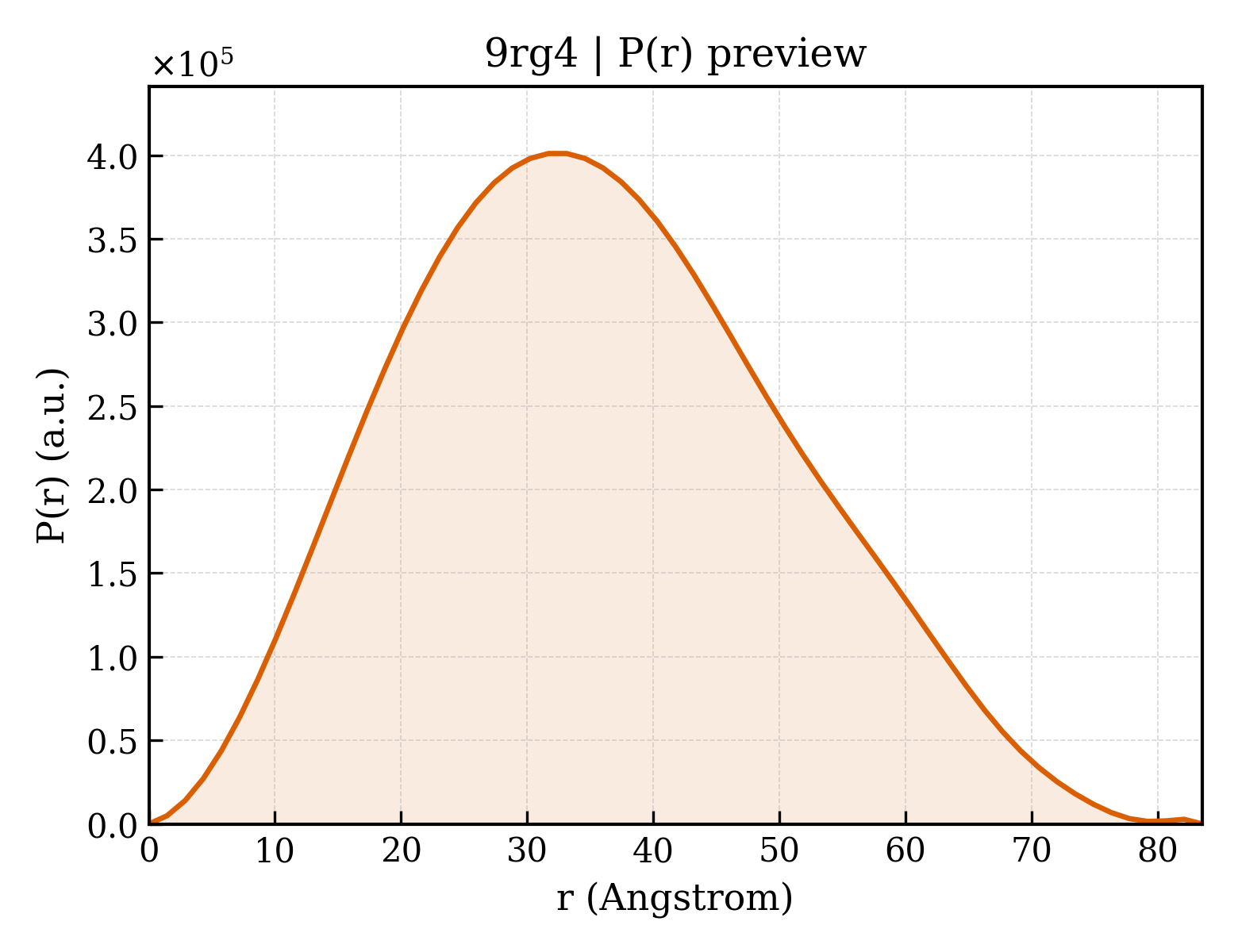

P(r) Distribution

P(r) distribution for 9rg4
▼

1. Structure Basics

entry_id9rg4
deposition_date2025-06-05
last_revision2026-04-01
titleUnspecific peroxygenase from Psathyrella aberdarensis, Grogu variant, in complex with 5-formyl-2-furoic acid
keywordsPeroxygenase, peroxidase, OXIDOREDUCTASE, complex, 5-formyl-2-furoic acid; OXIDOREDUCTASE
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier27.36 Å
rg_electron26.61 Å
i0198830000.00
molecular_weight74588.0 kDa
excluded_volume71895 ų
envelope_volume117170 ų
shell_volume35747 ų
envelope_diameter89.6 Å
shell_rg34.73 Å
envelope_rg26.62 Å
shape_rg26.57 Å
total_rg27.27 Å
total_atoms5587
n_residues668
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax83.5 Å
rg_real27.26 Å
rg_real_error0.48 Å
i0_real1.9880e+08
i0_real_error2.9900e+06
rg_reciprocal27.30 Å
i0_reciprocal198800000.0000
total_estimate0.9083
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary82.1 Å
skewness0.242
kurtosis-0.500
angular_range— – 0.2900 Å−1
current_alpha0.0000
highest_alpha31380000.0000
n_real_points59
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.952
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (14)

▶

6. Citations (1)

▶

7. Files & Curves (10)
