9rkl
Staphylokinase THR174
SAXS Profile

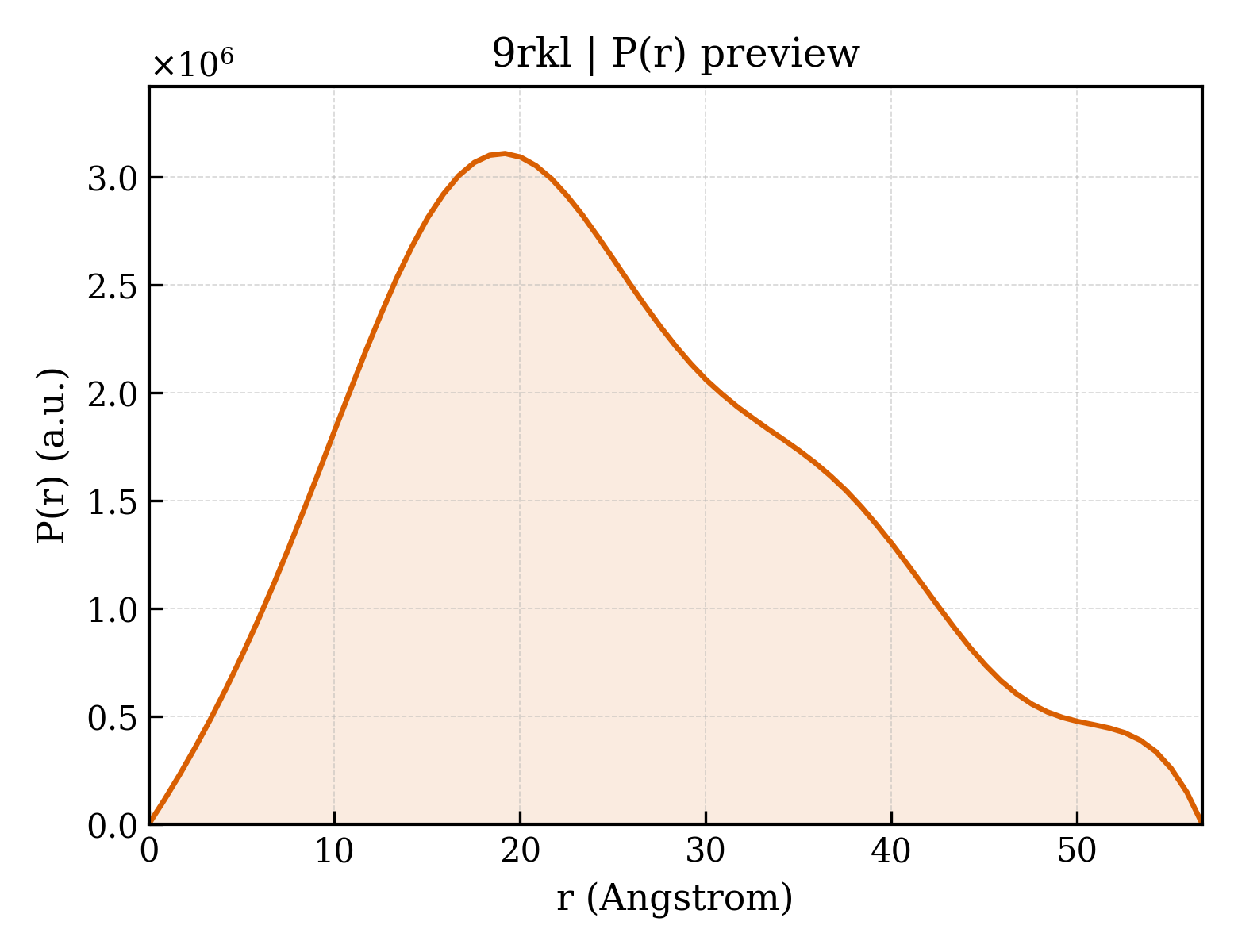

P(r) Distribution
1. Structure Basics
| entry_id | 9rkl |
| deposition_date | 2025-06-13 |
| last_revision | 2026-04-15 |
| title | Staphylokinase THR174 |
| keywords | Thrombolysis, thrombolytic agent, stroke, PROTEIN BINDING; PROTEIN BINDING |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.19 Å |
| rg_electron | 20.93 Å |
| i0 | 1175240000.00 |
| molecular_weight | 308590.0 kDa |
| excluded_volume | 393110 ų |
| envelope_volume | 116760 ų |
| shell_volume | 31079 ų |
| envelope_diameter | 100.9 Å |
| shell_rg | 36.71 Å |
| envelope_rg | 36.05 Å |
| shape_rg | 20.89 Å |
| total_rg | 21.49 Å |
| total_atoms | 43520 |
| n_residues | 2720 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.8 Å |
| rg_real | 19.25 Å |
| rg_real_error | 0.13 Å |
| i0_real | 1.1130e+09 |
| i0_real_error | 1.1110e+07 |
| rg_reciprocal | 21.69 Å |
| i0_reciprocal | 1175000000.0000 |
| total_estimate | 0.6770 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 19.2 Å |
| skewness | 0.428 |
| kurtosis | -0.442 |
| angular_range | — – 0.3750 Å−1 |
| current_alpha | 2.4690 |
| highest_alpha | 577800.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.006; Oscil: 0.958; Stabil: 0.992; Sysdev: 0.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.000 |
