1. Protein Identity and Related Structures Protein Identity & Related Structures

Multidrug resistance protein NorM

Vibrio cholerae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	NabFab HC × 1 NabFab LC × 1 NorM-Nb17_4 × 1 Anti-Fab nanobody × 1 DOXORUBICIN × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3LML9_VIBCM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–461； UniProt 1–461

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9rsj
Deposition date deposition_date	2025-07-01
Structure title title	Cryo-EM structure of MATE transporter NorM-VC in complex with doxorubicin
Keywords keywords	NabFab, substrate, multidrug transporter, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9rsj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9rsj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

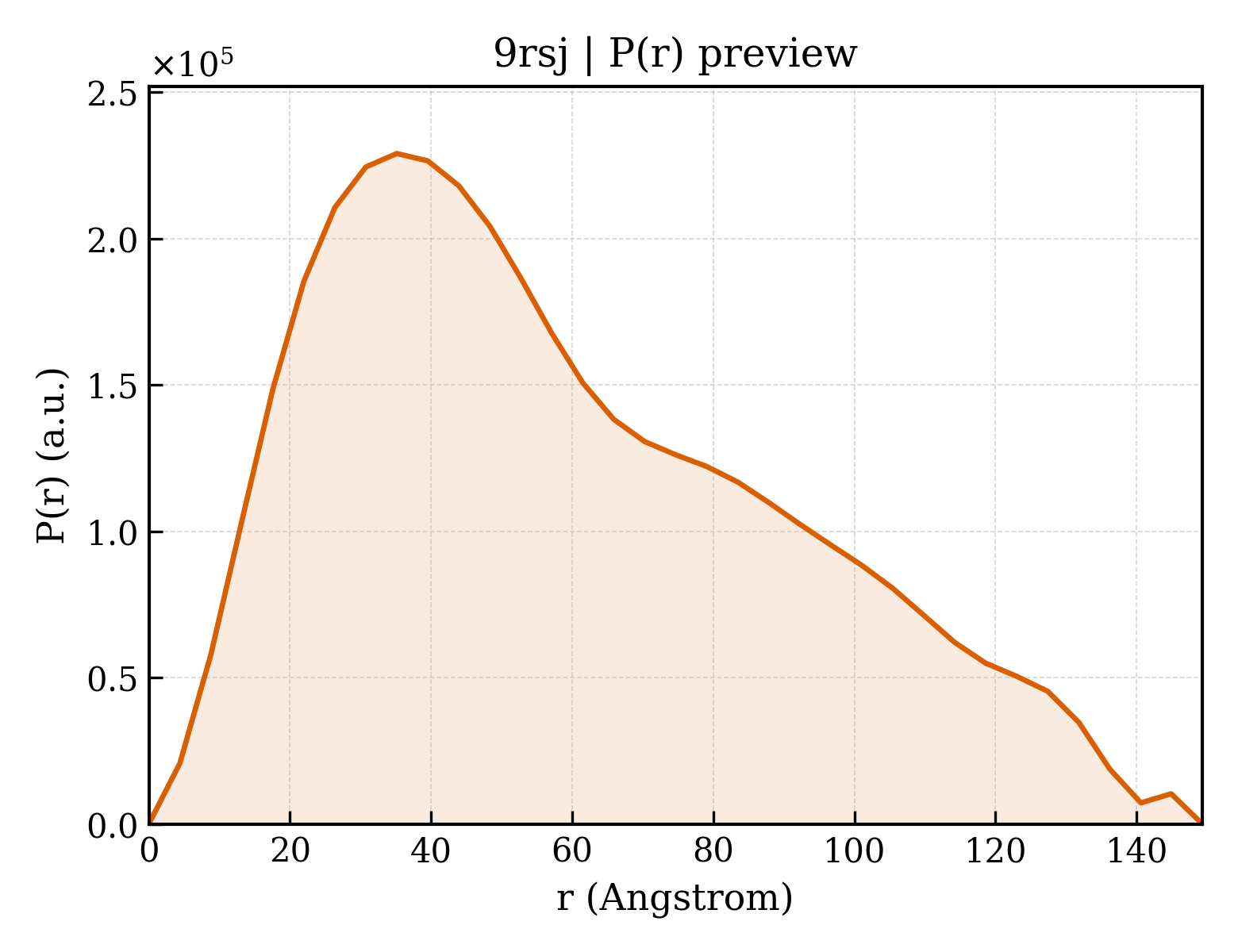

9rsj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.34 Å
Rg (electron density)	47.38 Å
Total Rg	47.40 Å
Atom count	8656
Residues	1134
Excluded volume	155340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9rsj__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Multidrug resistance protein NorM
Molecular weight formula_weight	49892.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8664

MENSVHRYKKEASNLIKLATPVLIASVAQTGMGFVDTIMAGGVSAIDMAAVSIAASIWLPSILFGVGLLMALVPVVAQLNGAGRQHKIPFEVHQGLILALLVSVPIIAVLFQTQFIIRFMDVEEAMATKTVGYMHAVIFAVPAYLLFQALRSFTDGMSLTKPAMVIGFIGLLLNIPLNWIFVYGKFGAPELGGVGCGVATAIVYWIMLLLLLFYIVTSKRLAHVKVFETFHKPQPKELIRLFRLGFPVAAALFFEVTLFAVVALLVAPLGSTVVAAHQVALNFSSLVFMFPMSIGAAVSIRVGHKLGEQDTKGAAIAANVGLMTGLATACITALLTVLFREQIALLYTENQVVVALAMQLLLFAAIYQCMDAVQVVAAGSLRGYKDMTAIFHRTFISYWVLGLPTGYILGMTNWLTEQPLGAKGFWLGFIIGLSAAALMLGQRLYWLQKQSDDVQLHLAAK

Source Source

Source organism organism	Vibrio cholerae
NCBI taxonomy ID ncbi_taxonomy_id	666
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	NabFab HC
Molecular weight formula_weight	25684.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EISEVQLVESGGGLVQPGGSLRLSCAASGFNFSYYSIHWVRQAPGKGLEWVAYISSSSSYTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARGYQYWQYHASWYWNGGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	NabFab LC
Molecular weight formula_weight	23258.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQSSSSLITFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	NorM-Nb17_4
Molecular weight formula_weight	14357.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	N

QRQLVESGGGLVQPGGSLRLSCAASGIIFKINDMGWFRQAPGKEREGVAGITSGGRTNYADSVKGRFIISRDNVKNTVYLQMNSLEPEDTAVYYCKSDGLISYAASQLSTYWGKGTPVTVSSHHHHHHEPEA

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Anti-Fab nanobody
Molecular weight formula_weight	13390.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

GSQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 non-polymer

Description description	DOXORUBICIN
Molecular weight formula_weight	543.5 kDa
Source method src_method	nat
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	327809
