Crystal structure of the human METTL3-METTL14 in complex with compound 4

Method: X-RAY DIFFRACTION D_max: 85.1 Å Quality: GOOD

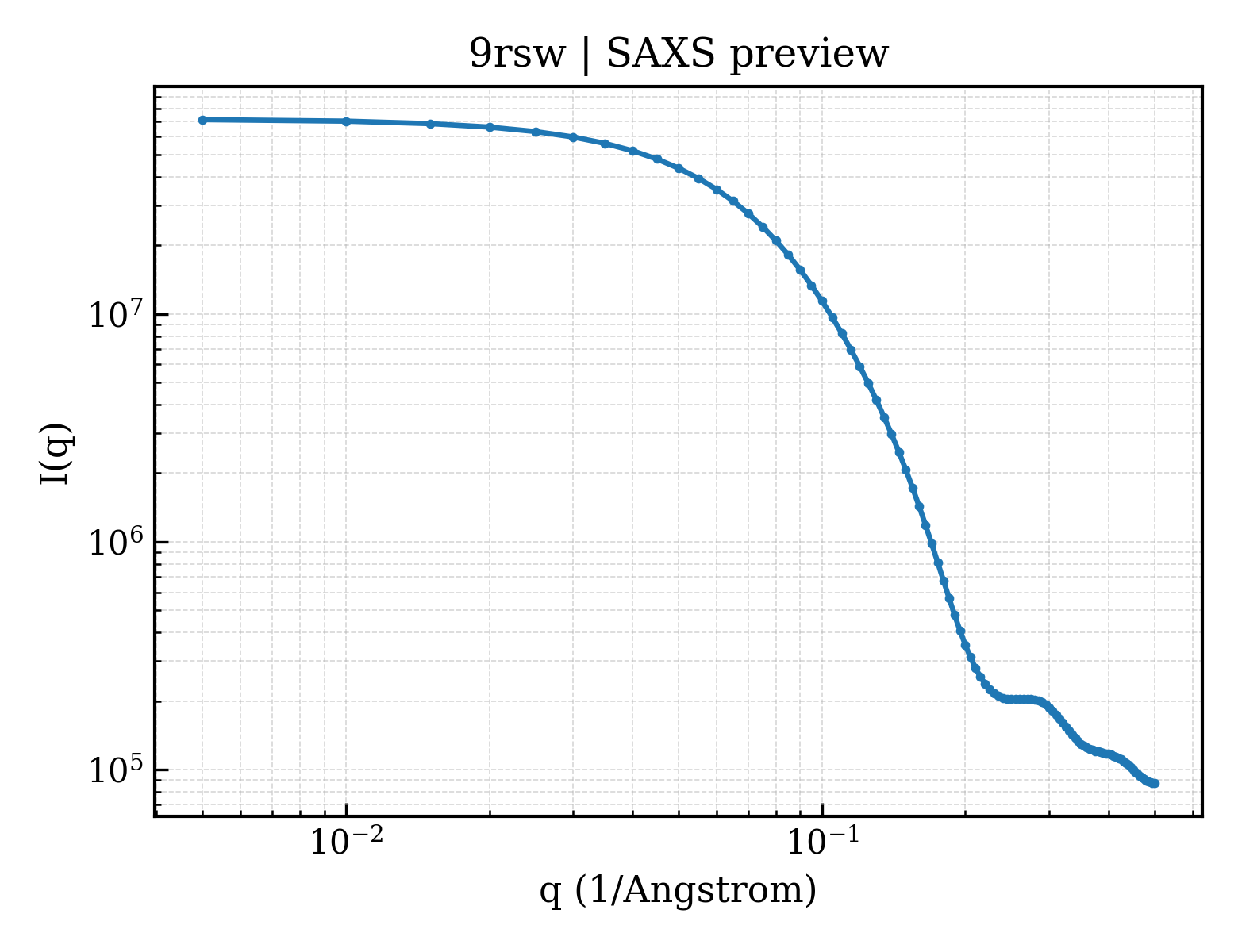

SAXS Profile

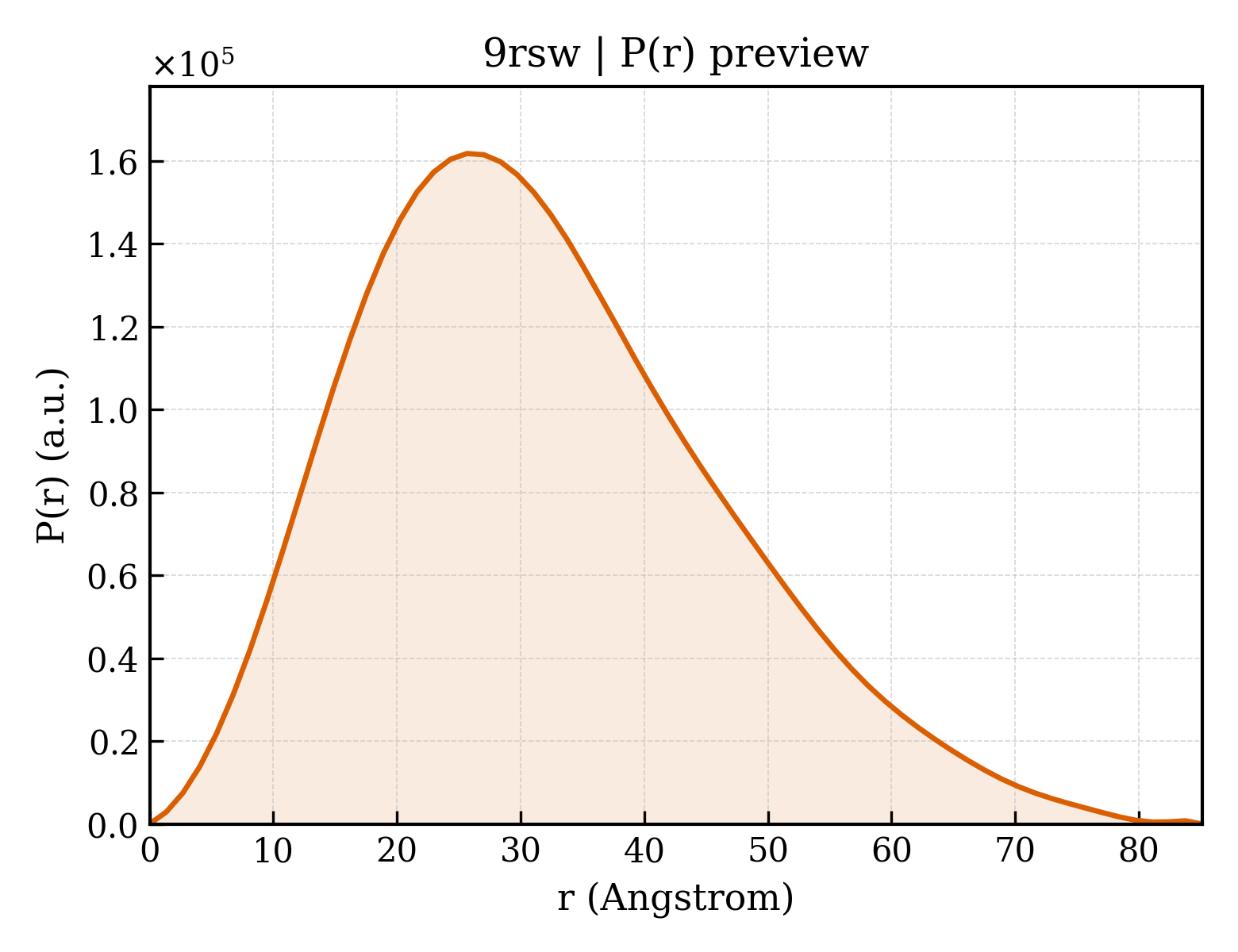

P(r) Distribution

▼

1. Structure Basics

entry_id	9rsw
deposition_date	2025-07-01
title	Crystal structure of the human METTL3-METTL14 in complex with compound 4
keywords	METTL3, inhibitor, complex, m6A, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.49 Å
rg_electron	23.96 Å
i0	71701900.00
molecular_weight	44757.0 kDa
excluded_volume	43520 Å³
envelope_volume	71729 Å³
shell_volume	25731 Å³
envelope_diameter	88.8 Å
shell_rg	30.49 Å
envelope_rg	24.18 Å
shape_rg	23.96 Å
total_rg	24.52 Å
total_atoms	3394
n_residues	441
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	85.1 Å
rg_real	24.60 Å
rg_real_error	0.61 Å
i0_real	7.1700e+07
i0_real_error	9.8980e+05
rg_reciprocal	24.57 Å
i0_reciprocal	71700000.0000
total_estimate	0.8498
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.7 Å
skewness	0.519
kurtosis	-0.099
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	16240000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.732; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	N6-adenosine-methyltransferase catalytic subunit
formula_weight	26017.8 kDa
ec_number	2.1.1.348
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3402

MALTQSVGGDSSADRLFPPQWICCDIRYLDVSILGKFAVVMADPPWDIHMELPYGTLTDDEMRRLNIPVLQDDGFLFLWVTGRAMELGRECLNLWGYERVDEIIWVKTNQLQRIIRTGRTGHWLNHGKEHCLVGVKGNPQGFNQGLDCDVIVAEVRSTSHKPDEIYGMIERLSPGTRKIELFGRPHNVQPNWITLGNQLDGIHLLDPDVVARFKQRYPDGIISKPKNL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	N(6)-adenosine-methyltransferase non-catalytic subunit METTL14
formula_weight	35690.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MHHHHHHSSGRENLYFQGLKGTQSLNPHNDYCQHFVDTGHRPQNFIRDVGLADRFEEYPKLRELIRLKDELIAKSNTPPMYLQADIEAFDIRELTPKFDVILLEPPLEEYYRETGITANEKCWTWDDIMKLEIDEIAAPRSFIFLWCGSGEGLDLGRVCLRKWGYRRCEDICWIKTNKNNPGKTKTLDPKAVFQRTKEHCLMGIKGTVKRSTDGDFIHANVDIDLIITEEPEIGNIEKPVEIFHIIEHFCLGRRRLHLFGRDSTIRPGWLTVGPTLTNSNYNAETYASYFSAPNSYLTGCTEEIERL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	8-[4-[(4,4-dimethylpiperidin-1-yl)methyl]-2-oxidanyl-phenyl]-2-[6-(methylamino)pyrimidin-4-yl]-2,5,8-triazaspiro[3.5]nonan-6-one
formula_weight	465.6 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	ACETATE ION
formula_weight	59.0 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	8

▶

6. Citations (1)

▶

length_a	64.190 Å
length_b	64.190 Å
length_c	227.340 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 32 2 1
int_tables_number	154
crystal_system	trigonal

resolution	2.560 Å
resolution_low	44.820 Å
r_factor	0.2195
r_work	0.2178
r_free	0.2510

fit	/app/data/saxs_computation/rs/9rsw/9rsw.fit
pddf	/app/data/pr_computation/rs/9rsw/9rsw.pr.out
profile	/app/data/saxs_computation/rs/9rsw/9rsw.dat
