9rux

Cryo-EM structure of DISC1 core

Method: ELECTRON MICROSCOPY D_max: 190.3 Å Quality: GOOD

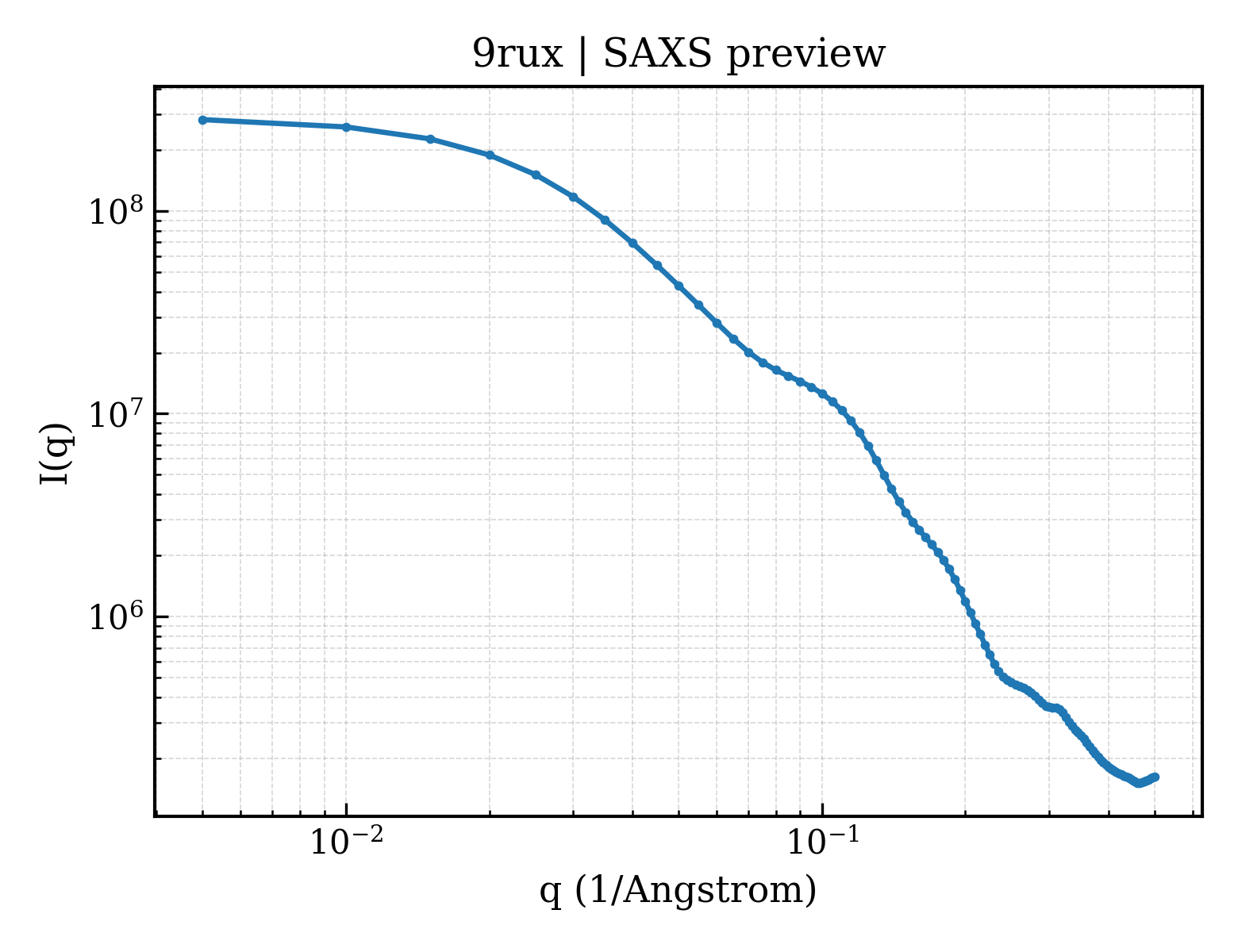

SAXS Profile

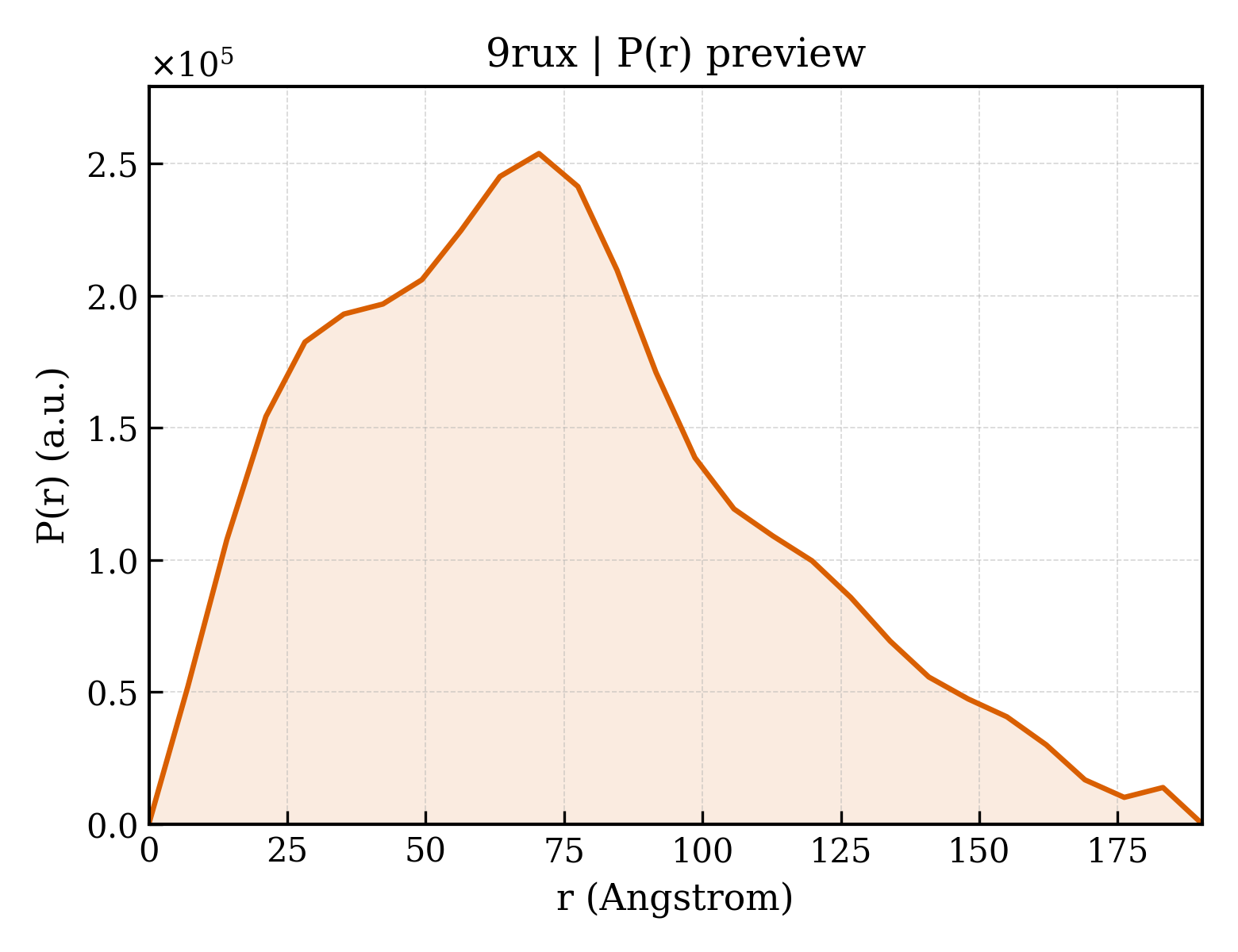

P(r) Distribution

P(r) distribution for 9rux

▼

1. Structure Basics

entry_id	9rux
deposition_date	2025-07-05
title	Cryo-EM structure of DISC1 core
keywords	Scaffold, complex, tetramer, coiled coil, UVR domain, psychiatric disorder, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	57.28 Å
rg_electron	58.74 Å
i0	289977000.00
molecular_weight	137220.0 kDa
excluded_volume	171010 Å³
envelope_volume	270030 Å³
shell_volume	45762 Å³
envelope_diameter	202.9 Å
shell_rg	46.38 Å
envelope_rg	58.38 Å
shape_rg	58.77 Å
total_rg	58.18 Å
total_atoms	19428
n_residues	1216
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	190.3 Å
rg_real	57.90 Å
rg_real_error	2.49 Å
i0_real	2.9000e+08
i0_real_error	6.8100e+06
rg_reciprocal	56.73 Å
i0_reciprocal	289500000.0000
total_estimate	0.7920
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	70.5 Å
skewness	0.506
kurtosis	-0.260
angular_range	— – 0.1350 Å⁻¹
current_alpha	0.0000
highest_alpha	8741000.0000
n_real_points	28
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.766; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.810; Smooth: 0.183

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
