9rvv

Human TRPC5 in complex with (-) englerin A, partial occupancy (2EA:2LIP stoichiometry) state 2

Method: ELECTRON MICROSCOPY D_max: 133.1 Å Quality: GOOD

SAXS Profile

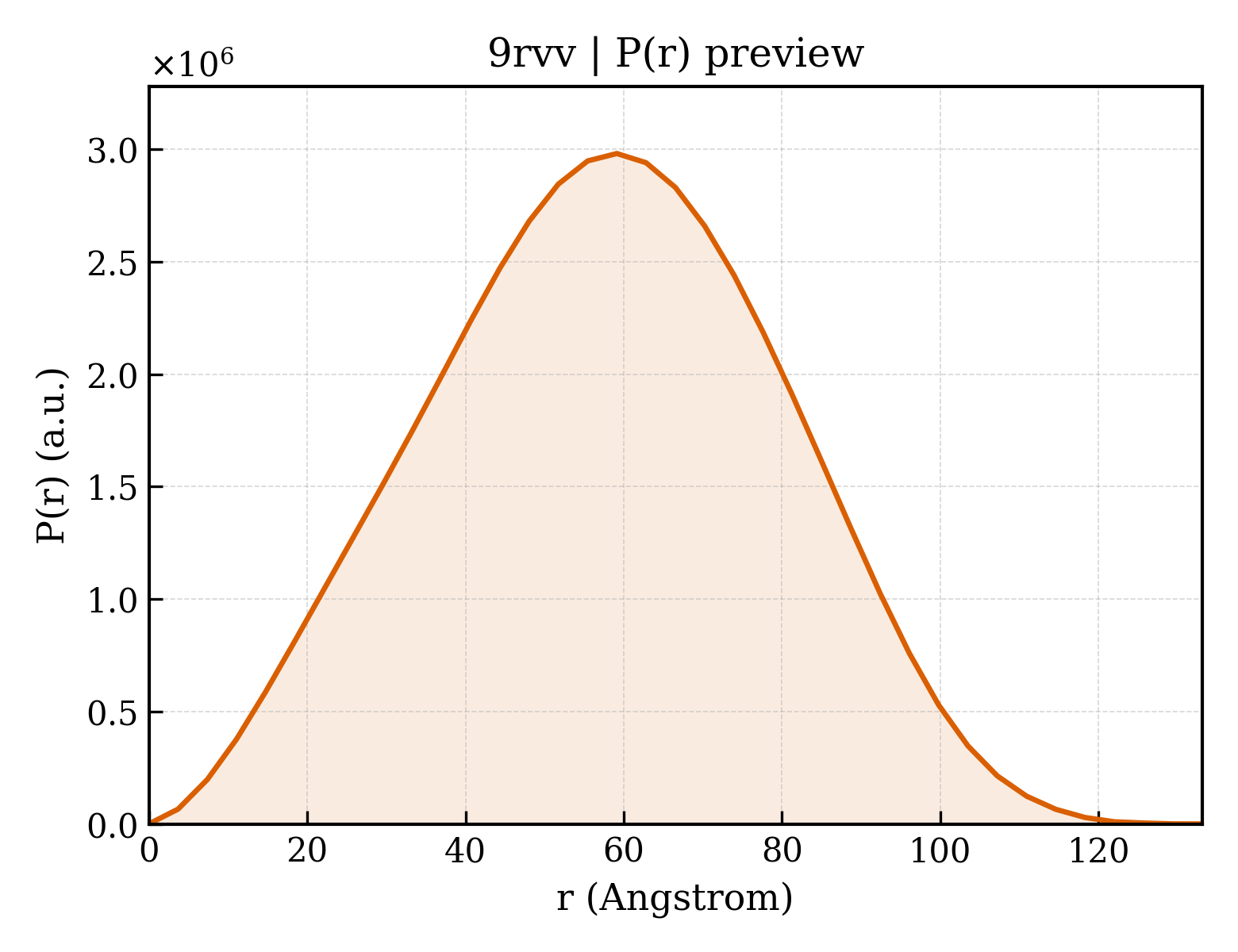

P(r) Distribution

▼

1. Structure Basics

entry_id	9rvv
deposition_date	2025-07-09
title	Human TRPC5 in complex with (-) englerin A, partial occupancy (2EA:2LIP stoichiometry) state 2
keywords	TRPC5, (-) englerin A, agonist, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	44.00 Å
rg_electron	43.01 Å
i0	2172920000.00
molecular_weight	267550.0 kDa
excluded_volume	265300 Å³
envelope_volume	515000 Å³
shell_volume	94394 Å³
envelope_diameter	134.0 Å
shell_rg	52.54 Å
envelope_rg	41.84 Å
shape_rg	42.81 Å
total_rg	43.71 Å
total_atoms	20689
n_residues	2454
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.1 Å
rg_real	43.64 Å
rg_real_error	0.81 Å
i0_real	2.1730e+09
i0_real_error	3.2930e+07
rg_reciprocal	44.00 Å
i0_reciprocal	2174000000.0000
total_estimate	0.8884
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	59.1 Å
skewness	-0.004
kurtosis	-0.500
angular_range	— – 0.1800 Å⁻¹
current_alpha	0.0000
highest_alpha	143600000.0000
n_real_points	37
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.897; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.946; Smooth: 0.909

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Short transient receptor potential channel 5
formula_weight	89009.8 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	20689

MAQLYYKKVNYSPYRDRIPLQIVRAETELSAEEKAFLNAVEKGDYATVKQALQEAEIYYNVNINCMDPLGRSALLIAIENENLEIMELLLNHSVYVGDALLYAIRKEVVGAVELLLSYRRPSGEKQVPTLMMDTQFSEFTPDITPIMLAAHTNNYEIIKLLVQKRVTIPRPHQIRCNCVECVSSSEVDSLRHSRSRLNIYKALASPSLIALSSEDPILTAFRLGWELKELSKVENEFKAEYEELSQQCKLFAKDLLDQARSSRELEIILNHRDDHSEELDPQKYHDLAKLKVAIKYHQKEFVAQPNCQQLLATLWYDGFPGWRRKHWVVKLLTCMTIGFLFPMLSIAYLISPRSNLGLFIKKPFIKFICHTASYLTFLFMLLLASQHIVRTDLHVQGPPPTVVEWMILPWVLGFIWGEIKEMWDGGFTEYIHDWWNLMDFAMNSLYLATISLKIMAYVKYNGSRPREEWEMWHPTLIAEALFAISNILSSLRLISLFTANSHLGPLQISLGRMLLDILKFLFIYCLVLLAFANGLNQLYFYYETRAIDEPNNCKGIRCEKQNNAFSTLFETLQSLFWSVFGLLNLYVTNVKARHEFTEFVGATMFGTYNVISLVVLLNMLIAMMNNSYQLIADHADIEWKFARTKLWMSYFDEGGTLPPPFNIIPSPKSFLYLGNWFNNTFCPKRDPDGRRRRRNLRSFTERNADSLIQNQHYQEVIRNLVKRYVAAMIRNSKTHEGLTEENFKELKQDISSFRYEVLDLLGNRK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	CHOLESTEROL HEMISUCCINATE
formula_weight	486.7 kDa
src_method	syn
entity_count	4

Entity 4 non-polymer

description	(-)-englerin A
formula_weight	442.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	4

Entity 6 non-polymer

description	(2S)-2-(hexadecanoyloxy)-3-hydroxypropyl (9Z)-octadec-9-enoate
formula_weight	594.9 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.000 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.00 Å
resolution_method	—
num_particles	57236
