SAXSdb — 9rw6

▼

1. Structure Basics

entry_id	9rw6
deposition_date	2025-07-09
title	Egalitarian-BicD in complex with ILS of I-factor mRNA (Structure A)
keywords	Complex, Transport, Localization, RNA BINDING PROTEIN; RNA BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.14 Å
rg_electron	41.20 Å
i0	293758000.00
molecular_weight	112720.0 kDa
excluded_volume	129650 Å³
envelope_volume	199410 Å³
shell_volume	43571 Å³
envelope_diameter	146.6 Å
shell_rg	42.79 Å
envelope_rg	40.11 Å
shape_rg	41.17 Å
total_rg	41.36 Å
total_atoms	7760
n_residues	818
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	141.0 Å
rg_real	41.33 Å
rg_real_error	1.32 Å
i0_real	2.9380e+08
i0_real_error	5.1640e+06
rg_reciprocal	41.14 Å
i0_reciprocal	293700000.0000
total_estimate	0.8697
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	48.2 Å
skewness	0.416
kurtosis	-0.422
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0001
highest_alpha	13430000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.859; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.807

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Protein bicaudal D
formula_weight	89073.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7760

MSSASNNGPSADQSVQDLQMEVERLTRELDQVSSASAQSAQYGLSLLEEKSALQQKCEELETLYDNTRHELDITQEALTKFQTSQKVTNKTGIEQEDALLNESAARETSLNLQIFDLENELKQLRHELERVRNERDRMLQENSDFGRDKSDSEADRLRLKSELKDLKFRETRMLSEYSELEEENISLQKQVSSLRSSQVEFEGAKHEIRRLTEEVELLNQQVDELANLKKIAEKQMEEALETLQGEREAKYALKKELDGHLNRESMYHISNLAYSIRSNMEDNASNNSDGEEENLALKRLEADLSTELKSPDGTKCDLFSEIHLNELKKLEKQLESMESEKTHLTANLREAQTSLDKSQNELQNFMSRLALLAAHVDALVQLKKQIDVKEQGKEGGQKKDELEQQLRALISQYANWFTLSAKEIDGLKTDIAELQKGLNYTDATTTLRNEVTNLKNKLLATEQKSLDLQSDVQTLTHISQNAGQSLGSARSTLVALSDDLAQLYHLVCTVNGETPTRVLLDHKTDDMSFENDSLTAIQSQFKSDVFIAKPQIVEDLQGLADSVEIKKYVDTVSDQIKYLKTAVEHTIDMNKHKIRSEGGDALEKVNTEEMEELQEQIVKLKSLLSVKREQIGTLRNVLKSNKQTAEVALTNLKSKYENEKIIVSDTMSKLRNELRLLKEDAATFSSLRAMFAARCEEYVTQVDDLNRQLEAAEEEKKTLNQLLRLAVQQKLALTQRLEEMEMDREMRHVRRPMPAQRGTSGKSSFSTRPSSRNPASSNANPF

Source

organism	Drosophila melanogaster
common_name	fruit fly
ncbi_taxonomy_id	7227
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	ILS
formula_weight	19076.3 kDa
src_method	syn
entity_count	2

Polymer

type	polyribonucleotide
strand_id	E,F

AAUGCACACCUCCCUCGUCACUCUUGAUUUUUCAAGAGCCUUCGAUCGAGUAGGUGUGCA

Entity 3 polymer

description	Egalitarian, isoform B
formula_weight	113198.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,C

MESMEYEMARNMTLLFFLERLLDKGEPRTVHDLSCQFGNKEFTKEMRQIAGGSQSGLKKFLAQYPAIFLVDGDYVQVNAYQHHNADDGGCGGKRDYIQEAKDYFKNKMLQYGAAAEVPVRSLLGHRSQASPQVRHISGQHIKEFTDFLMKHTDTFKVTDDYVMLVGCENMTDLPARDRLHLPQSNIDTRGTQQMLDFFAQCIEVKGPLLVDQLFHLLTTNFPQDQWLRMFKTPGDLSSFLKLFADCFHIQANLVTLLQKPKLSDTHIQQAQAQTREQFNALNNNNSASIRKQEPTPGGGGVGGVSSVQQRLQSPALRTNGHTNNNNGSNGSNNNNNNNNSIACPNFKLNAPVSNVMGGQSQGFGQPKSEPSSGFDSYVPMSELKLENLCENNYPSANTCYGPINNSSQQTQQVQTQQQQQPQHATQNPAEQRLNSVNQTLKQRINTLVIRTLAENLEKDKQSLANQQGGPISPHASPVHSIANSSSNQNAGSAANNANSNSNANPNNANHSPSHSYFVGDTWKIKVLQNTTVIANVKQSVFVTDIILKYAAKNESIVVSLDCEGINLGLKGEITLIEIGTTRGEAFLFDVQSCPAMVTDGGLKTVLEHDQVIKVIHDCRNDAANLYLQFGILLRNVFDTQAAHAILQYQESGKQVYKAKYISLNSLCEQYNAPCNPIKDQLKQIYRRDQKFWAKRPLTREMMLYAAGDVLVLIHDQLFGNLARQIKPENRALFSELCTEQILMQIKPNEVKIRKKQRKVSTEVSDLKQKLAQTSKSIVLSNREIRLLRYMDLTEDEKERLKGYYKVAKKLEKMESAGNPSKDQSDSEDEQEPNENDAFPSLDSVPSDNSLSGTFSPRFSSEPPSLTESMQMLEEILQNKSMDRIARIDKLEAILTTATSLPCEQIIASNSMQEQLGSSIATTENLQIIREKSKNIKNCNCQGERSVTPIMRTTDKRVVKLVDAESQTLSTGDVVITKIFFQDEHERAKEAALLSNSPAKRVSPTGSENLYFQ

Source

organism	Drosophila melanogaster
common_name	fruit fly
ncbi_taxonomy_id	7227
host_organism	Spodoptera frugiperda

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.400 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.40 Å
resolution_method	—
num_particles	360597

fit	/app/data/saxs_computation/rw/9rw6/9rw6.fit
pddf	/app/data/pr_computation/rw/9rw6/9rw6.pr.out
profile	/app/data/saxs_computation/rw/9rw6/9rw6.dat

Egalitarian-BicD in complex with ILS of I-factor mRNA (Structure A)

SAXS Profile

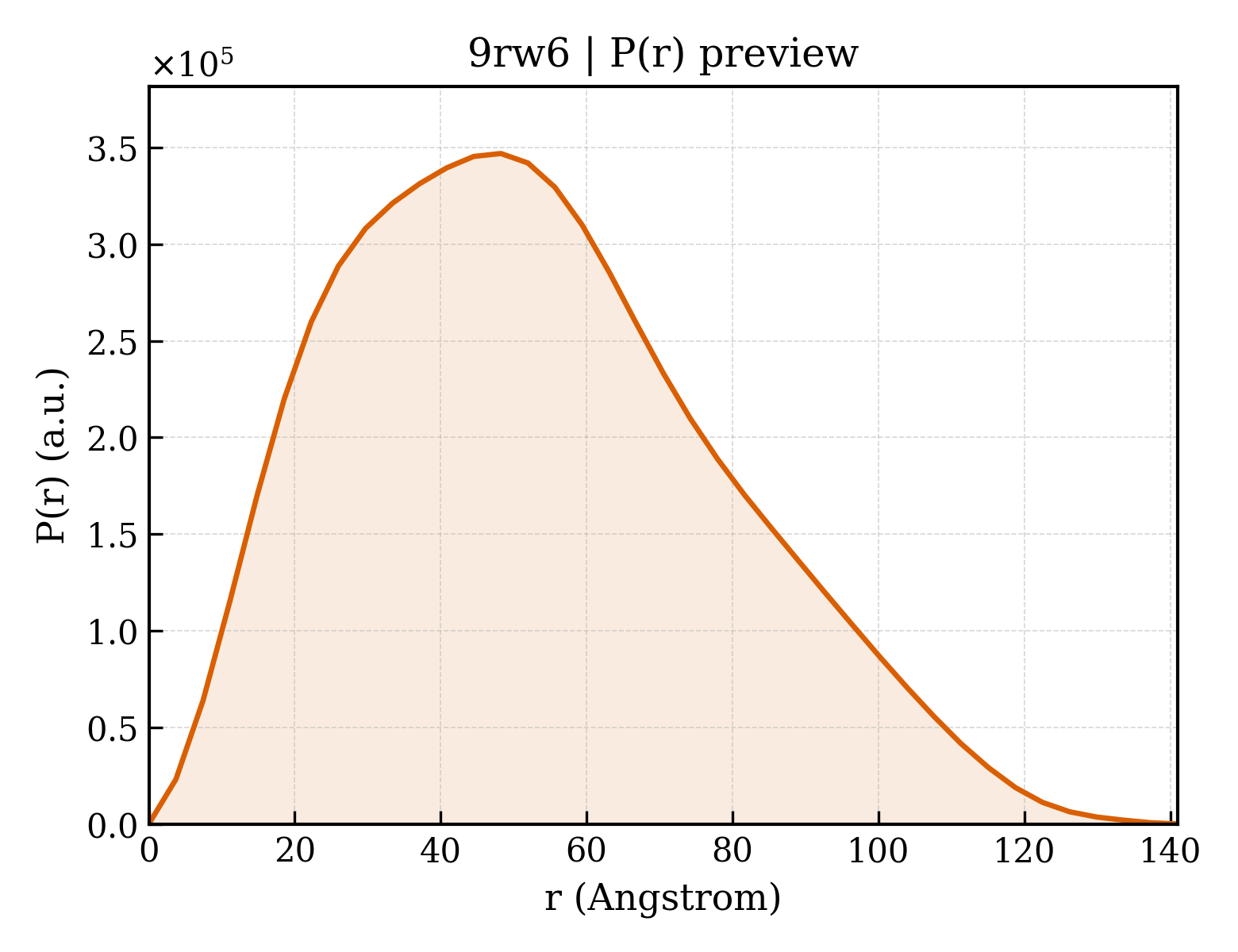

P(r) Distribution
