9s3h

Crystal structure of Cryptosporidium parvum Thioredoxin Reductase in complex with Auranofin

Method: X-RAY DIFFRACTION D_max: 82.5 Å Quality: EXCELLENT

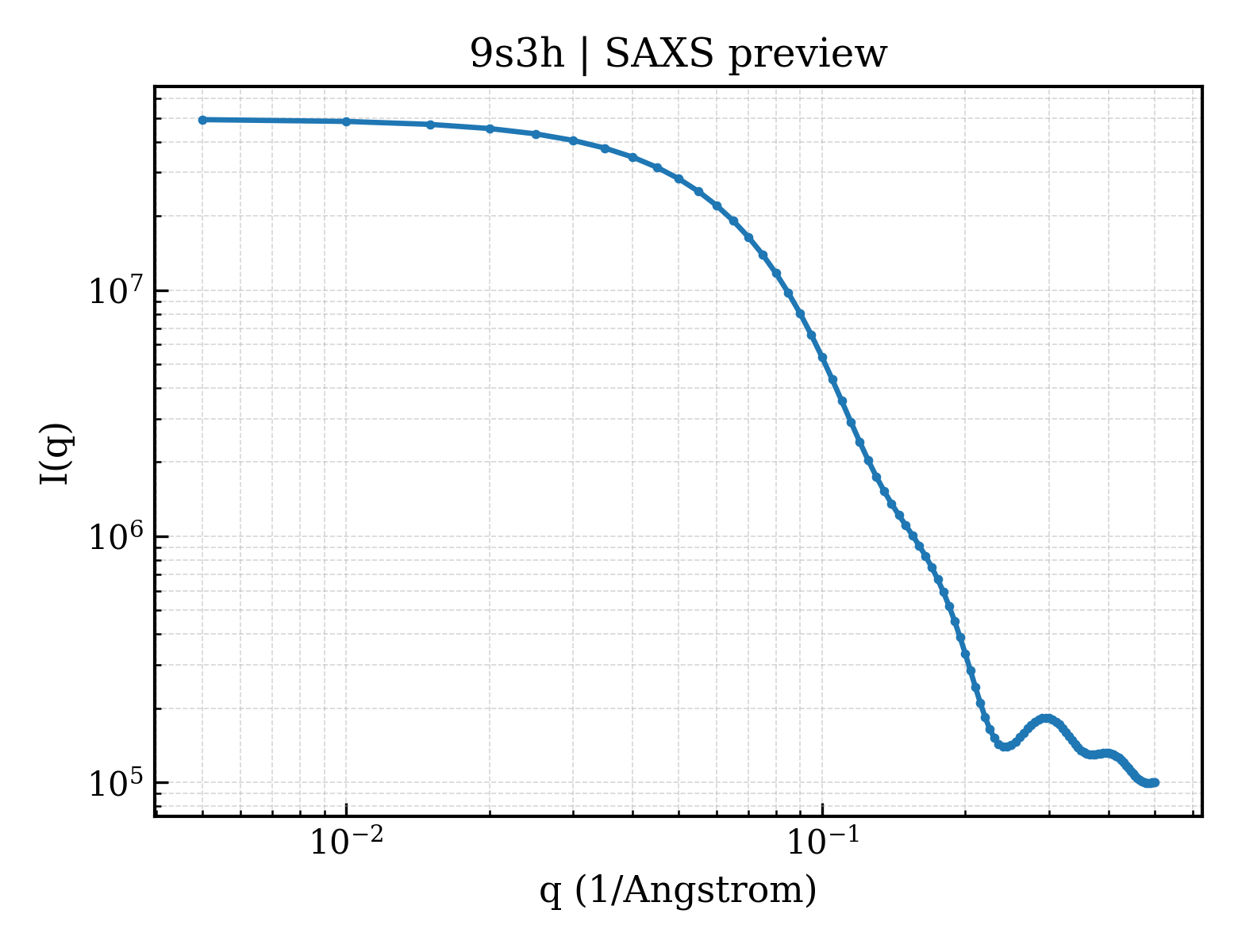

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9s3h
deposition_date	2025-07-24
title	Crystal structure of Cryptosporidium parvum Thioredoxin Reductase in complex with Auranofin
keywords	reductase, FLAVOPROTEIN; FLAVOPROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.80 Å
rg_electron	24.61 Å
i0	49471700.00
molecular_weight	54710.0 kDa
excluded_volume	68529 Å³
envelope_volume	85113 Å³
shell_volume	28558 Å³
envelope_diameter	88.3 Å
shell_rg	32.05 Å
envelope_rg	24.75 Å
shape_rg	24.57 Å
total_rg	25.59 Å
total_atoms	3838
n_residues	500
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.5 Å
rg_real	25.72 Å
rg_real_error	0.44 Å
i0_real	4.9470e+07
i0_real_error	6.8820e+05
rg_reciprocal	25.75 Å
i0_reciprocal	49470000.0000
total_estimate	0.9029
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	29.3 Å
skewness	0.220
kurtosis	-0.490
angular_range	— – 0.3100 Å⁻¹
current_alpha	0.0000
highest_alpha	10780000.0000
n_real_points	63
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.978

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Thioredoxin reductase
formula_weight	56300.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3856

MKFTLVTILFLIFMKKAKIVMADLTFMYDLVVIGGGSGGMAAAKEAAKYGKKVALFDFVKPSTQGTKWGLGGTCVNVGCVPKKLMHYSALIASSIHHDAQMSGHKTSSSFEWGKLVETLRNHIRMLNFSYRTGLRVGNVEYINALAKLIDPHSVEYEDNGQKKTITSRYILLATGGRPSIPETVPGAIQYSITSDDIFFLSKSPGKTLVIGASYIGLETAGFLNELGFDTTVAMRSIPLRGFDRQCSEKIVEYMKATGTKFLVGVVPINIEKVNENIKVSFSDGSVEEFETVLYATGRNPDVKGLNLNAIGVEVSDSGKIIAPKDATSVPSIFAVGDIVEGRPELTPVAVKAGILLARRLFAGSNEFIDYDFVPTTVFTPIEYGHVGLSSEAAIAKYGEDDIEEYLSEFSTLEIAAAHREKPEHLRENEMDFALPLNCLAKLVVVKSQGEKVVGFHFVGPNAGEITQGFSLAVKLGATKKDFDDMIGIHPTDAEVFGILEVTKRSGESFVSSGGCGGGKCG

Source

organism	Cryptosporidium parvum
ncbi_taxonomy_id	5807
host_organism	Escherichia coli

Entity 2 non-polymer

description	FLAVIN-ADENINE DINUCLEOTIDE
formula_weight	785.5 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GOLD ION
formula_weight	197.0 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	72.523 Å
length_b	72.523 Å
length_c	184.714 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	3.280 Å
resolution_low	46.980 Å
r_factor	0.2399
r_work	0.2367
r_free	0.2963

fit	/app/data/saxs_computation/s3/9s3h/9s3h.fit
pddf	/app/data/pr_computation/s3/9s3h/9s3h.pr.out
profile	/app/data/saxs_computation/s3/9s3h/9s3h.dat
