SAXSdb — 9s4v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Acetoin utilization protein AcuB

Bacillus subtilis subsp. subtilis str. 168

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ADENOSINE-5'-DIPHOSPHATE × 2 ADENOSINE MONOPHOSPHATE × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	ADENOSINE-5'-DIPHOSPHATE × 2 ADENOSINE MONOPHOSPHATE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACUB_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–215； UniProt 1–214 Author chain B； PDBConstruct 2–215； UniProt 1–214 Author chain C； PDBConstruct 2–215； UniProt 1–214

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9s4v
Deposition date deposition_date	2025-07-28
Structure title title	AcuB from Bacillus subtilis with AMP and ADP
Keywords keywords	Repressor, adenine nucleotide, DNA BINDING PROTEIN, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9s4v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9s4v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

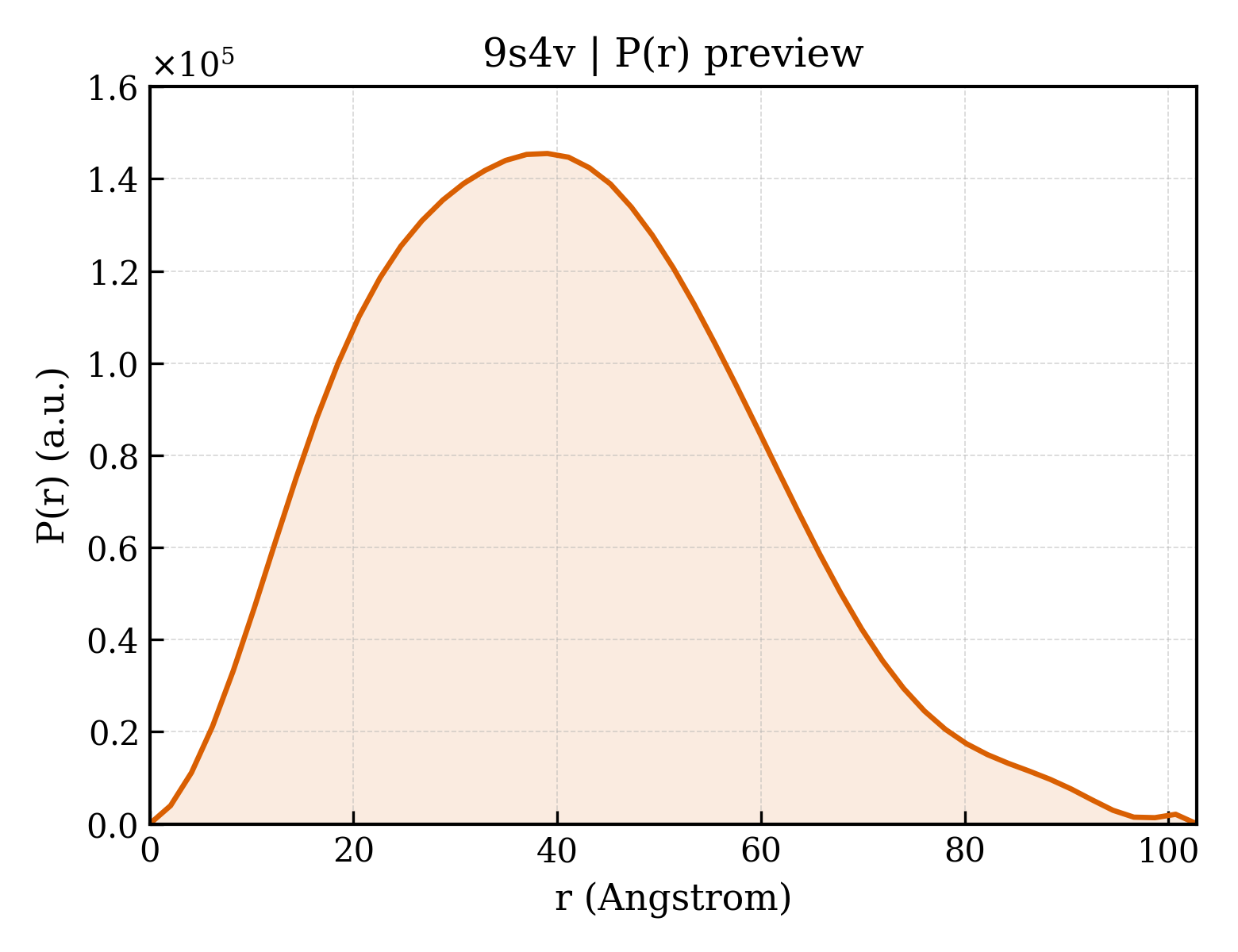

9s4v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.81 Å
Rg (electron density)	24.95 Å
Total Rg	25.68 Å
Atom count	7285
Residues	439
Excluded volume	64400 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9s4v__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9s4v__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Acetoin utilization protein AcuB
Molecular weight formula_weight	25504.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	10661

GMIVEQIMKRDVITLTKTDTLETAICKLKEFHIRHLPVVDEERHVIGMITDRDMKQASPSIFEENKRSLFLTRSVDSIMKKDVVCAHPLDFVEEISAVFYEHGIGCLPVVHHQKLIGILTKTDLLRTFVKLTGADQPGSQIEIKVNDITKSLAEISSLCQDLQVKILSVLVYPHDDPGVKVLVFRVKTMNPLPFLQALQRNGHHVVWPSEQRDLLGSSHHHHHH

Source Source

Source organism organism	Bacillus subtilis subsp. subtilis str. 168
NCBI taxonomy ID ncbi_taxonomy_id	224308
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE MONOPHOSPHATE
Molecular weight formula_weight	347.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▶

Unit-cell length a length_a	67.305 Å
Unit-cell length b length_b	79.779 Å
Unit-cell length c length_c	153.788 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.640 Å
Low-resolution limit resolution_low	48.790 Å
R factor r_factor	—
R_work r_work	0.2067
R_free r_free	0.2664
