9s6a

Crystal structure of Arabidopsis thaliana FUT11 complexed to GDP and G0

Method: X-RAY DIFFRACTION D_max: 83.4 Å Quality: GOOD

SAXS Profile

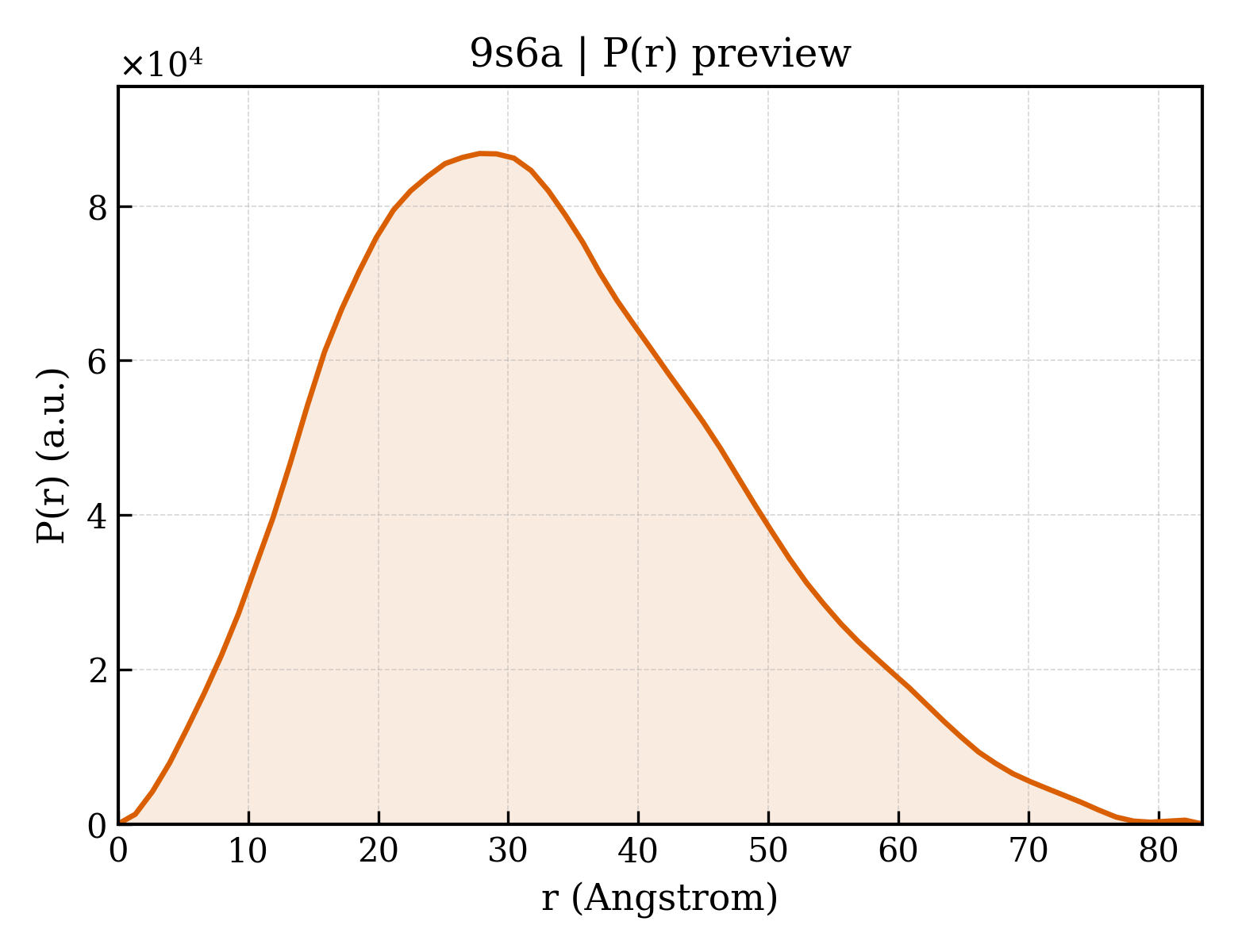

P(r) Distribution

▼

1. Structure Basics

entry_id	9s6a
deposition_date	2025-07-31
title	Crystal structure of Arabidopsis thaliana FUT11 complexed to GDP and G0
keywords	Fucosyltransferase, N-glycans, plants, Core-fucosylation, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.10 Å
rg_electron	24.24 Å
i0	40377300.00
molecular_weight	48407.0 kDa
excluded_volume	60316 Å³
envelope_volume	73038 Å³
shell_volume	25761 Å³
envelope_diameter	84.8 Å
shell_rg	31.01 Å
envelope_rg	24.53 Å
shape_rg	24.20 Å
total_rg	25.14 Å
total_atoms	3398
n_residues	410
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	83.4 Å
rg_real	25.15 Å
rg_real_error	0.66 Å
i0_real	4.0380e+07
i0_real_error	5.4620e+05
rg_reciprocal	25.13 Å
i0_reciprocal	40380000.0000
total_estimate	0.8789
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	27.8 Å
skewness	0.425
kurtosis	-0.284
angular_range	— – 0.3150 Å⁻¹
current_alpha	0.0000
highest_alpha	8901000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.840; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.975

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Glycoprotein 3-alpha-L-fucosyltransferase A
formula_weight	47088.6 kDa
ec_number	2.4.1.214
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3714

IEKCQEWLERVDSVTYSRDFTKDPIFISGSNKDFKSCSVDCVMGFTSDKKPDAAFGLSHQPGTLSIIRSMESAQYYQENNLAQARRKGYDIVMTTSLSSDVPVGYFSWAEYDIMAPVQPKTEKALAAAFISNCAARNFRLQALEALMKTNVKIDSYGGCHRNRDGSVEKVEALKHYKFSLAFENTNEEDYVTEKFFQSLVAGSVPVVVGAPNIEEFAPSPDSFLHIKQMDDVKAVAKKMKYLADNPDAYNQTLRWKHEGPSDSFKALIDMAAVHSSCRLCIFVATRIREQEEKSPEFKRRPCKCTRGSETVYHLYVRERGRFDMESIFLKDGNLTLEALESAVLAKFMSLRYEPIWKKERPASLRGDGKLRVHGIYPIGLTQRQALYNFKFEGNSSLSTHIQRNPCPKFEVVFV

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Homo sapiens

Entity 2 branched

description	;2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
formula_weight	1317.2 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GUANOSINE-5'-DIPHOSPHATE
formula_weight	443.2 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	281

▶

6. Citations (1)

▶

length_a	77.663 Å
length_b	41.150 Å
length_c	82.425 Å
angle_alpha	90.00 °
angle_beta	96.89 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	1.410 Å
resolution_low	19.960 Å
r_factor	0.2058
r_work	0.2049
r_free	0.2284

fit	/app/data/saxs_computation/s6/9s6a/9s6a.fit
pddf	/app/data/pr_computation/s6/9s6a/9s6a.pr.out
profile	/app/data/saxs_computation/s6/9s6a/9s6a.dat
