9s9k
S. islandicus CdvB (semi open)

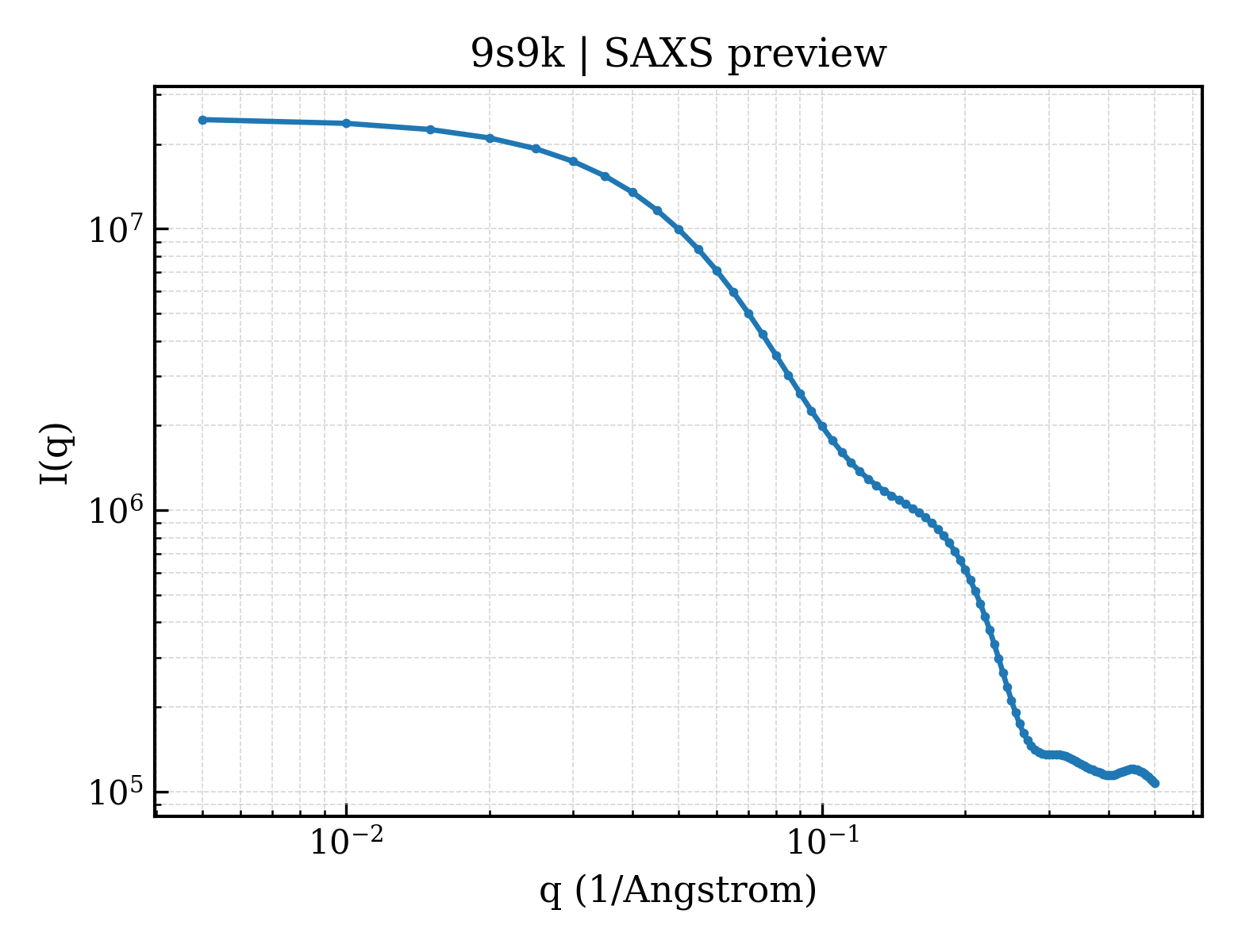

SAXS Profile

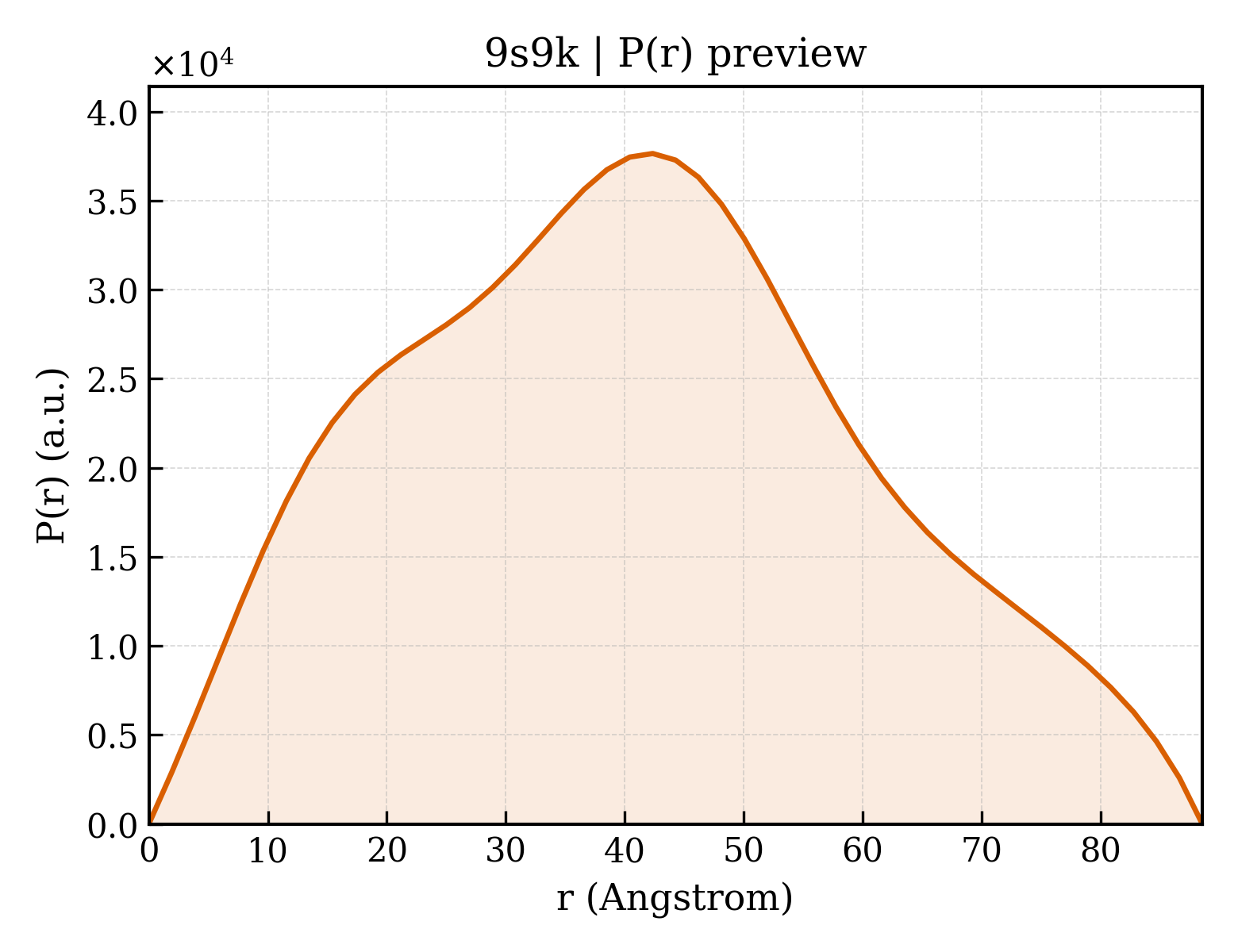

P(r) Distribution
1. Structure Basics
| entry_id | 9s9k |
| deposition_date | 2025-08-06 |
| last_revision | 2026-01-28 |
| title | S. islandicus CdvB (semi open) |
| keywords | cell division, archaea, CELL CYCLE; CELL CYCLE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.43 Å |
| rg_electron | 34.32 Å |
| i0 | 24687300.00 |
| molecular_weight | 39585.0 kDa |
| excluded_volume | 50232 ų |
| envelope_volume | 85525 ų |
| shell_volume | 22759 ų |
| envelope_diameter | 160.8 Å |
| shell_rg | 36.13 Å |
| envelope_rg | 36.14 Å |
| shape_rg | 34.33 Å |
| total_rg | 34.48 Å |
| total_atoms | 2771 |
| n_residues | 348 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 88.5 Å |
| rg_real | 31.86 Å |
| rg_real_error | 0.21 Å |
| i0_real | 2.3520e+07 |
| i0_real_error | 2.8820e+05 |
| rg_reciprocal | 34.61 Å |
| i0_reciprocal | 24680000.0000 |
| total_estimate | 0.6843 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 42.4 Å |
| skewness | 0.184 |
| kurtosis | -0.639 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 1.1780 |
| highest_alpha | 817300.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.005; Oscil: 1.000; Stabil: 0.988; Sysdev: 0.000; Positv: 1.000; Valcen: 0.932; Smooth: 0.000 |
