SAXSdb — 9sai

▼

1. Structure Basics

entry_id	9sai
deposition_date	2025-08-07
last_revision	2025-10-29
title	Ternary PROTAC-mediated complex consisting of Cereblon, DDB1 and BRD4-BD1, non-covalently linked by JQ1-AcN
keywords	ternary complex, PROTAC, cereblon, LIGASE; LIGASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.47 Å
rg_electron	39.52 Å
i0	661613000.00
molecular_weight	139710.0 kDa
excluded_volume	135160 Å³
envelope_volume	252610 Å³
shell_volume	55043 Å³
envelope_diameter	143.4 Å
shell_rg	43.48 Å
envelope_rg	39.38 Å
shape_rg	39.51 Å
total_rg	39.73 Å
total_atoms	10559
n_residues	1318
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	139.1 Å
rg_real	39.79 Å
rg_real_error	1.53 Å
i0_real	6.6160e+08
i0_real_error	1.2470e+07
rg_reciprocal	39.59 Å
i0_reciprocal	661500000.0000
total_estimate	0.8326
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	41.7 Å
skewness	0.580
kurtosis	-0.019
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	74510000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.723; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.921; Smooth: 0.730

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Protein cereblon
formula_weight	50559.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B
atom_count	10559

SAGEGDQQDAAHNMGNHLPLLPAESEEEDEMEVEDQDSKEAKKPNIINFDTSLPTSHTYLGADMEEFHGRTLHDDDSCQVIPVLPQVMMILIPGQTLPLQLFHPQEVSMVRNLIQKDRTFAVLAYSNVQEREAQFGTTAEIYAYREEQDFGIEIVKVKAIGRQRFKVLELRTQSDGIQQAKVQILPECVLPSTMSAVQLESLNKCQIFPSKPVSREDQCSYKWWQKYQKRKFHCANLTSWPRWLYSLYDAETLMDRIKKQLREWDENLKDDSLPSNPIDFSYRVAACLPIDDVLRIQLLKIGSAIQRLRCELDIMNKCTSLCCKQCQETEITTKNEIFSLSLCGPMAAYVNPHGYVHETLTVYKACNLNLIGRPSTEHSWFPGYAWTVAQCKICASHIGWKFTATKKDMSPQKFWGLTRSALLPTIPDTEDEISPDKVILCL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	unidentified baculovirus

Entity 2 polymer

description	DNA damage-binding protein 1
formula_weight	93347.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGGNGNSGEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	unidentified baculovirus

Entity 3 polymer

description	Bromodomain-containing protein 4
formula_weight	15099.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

SMNPPPPETSNPNKPKRQTNQLQYLLRVVLKTLWKHQFAWPFQQPVDAVKLNLPDYYKIIKTPMDMGTIKKRLENNYYWNAQECIQDFNTMFTNCYIYNKPGDDIVLMAEALEKLFLQKINELPTEE

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	;N-[(2S)-1-[[(3S)-2,5-bis(oxidanylidene)pyrrolidin-3-yl]amino]-1-oxidanylidene-propan-2-yl]-9-[2-[(9S)-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoylamino]nonanamide ;
formula_weight	723.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.660 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.66 Å
resolution_method	—
num_particles	184507

fit	/app/data/saxs_computation/sa/9sai/9sai.fit
pddf	/app/data/pr_computation/sa/9sai/9sai.pr.out
profile	/app/data/saxs_computation/sa/9sai/9sai.dat

Ternary PROTAC-mediated complex consisting of Cereblon, DDB1 and BRD4-BD1, non-covalently linked by JQ1-AcN

SAXS Profile

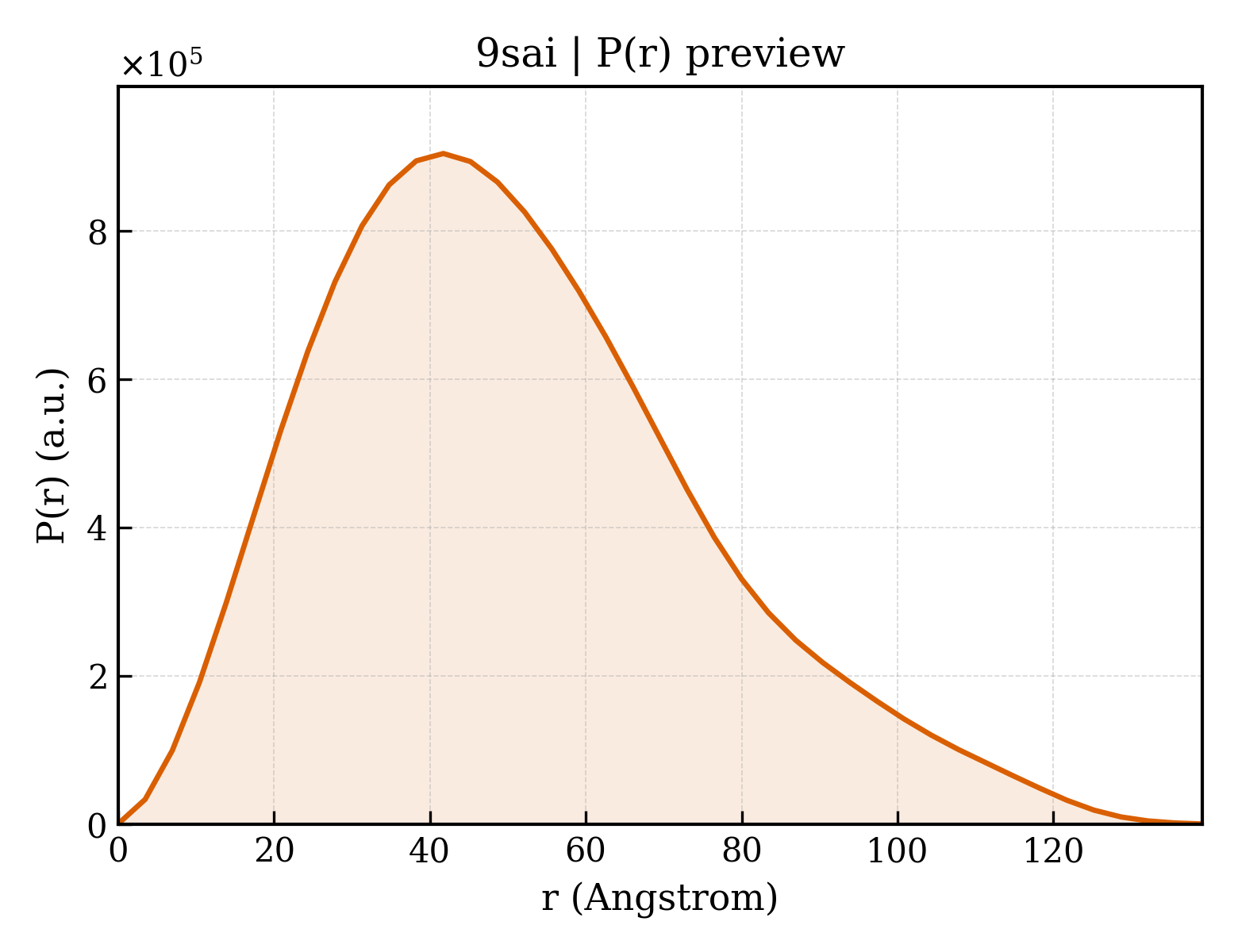

P(r) Distribution
