9sff

E. coli cytochrome bd-I monomer

Method: ELECTRON MICROSCOPY D_max: 92.9 Å Quality: EXCELLENT

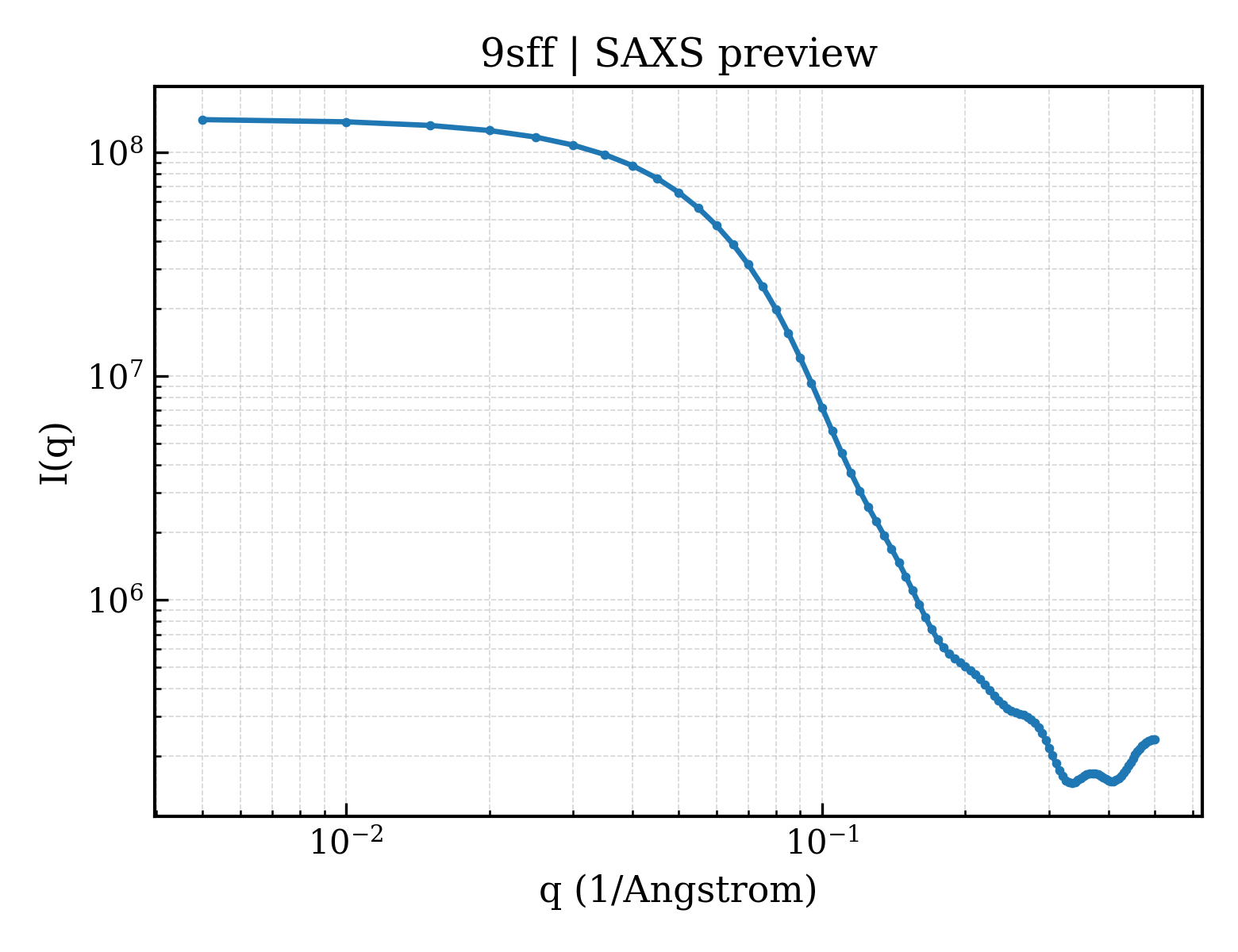

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9sff
deposition_date	2025-08-19
title	E. coli cytochrome bd-I monomer
keywords	Membrane protein, Complex, Oxireductase, OXIDOREDUCTASE; OXIDOREDUCTASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	29.95 Å
rg_electron	28.53 Å
i0	140581000.00
molecular_weight	105780.0 kDa
excluded_volume	136920 Å³
envelope_volume	156030 Å³
shell_volume	43691 Å³
envelope_diameter	97.3 Å
shell_rg	37.47 Å
envelope_rg	28.77 Å
shape_rg	28.51 Å
total_rg	29.50 Å
total_atoms	14991
n_residues	894
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	92.9 Å
rg_real	29.84 Å
rg_real_error	0.43 Å
i0_real	1.4060e+08
i0_real_error	1.7630e+06
rg_reciprocal	29.89 Å
i0_reciprocal	140600000.0000
total_estimate	0.9055
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	35.0 Å
skewness	0.224
kurtosis	-0.503
angular_range	— – 0.2650 Å⁻¹
current_alpha	0.0001
highest_alpha	30970000.0000
n_real_points	54
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.943; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.943

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	Cytochrome bd-I ubiquinol oxidase subunit 1
formula_weight	58251.7 kDa
ec_number	7.1.1.7
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	15023

MLDIVELSRLQFALTAMYHFLFVPLTLGMAFLLAIMETVYVLSGKQIYKDMTKFWGKLFGINFALGVATGLTMEFQFGTNWSYYSHYVGDIFGAPLAIEGLMAFFLESTFVGLFFFGWDRLGKVQHMCVTWLVALGSNLSALWILVANGWMQNPIASDFNFETMRMEMVSFSELVLNPVAQVKFVHTVASGYVTGAMFILGISAWYMLKGRDFAFAKRSFAIAASFGMAAVLSVIVLGDESGYEMGDVQKTKLAAIEAEWETQPAPAAFTLFGIPDQEEETNKFAIQIPYALGIIATRSVDTPVIGLKELMVQHEERIRNGMKAYSLLEQLRSGSTDQAVRDQFNSMKKDLGYGLLLKRYTPNVADATEAQIQQATKDSIPRVAPLYFAFRIMVACGFLLLAIIALSFWSVIRNRIGEKKWLLRAALYGIPLPWIAVEAGWFVAEYGRQPWAIGEVLPTAVANSSLTAGDLIFSMVLICGLYTLFLVAELFLMFKFARLGPSSLKTGRYHFEQSSTTTQPAR

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 2 polymer

description	Cytochrome bd-I ubiquinol oxidase subunit 2
formula_weight	42479.8 kDa
ec_number	7.1.1.7
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MIDYEVLRFIWWLLVGVLLIGFAVTDGFDMGVGMLTRFLGRNDTERRIMINSIAPHWDGNQVWLITAGGALFAAWPMVYAAAFSGFYVAMILVLASLFFRPVGFDYRSKIEETRWRNMWDWGIFIGSFVPPLVIGVAFGNLLQGVPFNVDEYLRLYYTGNFFQLLNPFGLLAGVVSVGMIITQGATYLQMRTVGELHLRTRATAQVAALVTLVCFALAGVWVMYGIDGYVVKSTMDHYAASNPLNKEVVREAGAWLVNFNNTPILWAIPALGVVLPLLTILTARMDKAAWAFVFSSLTLACIILTAGIAMFPFVMPSSTMMNASLTMWDATSSQLTLNVMTWVAVVLVPIILLYTAWCYWKMFGRITKEDIERNTHSLY

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 3 polymer

description	Cytochrome bd-I ubiquinol oxidase CydH (Uncharacterized protein YnhF)
formula_weight	2999.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MSTDLKFSLVTTIIVLGLIVAVGLTAALH

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 4 polymer

description	Cytochrome bd-I ubiquinol oxidase subunit X
formula_weight	4043.7 kDa
ec_number	7.1.1.7
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	X

MWYFAWILGTLLACSFGVITALALEHVESGKAGQEDI

Source

organism	Escherichia coli K-12
ncbi_taxonomy_id	83333
host_organism	Escherichia coli

Entity 5 non-polymer

description	TRANS-HEME D HYDROXYCHLORIN GAMMA-SPIROLACTONE
formula_weight	636.5 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	2

Entity 7 non-polymer

description	2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE
formula_weight	648.9 kDa
src_method	syn
entity_count	3

Entity 8 non-polymer

description	OXYGEN MOLECULE
formula_weight	32.0 kDa
src_method	syn
entity_count	1

Entity 9 non-polymer

description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
formula_weight	760.1 kDa
src_method	syn
entity_count	2

Entity 10 non-polymer

description	MENAQUINONE-9
formula_weight	785.2 kDa
src_method	syn
entity_count	1

Entity 11 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	32

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.38 Å
resolution_method	—
num_particles	417969

fit	/app/data/saxs_computation/sf/9sff/9sff.fit
pddf	/app/data/pr_computation/sf/9sff/9sff.pr.out
profile	/app/data/saxs_computation/sf/9sff/9sff.dat
