SAXSdb — 9sfm

▼

1. Structure Basics

entry_id	9sfm
deposition_date	2025-08-19
title	Crystal structure of Cereblon-DDB1 in complex with SB-405483 and Lenalidomide
keywords	E3 ubiquitin ligase, substrate receptor, IMiDs (immunomodulatory drugs), Allosteric modulator, LIGASE; LIGASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.84 Å
rg_electron	39.83 Å
i0	833268000.00
molecular_weight	156870.0 kDa
excluded_volume	151580 Å³
envelope_volume	276080 Å³
shell_volume	59677 Å³
envelope_diameter	150.3 Å
shell_rg	43.68 Å
envelope_rg	39.77 Å
shape_rg	39.82 Å
total_rg	40.01 Å
total_atoms	11858
n_residues	1500
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	139.0 Å
rg_real	40.07 Å
rg_real_error	1.33 Å
i0_real	8.3330e+08
i0_real_error	1.5570e+07
rg_reciprocal	39.93 Å
i0_reciprocal	833100000.0000
total_estimate	0.8417
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	45.2 Å
skewness	0.541
kurtosis	0.084
angular_range	— – 0.2000 Å⁻¹
current_alpha	0.0000
highest_alpha	113700000.0000
n_real_points	41
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.689

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	DNA damage-binding protein 1
formula_weight	128139.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	12372

MSYNYVVTAQKPTAVNGCVTGHFTSAEDLNLLIAKNTRLEIYVVTAEGLRPVKEVGMYGKIAVMELFRPKGESKDLLFILTAKYNACILEYKQSGESIDIITRAHGNVQDRIGRPSETGIIGIIDPECRMIGLRLYDGLFKVIPLDRDNKELKAFNIRLEELHVIDVKFLYGCQAPTICFVYQDPQGRHVKTYEVSLREKEFNKGPWKQENVEAEASMVIAVPEPFGGAIIIGQESITYHNGDKYLAIAPPIIKQSTIVCHNRVDPNGSRYLLGDMEGRLFMLLLEKEEQMDGTVTLKDLRVELLGETSIAECLTYLDNGVVFVGSRLGDSQLVKLNVDSNEQGSYVVAMETFTNLGPIVDMCVVDLERQGQGQLVTCSGAFKEGSLRIIRNGIGIHEHASIDLPGIKGLWPLRSDPNRETDDTLVLSFVGQTRVLMLNGEEVEETELMGFVDDQQTFFCGNVAHQQLIQITSASVRLVSQEPKALVSEWKEPQAKNISVASCNSSQVVVAVGRALYYLQIHPQELRQISHTEMEHEVACLDITPLGDSNGLSPLCAIGLWTDISARILKLPSFELLHKEMLGGEIIPRSILMTTFESSHYLLCALGDGALFYFGLNIETGLLSDRKKVTLGTQPTVLRTFRSLSTTNVFACSDRPTVIYSSNHKLVFSNVNLKEVNYMCPLNSDGYPDSLALANNSTLTIGTIDEIQKLHIRTVPLYESPRKICYQEVSQCFGVLSSRIEVQDTSGGTTALRPSASTQALSSSVSSSKLFSSSTAPHETSFGEEVEVHNLLIIDQHTFEVLHAHQFLQNEYALSLVSCKLGKDPNTYFIVGTAMVYPEEAEPKQGRIVVFQYSDGKLQTVAEKEVKGAVYSMVEFNGKLLASINSTVRLYEWTTEKELRTECNHYNNIMALYLKTKGDFILVGDLMRSVLLLAYKPMEGNFEEIARDFNPNWMSAVEILDDDNFLGAENAFNLFVCQKDSAATTDEERQHLQEVGLFHLGEFVNVFCHGSLVMQNLGETSTPTQGSVLFGTVNGMIGLVTSLSESWYNLLLDMQNRLNKVIKSVGKIEHSFWRSFHTERKTEPATGFIDGDLIESFLDISRPKMQEVVANLQYDDGSGMKREATADDLIKVVEELTRIHWSHPQFEK

Source

organism	Homo sapiens
common_name	Human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Protein cereblon
formula_weight	43978.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

IINFDTSLPTSHTYLGADMEEFHGRTLHDDDSCQVIPVLPQVMMILIPGQTLPLQLFHPQEVSMVRNLIQKDRTFAVLAYSNVQEREAQFGTTAEIYAYREEQDFGIEIVKVKAIGRQRFKVLELRTQSDGIQQAKVQILPECVLPSTMSAVQLESLNKCQIFPSKPVSREDQCSYKWWQKYQKRKFHCANLTSWPRWLYSLYDAETLMDRIKKQLREWDENLKDDSLPSNPIDFSYRVAACLPIDDVLRIQLLKIGSAIQRLRCELDIMNKCTSLCCKQCQETEITTKNEIFSLSLCGPMAAYVNPHGYVHETLTVYKACNLNLIGRPSTEHSWFPGYAWTVAQCKICASHIGWKFTATKKDMSPQKFWGLTRSALLPTIP

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	6

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	S-Lenalidomide
formula_weight	259.3 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	N-[3-(benzyloxy)pyridin-2-yl]-N'-(4-cyano-2-hydroxyphenyl)urea
formula_weight	360.4 kDa
src_method	syn
entity_count	1

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	450

▶

6. Citations (1)

▶

length_a	72.160 Å
length_b	129.518 Å
length_c	198.797 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

space_group	P 21 21 21
int_tables_number	19
crystal_system	—

resolution	2.390 Å
resolution_low	99.400 Å
r_factor	0.1970
r_work	0.1945
r_free	0.2441

fit	/app/data/saxs_computation/sf/9sfm/9sfm.fit
pddf	/app/data/pr_computation/sf/9sfm/9sfm.pr.out
profile	/app/data/saxs_computation/sf/9sfm/9sfm.dat

Crystal structure of Cereblon-DDB1 in complex with SB-405483 and Lenalidomide

SAXS Profile

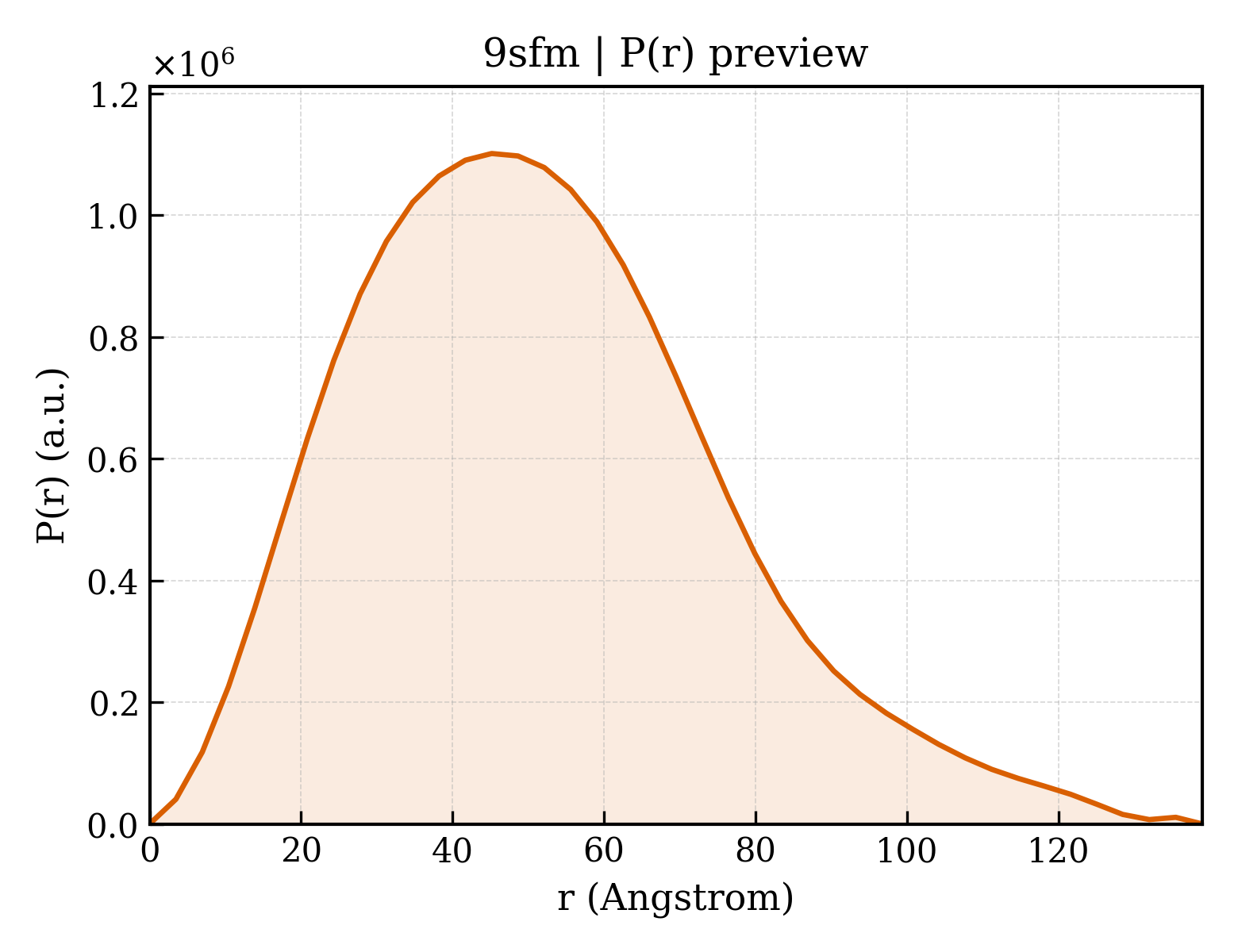

P(r) Distribution
