9sih

XFEL structure of Ribonucleotide reductase R2a Y122F mutant from E. coli,reduced form

Method: X-RAY DIFFRACTION D_max: 84.3 Å Quality: EXCELLENT

SAXS Profile

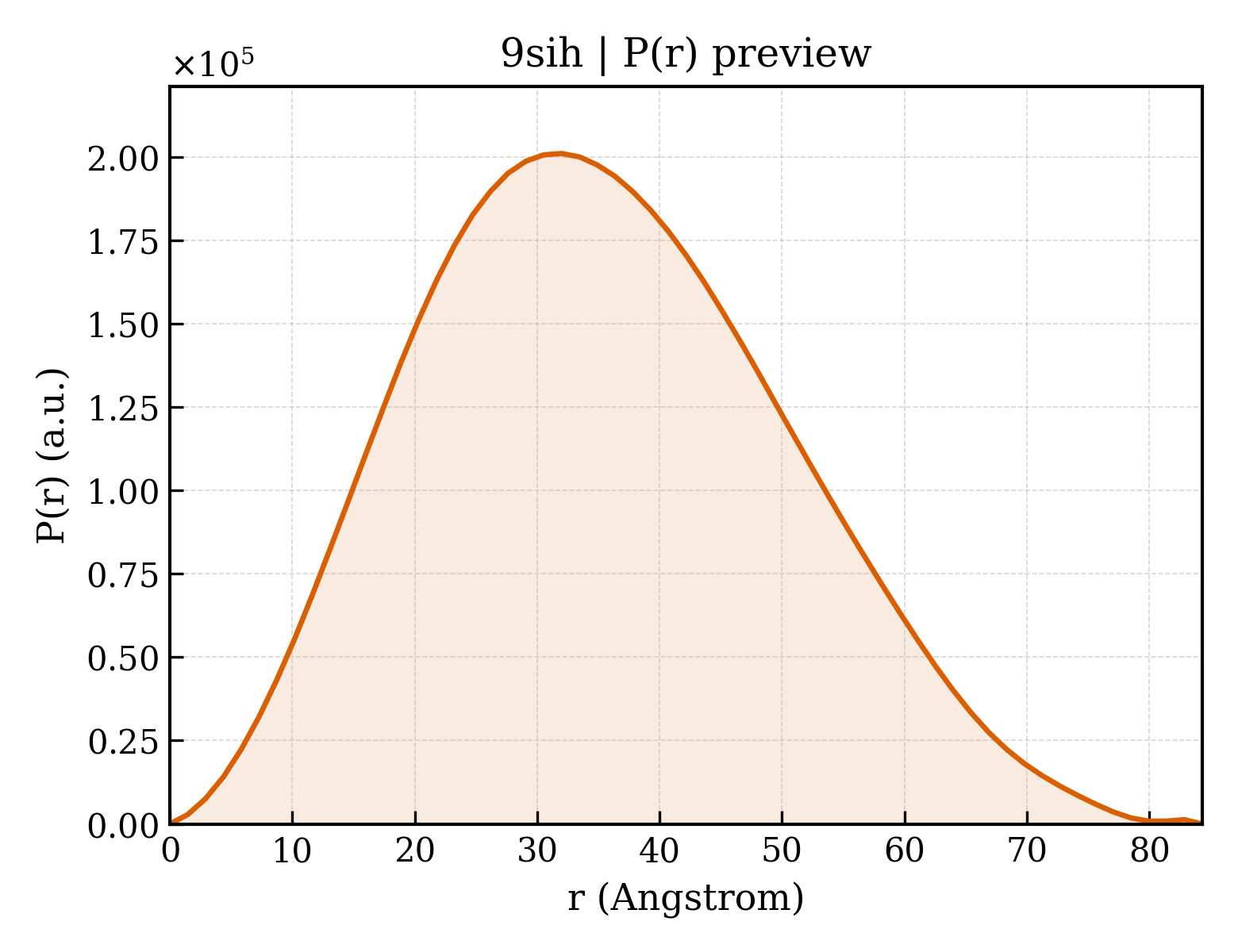

P(r) Distribution

▼

1. Structure Basics

entry_id	9sih
deposition_date	2025-08-28
title	XFEL structure of Ribonucleotide reductase R2a Y122F mutant from E. coli,reduced form
keywords	Ribonucleotide reductase beta subunit, R2a, Di-iron beta subunit, Reduced R2a, XFEL structure, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.19 Å
rg_electron	26.00 Å
i0	98881600.00
molecular_weight	79294.0 kDa
excluded_volume	99476 Å³
envelope_volume	113780 Å³
shell_volume	35620 Å³
envelope_diameter	88.2 Å
shell_rg	34.49 Å
envelope_rg	26.20 Å
shape_rg	25.99 Å
total_rg	26.85 Å
total_atoms	5581
n_residues	681
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	84.3 Å
rg_real	27.09 Å
rg_real_error	0.50 Å
i0_real	9.8880e+07
i0_real_error	1.3880e+06
rg_reciprocal	27.13 Å
i0_reciprocal	98880000.0000
total_estimate	0.9023
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	32.0 Å
skewness	0.258
kurtosis	-0.438
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	27510000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.931

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Ribonucleoside-diphosphate reductase 1 subunit beta
formula_weight	43410.9 kDa
ec_number	1.17.4.1
mutation	Y122F
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	6068

AYTTFSQTKNDQLKEPMFFGQPVNVARYDQQKYDIFEKLIEKQLSFFWRPEEVDVSRDRIDYQALPEHEKHIFISNLKYQTLLDSIQGRSPNVALLPLISIPELETWVETWAFSETIHSRSFTHIIRNIVNDPSVVFDDIVTNEQIQKRAEGISSYYDELIEMTSYWHLLGEGTHTVNGKTVTVSLRELKKKLYLCLMSVNALEAIRFYVSFACSFAFAERELMEGNAKIIRLIARDEALHLTGTQHMLNLLRSGADDPEMAEIAEECKQECYDLFVQAAQQEKDWADYLFRDGSMIGLNKDILCQYVEYITNIRMQAVGLDLPFQTRSNPIPWINTWLVSDNVQVAPQEVEVSSYLVGQIDSEVDTDDLSNFQL

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 non-polymer

description	FE (II) ION
formula_weight	55.8 kDa
src_method	syn
entity_count	4

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	362

▶

6. Citations (1)

▶

length_a	74.182 Å
length_b	76.446 Å
length_c	146.265 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	1.700 Å
resolution_low	26.420 Å
r_factor	0.1587
r_work	0.1580
r_free	0.1905
