SAXSdb — 9sjp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transmembrane protein gp41,Y26L-covNHR

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	8-ANILINO-1-NAPHTHALENE SULFONATE × 2 SULFATE ION × 3 ANILINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ENV_HV1BR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–27； UniProt 643–668 Author chain A； PDBConstruct 31–83； UniProt 545–597 Author chain A； PDBConstruct 146–194； UniProt 549–597 Author chain B； PDBConstruct 2–27； UniProt 643–668 Author chain B； PDBConstruct 31–83； UniProt 545–597 Author chain B； PDBConstruct 146–194； UniProt 549–597

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9sjp
Deposition date deposition_date	2025-08-31
Last revision last_revision	2026-05-13
Structure title title	Single-chain chimeric protein mimicking the interaction between HR1 and HR2 in HIV gp41 bound to ANS
Keywords keywords	GP41, HIV-1, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9sjp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9sjp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

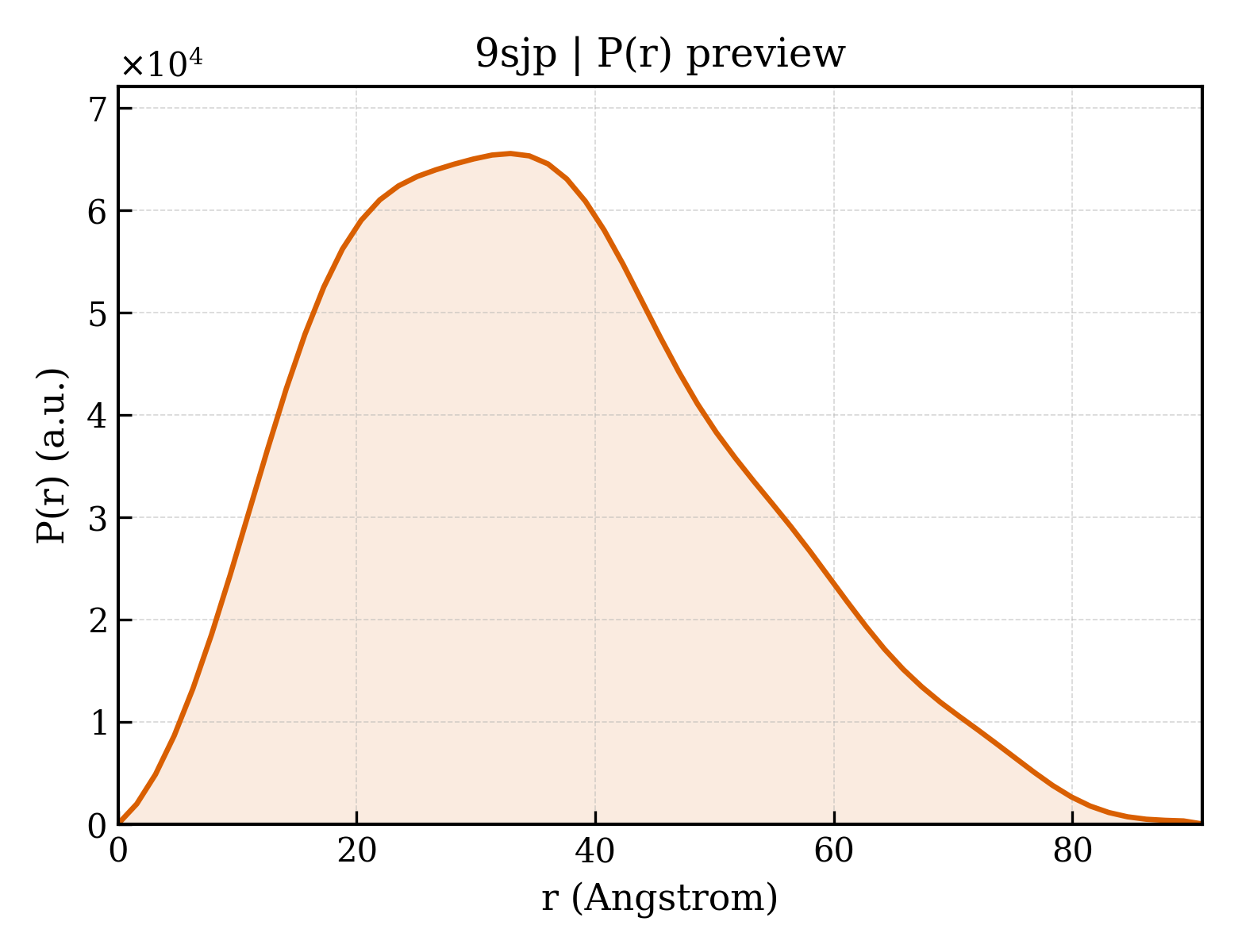

9sjp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.36 Å
Rg (electron density)	26.47 Å
Total Rg	27.08 Å
Atom count	6436
Residues	387
Excluded volume	56330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9sjp__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Transmembrane protein gp41,Y26L-covNHR
Molecular weight formula_weight	23678.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7079

MYTSLIHSLIEESQNQQEKNEQELLELGEGEARQELSGIVQKQNNLLRQIEAQQHLLQLTVSKIKQLQARILAVERYLKDQQLGKGNQPQQDKLYREVALIRAQLQKIESETLQLLHQQAEIERELNNQEQEIGSLKQRGLIDGPLLSGIDQQQNNLKRAIEAQKHLLQLTVWGIKQLQARILAVERYLKDQQLGGGGSHHHHHH

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	8-ANILINO-1-NAPHTHALENE SULFONATE
Molecular weight formula_weight	299.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	ANILINE
Molecular weight formula_weight	93.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	470

▶

Unit-cell length a length_a	47.500 Å
Unit-cell length b length_b	53.100 Å
Unit-cell length c length_c	58.000 Å
Unit-cell angle α angle_alpha	70.02 °
Unit-cell angle β angle_beta	69.93 °
Unit-cell angle γ angle_gamma	71.65 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	1.150 Å
Low-resolution limit resolution_low	19.470 Å
R factor r_factor	0.1508
R_work r_work	0.1497
R_free r_free	0.1727

Single-chain chimeric protein mimicking the interaction between HR1 and HR2 in HIV gp41 bound to ANS
